COMPACTING DUMPSTERS

6 Yard Front Load & Rear Load, Self-Contained Compactors


Dumpster Compactor



FRONT LOAD COMPACTING DUMPSTER





Compacting Dumpster

REAR LOAD COMPACTING DUMPSTER

 6 YARD COMPACTING DUMPSTERS
         6YFL - 6 Yard Front Load Compactor
         6YRL - 6 Yard Rear Load Compactor



Request Automated Response with general pricing - (Secure)6YFL      6YRL

Request Info on Multiple Products - (Secure Area)

These outdoor compactors can hold roughly 25 - 30 cubic yards of trash before emptying.

Trash Haulers can tip these compactors in the same way that they do their other (non-compacting) dumpsters.  Waste Hauling Costs can oftentimes be reduced by up to 50% or more. These outdoor compacting dumpsters can also help control rodent problems and overflowing dumpsters.

Ideal for many types of applications, especially where space is limited. Schools, Colleges, Department Stores, Retail, Hotels & Motels, Restaurants, Manufacturing Facilities, Malls & Shopping Centers and more...

Noteworthy Points: An example of the weight of the compacted trash when the dumpster is completely full is as follows: When completely full the compacted trash of a Fast Food Restaurant would weigh approximately 3,500 pounds or roughly 500 - 600 pounds per cubic yard of compacted waste (i.e. excluding the weight of the compactor itself). A side note is that some waste haulers might want you to think that the weight is much more in situations where there is a weight charge.

Another side note is that the hydraulics on the waste hauler trucks are typically designed to lift and tip 8,000 pounds. In addition these trucks are usually over designed so that water-logged trash from rain etc is not a problem for the hydraulics.

Note: Our Preliminary Considerations Checklist for Outdoor Compactors may be helpful.


Helpful Articles for Deciding on Compacting Dumpsters:

About Compactors
Industrial Trash Compactors
Waste Compactors - Reduce the Trash Burden
Trash Compactors - Not Glamorous But Very Useful
Trash Compactors  -  Purchase Considerations and Tips
Trash Compactors  -   Preliminary Considerations Checklist
Waste Generated by Industry and Building Type   (in pounds)
Waste Generated by Industry and Building Type (in cubic yards)




Basic Features of Compacting Dumpsters:

- Operation of the Outdoor Compactor is Safe & Simple
- Keylock Controls to help prevent unauthorized use (or unsafe operation)
- Safety Interlock system on the loading door
- Controls are UL Listed and the compactor meets or exceeds ANSI & OSHA standards
- Very Large Hopper for accepting trash (Approximately 1 cubic yard)
- 4 easy steps: 1) Open loading door; 2) Deposit trash;  3) Close door; 4) Push the button
- The low 'Loading Height' of only 40" is very user-friendly
- Can accept dry or wet waste due to Leak Proof & Liquid Tight Design (up to 40")
- Compaction Force provides a reduction ratio of about 4 or 5 to 1 (on typical trash profiles)

Standard Options of the Dumpster Style Compactors:

- Single Phase Power
- 80% & 100% Full Lights
- Oil Heater
- Pressure Gauge
- Wheel Kit
- A-Frame Pick-up
- Right Side Hydraulic Coupler
-  Hose Extension Kit
-  Biodegradable Fluid





COMPACTOR SPECIFICATIONS

6 YARD FRONT LOAD COMPACTOR SPECIFICATIONS

(6YFL)
6 YARD
FRONT LOAD
COMPACTOR

Front Load Compacting Dumpster

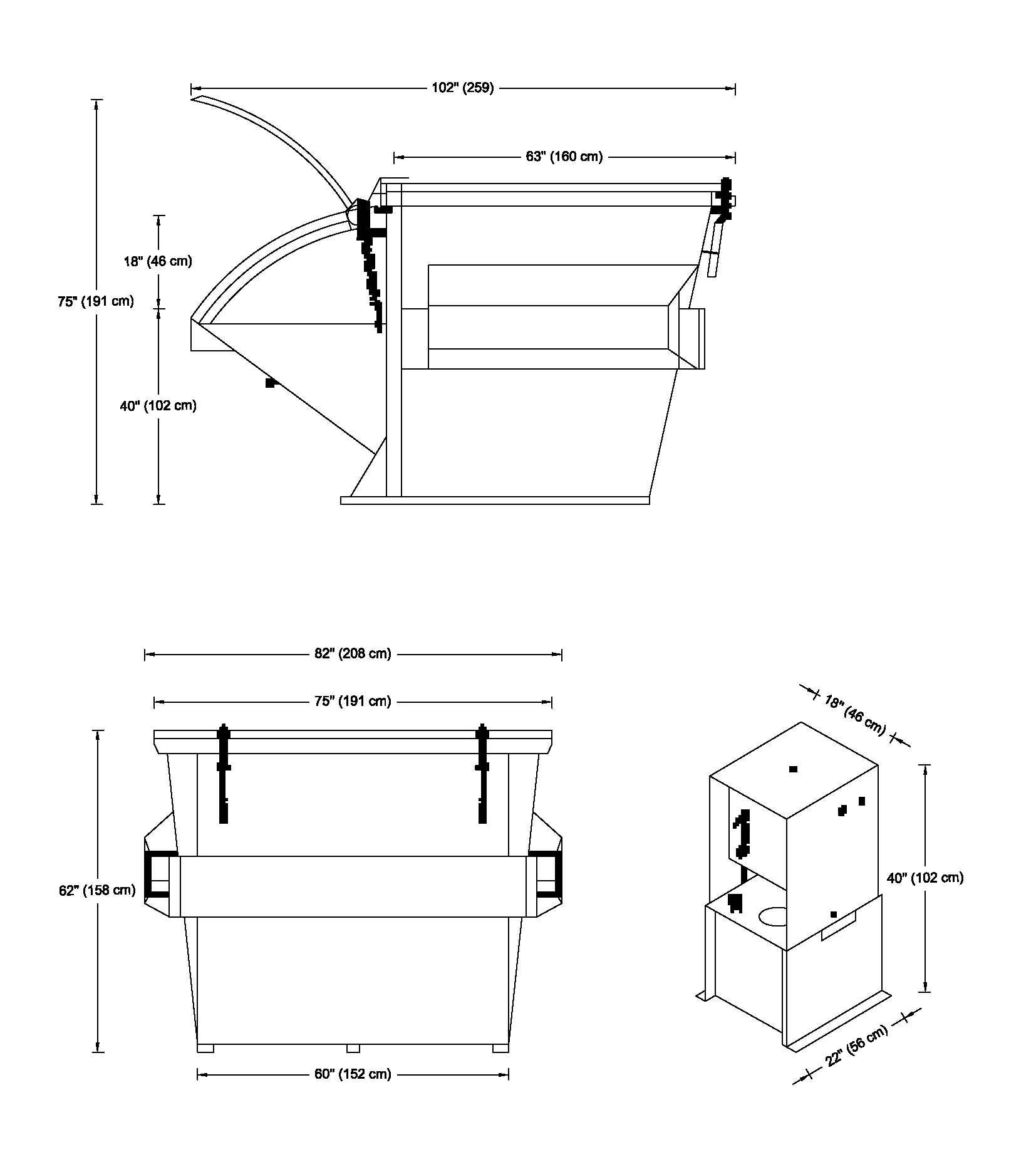

6YFL (FRONT LOAD) IMAGE ABOVE
Container Capacity 6 cubic yards
Charge Chamber 1 Cubic Yd  (Wastec - .88 Cu Yd)
Motor 3 HP TEFC  3 Phase 208 / 230 / 460
Pump 5 GPM 2 Stage  (or 3GPM with 1 ph)
Overall Dimensions Length: 102"   Width: 82"  Height: 62"
Loading Chamber Size 1 cubic yard
Loading Chamber (Clear Top) Opening Length: 27.5"    Width: 53.5"
Loading Chamber Height 40"
Ram Face Width: 53"   Height: 46"
Ram Penetration 0-13"
Packing Pressure Normal: 1550 PSI; Max 1750 PSI
Packing Force Normal: 21,900 lbs; Max 24,700 lbs
Ramface Pressure Normal: 8.7 PSI; Max 9.8 PSI
Power Unit:
  1. Weather Proof - UL Approved
  2. Key Start Switch & Stop Buttons
  3. Mushroom STOP Button for halting operation at any time
  4. 3 Phase Electric Motor 208 /230 / 460 V , 60HZ
  5. Control Panel - Key Switch, Start and Stop Button
  6. Hydraulic Pump - 5 GPM Hi-Lo; 200 Mesh Screen suction Filter
  7. Hydraulic Reservoir - 13 Gallons
  8. Hydraulic Hoses - 12' With Quick Disconnect Couplers
  9. Power Unit Cover - Protective Metal Cover
  10. Hydraulic Hose Storage Slot
Hydraulic Cylinders Twin  3"  Bore;  1.5" Rod;  16"  Stroke
Cycle Time 26 Seconds
Shipping Weight 2475 lbs
  • Standard Brown Finish: Custom Colors Available
  •  Safety Interlock
    1. Hydraulic interlock prevents operation when loading door is open
    2. Mechanical interlock prevents opening of door during compaction cycle
  • Leak-proof container to 40"
  • Protective power unit cover
  • Optional oil heater
  • Optional Single Phase Electrical (1 HP TEFC 1 PH 110/220)
  • Optional longer hose lengths





6 YARD REAR LOAD COMPACTOR SPECIFICATIONS

(6YRL)
6 YARD
REAR LOAD

COMPACTOR

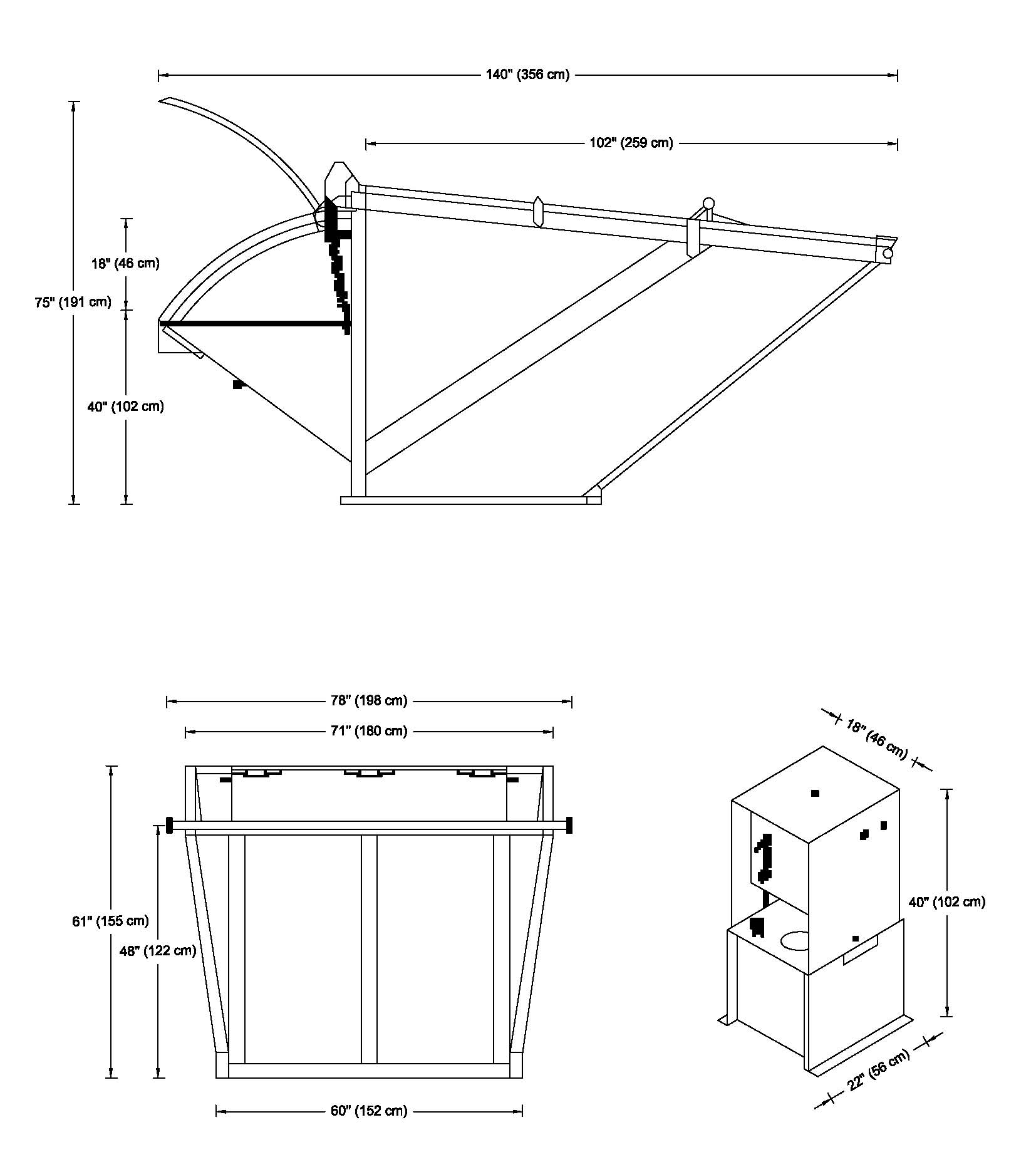

6YRL (REAR LOAD) IMAGE ABOVE
Container Capacity 6 cubic yards
Charge Chamber 1 Cubic Yd  (Wastec - .88 Cu Yd)
Motor 3 HP TEFC  3 Phase 208 / 230 / 460
Pump 5 GPM 2 Stage  (or 3GPM with 1 ph)
Overall Dimensions Length: 140"   Width: 82"  Height: 62"
Loading Chamber Size 1 cubic yard
Loading Chamber (Clear Top) Opening Length: 27.5"    Width: 53.5"
Loading Chamber Height 40"
Ram Face Width: 53"   Height: 46"
Ram Penetration 0-13"
Packing Pressure Normal: 1550 PSI; Max 1750 PSI
Packing Force Normal: 21,900 lbs; Max 24,700 lbs
Ramface Pressure Normal: 8.7 PSI; Max 9.8 PSI
Power Unit:
  1. Weather Proof - UL Approved
  2. Key Start Switch & Stop Buttons
  3. Mushroom STOP Button for halting operation at any time
  4. 3 Phase Electric Motor 208 /230 / 460 V , 60HZ
  5. Control Panel - Key Switch, Start and Stop Button
  6. Hydraulic Pump - 5 GPM Hi-Lo; 200 Mesh Screen suction Filter
  7. Hydraulic Reservoir - 13 Gallons
  8. Hydraulic Hoses - 12' With Quick Disconnect Couplers
  9. Power Unit Cover - Protective Metal Cover
  10. Hydraulic Hose Storage Slot
Hydraulic Cylinders Twin  3"  Bore;  1.5" Rod;  16"  Stroke
Cycle Time 26 Seconds
Shipping Weight 2700 lbs
  • Standard Brown Finish: Custom Colors Available
  •  Safety Interlock
    1. Hydraulic interlock prevents operation when loading door is open
    2. Mechanical interlock prevents opening of door during compaction cycle
  • Leak-proof container to 40"
  • Protective power unit cover
  • Optional oil heater
  • Optional Single Phase Electrical (1 HP TEFC 1 PH 110/220)
  • Optional longer hose lengths







Note: Specifications, Dimensions & other product details may vary slightly upon delivery due to continuous product progressions and improvement. If exactness is required on any item(s), confirm in writing before ordering. In our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications, dimensions and other product details without notice.

Performance may vary depending upon application.

Products must be installed and operated according to required standards, codes, regulations and safety procedures.
