BALER AND RECYCLING EQUIPMENT RENTALS
Special
60" Baler Rental - $325 / month - Everything Included
Includes Equipment, Freight, Install, Service Warranty - Continental US
Quick Approval & Delivery with No Upfront Cost
Click Here for Rental Forms to get started, or if you have questions
Call 888-200-4100 888-200-4100 for Immediate Assistance
Request Detailed Information for other products & services (or this Baler Rental) - (Secure Area)
The High Density Baler Rentals are ready when you are. And, they are loaded with Features and Power.
BALER RENTAL MODEL - R60-1548
Request Detailed Quote or other information - (Secure Area)
This Baler Rental is ideal for:
- Supermarkets
- Department Stores
- Manufacturing Facilities
- Shopping Centers
- Colleges & Universities
- Hotels / Motels
- Military Bases
- Recycling Centers
- Transfer Stations
- Many other types of industrial and commercial applications.
We take care of everything from shipping to off-loading, to install and all you have to do is make your monthly rental payments for the rental term. In addition, if there are service requirements that is covered too.
Baler Rentals provide an easy, no hassles way to implement a baler for baling a variety of materials such as Cardboard, PET Plastic, Shrink Wrap, Steel Cans, Aluminium Cans, Foam, Fiber, Paper, Bottles and other recyclable materials.
When you rent a baler it allows you to remove recyclables from your waste stream and save considerably on waste disposal costs. The objective of course is to achieve monthly paybacks starting the very first month, especially since there is no up front costs involved.
Our rental programs can be tailored to meet your objectives; either a straight rental or a rent to own.
- Baler Rentals can help reduce your overall waste disposal costs
- Baler Rentals can help reduce your overall labor costs (attributable to waste handling)
- Baler Rentals can help you streamline your overall waste processing operations for better productivity
- Baler Rentals can help you improve cleanliness and business image
- Baler Rentals can help reduce fire hazards (from stored materials) and improve workplace safety
Some of the Standard Features and Performance information for one of our most popular 60" Vertical Balers is indicated below, however we have many models available in order to address specific needs.
Model R60-1548 60" High Density Vertical Baler Performance Information |
|||
Bale Size 60-1548-BS |
30” x 48” x 60” |
||
Bale Volume 60-1548-BV |
50 Cubic Feet |
||
Cycle Time 60-1548-CT |
48 Seconds (No Load) |
||
Estimated Bale Weights |
|||
Material |
Bale Weight |
Density Lbs/Cu Ft – Loose/Baled |
Bales / Hr |
OCC - Cardboard |
Up to 1,000 Lbs |
2.5 / 24 |
Up to 2 |
Shredded ONP - Newspaper |
Up to 1,100 Lbs |
2.5 / 26 |
Up to 2 |
Plastic Wrap |
Up to 800 Lbs |
1.5 / 16 |
Up to 2 |
PET (Requires 'Beef-Up' Add-On) |
Up to 300 - 400 Lbs |
1 / 13 |
Up to .75 |
Clothes (Requires 'Beef-Up' Add-On) |
Up to 1,100 Lbs |
4 / 22 |
Up to 2 |
Note: Performance Rates, Bale Weights, and Bale Densities are subject to many factors such as Material Pre-Bale Densities, Feed rates, Moisture Content and other variables. *For baling strictly plastic wrap it may be helpful to add the Shark's Teeth option. |
|||
Model R60-1548 60" High Density Vertical Baler - Hydraulics |
|
Main Pumps 60-1548-MP |
9.6 GPM @ 1,800 RPM Fixed Volume Vane |
System Pressure 60-1548-SP |
2600 PSI Maximum |
Main Cylinder 60-1548-MC |
6” Bore, 3.5” Rod, 48” Stroke |
Ram Face Pressure 60-1548-FP |
45.26 PSI |
Overall Platen Force 60-1548-PF |
73,502 Lbs |
Oil Reservoir 60-1548-OR |
30 Gallon Capacity |
Hydraulic Manifold 60-1548-HM |
D05 Pattern, Internal Relief Valve Subplate Circuit |
60" High Density Vertical Baler - Electrical |
|
Main Motor 60-1548-MM |
15 HP - 208/230/460v – 3 Phase |
Enclosure 60-1548-EN |
NEMA 12 - Rated |
Controls 60-1548-CL |
UL / CUL Listed |
Motor Type 60-1548-MT |
TEFC High Efficiency |
Model R60-1548 60" High Density Vertical Baler - Dimensions & Structural |
|
Height 60-1548-H |
143 |
Width 60-1548-W |
80 |
Depth 60-1548-D |
45 |
Depth (Door Open) 60-1548-DO |
102 |
Frame Design 60-1548-FD |
10” Channel Side Rails - 12” Channel Headers |
3” x 3” Tube Steel Discharge Door Supports |
|
Solid Door Charge |
|
8 Pieces of 4” Channel in Sub Floor |
|
Feed Opening 60-1548-FO |
27” x 60” Charge Dimensions 23” x 60” |
Weight 60-1548-WT |
5,000 lbs |
Model R60-1548 Other Features of the 60" High Density Baler |
|
| 60-1548 | UL Listed |
| 60-1548 | Product meets or exceeds all ANSI Z245.5 and OSHA standards. |
| 60-1548 | Product has NEMA 12 |
| 60-1548 | Bale Height Adjustable |
| 60-1548 | Safety Interlock Circuit on Bale Door & Safety Gate |
| 60-1548 | Counterbalanced Feed Door for Easy Open |
| 60-1548 | 3 – 6” Retainer Bale Dogs Front and Back |
| 60-1548 | Soft Shift, Low Shock Hydraulic Circuit |
| 60-1548 | Dual Chain Semi-Automatic Bale Ejection System |
| 60-1548 | Platen Roller Guides |
| 60-1548 | Spring Doors |
| 60-1548 | Factory Wired for Easy Installation |
| 60-1548 | Structural frames reinforced in high stress areas, plus other heavy duty 'extras'. |
Model R60-1548 Other Options of the 60" High Density Vertical Baler |
|
60-1548-01 |
Slotted Discharge Door |
60-1548-02 |
Single Phase Motor (Only available on 10 HP Balers) |
| 60-1548-03 | Front Load – Rear Eject |
| 60-1548-04 | Oil Heater |
| 60-1548-05 | Special Voltage – 575V |
| 60-1548-06 | Sharks Teeth |
| 60-1548-07 | Weatherproof |
| 60-1548-08 | Drum Crusher |
| 60-1548-09 | Extra Heavy Duty Package (Heavily beefed up Frame etc) |
60-1548-10 |
Special Paint Color |
60-1548-11 |
Automated Rear Chute without Conveyor |
60-1548-12 |
Automated Rear Chute with Conveyor |

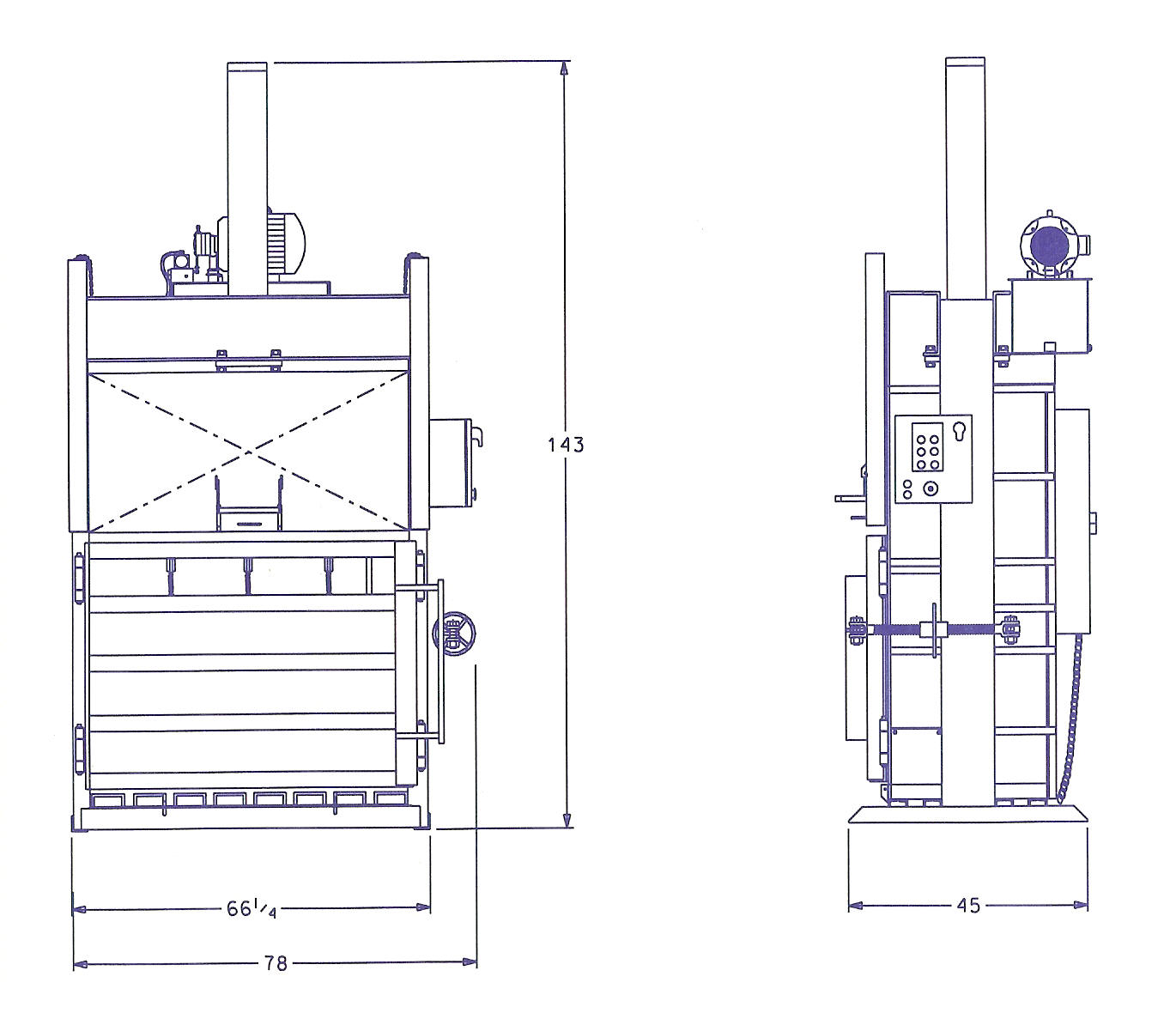

Model R60-1548 60" High Density Baler Diagram
A = 68" B = 80" C = 54" D = 108" E = 143" F = 45" G = 102" H = 76" I = 54"
Note: Specifications, Dimensions & other product details may vary slightly upon delivery due to continuous product progressions and improvement. If exactness is required on any item(s), confirm in writing before ordering. In our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications, dimensions and other product details without notice.
Performance may vary depending upon application.
Products must be installed and operated according to required standards, codes, regulations and safety procedures.
