Eight Models Plus a Variety of Options
Stationary Compactors are ideal for:
Note: Our
Trash Compactors - Preliminary Considerations Checklist
may be helpful
|

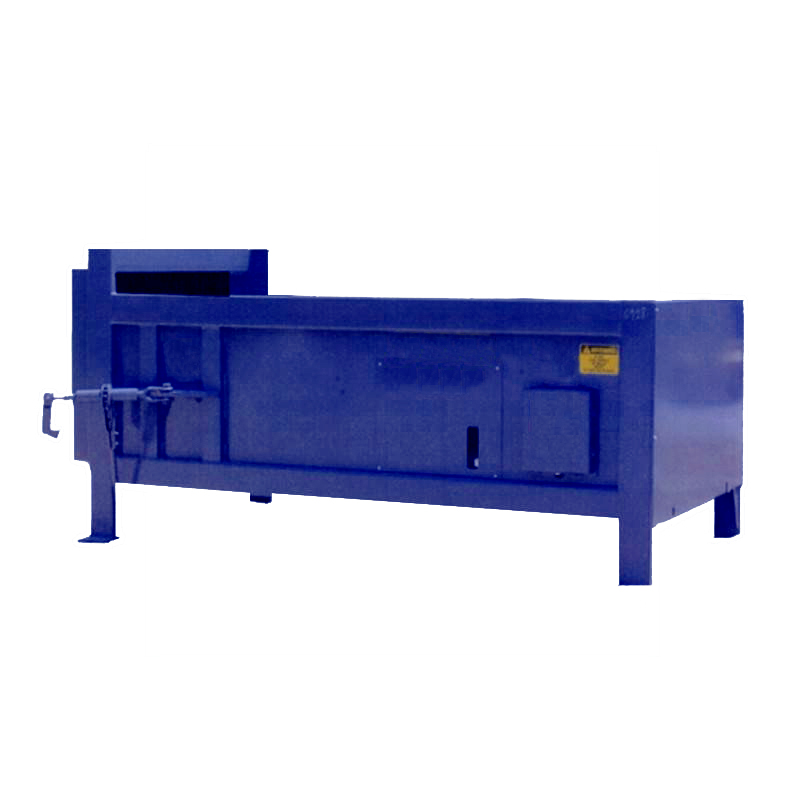

Stationary Compactors are
available in many standard sizes that can also be configured to meet your specific needs.
By choosing from a
large selection of standard options (such as various hoppers, walk-on or drive on ramps,
multi-cycle timers, remote stations and many others) you can tailor a compactor
for your circumstances.
Stationary Compactors are
typically used for dry waste (i.e. for compacting cardboard and mixed paper etc) and can
be positioned so that they are fed by a chute opening that is as simple as
a thru-wall arrangement (so that employees do not have to walk outside to make
the trash deposits) or fed by an existing air handling system. Unlike Self

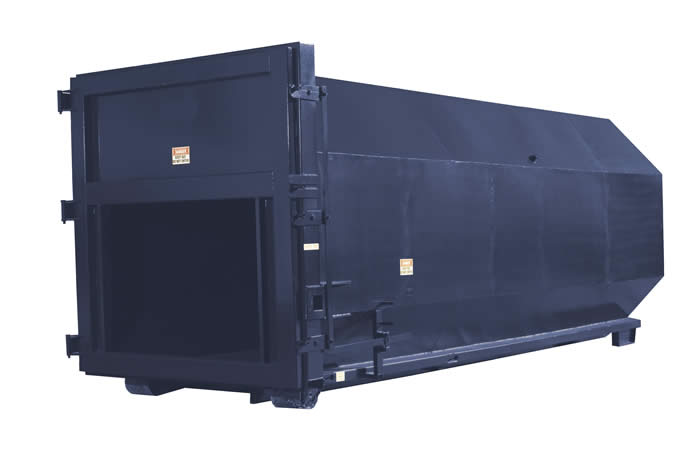

Contained Compactors, Stationary Compactors compact trash into a detachable
Container (such as a 30 yard or 40 Yard Container). Stationary
Compactors are designed and built
with versatility and durability in mind and are ideal for a large variety of
commercial and industrial applications. The quality and compaction force that is
provided in both the standard and high density models is tops in the industry.
Stationary Compactors can also serve as good Cardboard Compactors or paper
compactors, (although not nearly as good as one of our
Cardboard Balers).
|
When trying to decide on the best
alternative for a Stationary Compactor, below is a basic checklist for both Standard
specifications and features to consider as well as Options:
Standard Specification Considerations:
Charge Box Capacity
Clear Top Opening
Cycle Time
Total Force (Normal & Maximum)
Total Face Pressure (Normal &
Maximum)
Operating Pressure (Normal &
Maximum)
Ram Penetration
Motor Size
Cylinder Bore Size, Cylinder Rod
Size and Stroke
Construction of the Floor, Sides,
Breaker Bar, Ram Face, Ram Top, Sides and Bottom
Stationary Compactors - Types of
Standard Features to consider:
UL Listed Control Panel
Meets of
Exceeds ANSIi Z245.5 and OSHA Standards
NEMA 4 weather proof gasket control panel
Key Start - Push
Button - Control Station mounted on 15' Sealite
Right or left side
mounted power unit
Power unit
weather cover
Override - Packout - Hydraulic Pressure Boost
Stationary Compactors -
Typical Options to consider:
Dual Cylinder for High Density Compaction
Different Motor
Voltages (such as 575 volt) and Larger HP Motors
3-Sided Hopper (Left or Right Feed)
4-Sided Top Hopper
Walk on Dock Mounts with Hopper & Hand Rails
Drive on Dock Mounts with Hopper & Hand Rails
Walk-On Dock Mounts with Safety Gate Hopper & Hand Rails
Drive-On Dock Mounts with Safety Gate Hopper & Hand Rails
10,000 lb Drive on Docks
Remote Power Unit
Remote Control Panels
(with varying length Hydraulic Hoses)
Additional Keyed Start / Stop Remote Push Button Station on 15’ Sealite
75% Full Advanced Warning Light
Multi-Cycle Timer
Low Oil / High Temp Light
5’ Guide Island
Oil Heater
Weatherproof Control Panel
Hand Rails
Interlocks for Safety Gates
|
