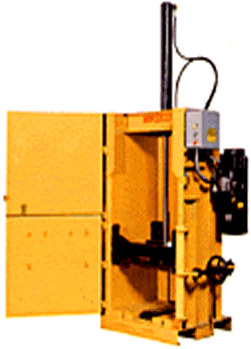

Small Vertical Baler - 30" High Density |
|
|
Model 30-HDVB |
![]() |
|
Small High Density Vertical Baler Specifications
Bale Size 24" x 30" x up to 30"
Bale Weight HDPE 190#, PET 145#, OCC 245#, Steel Cans 220# Used Clothes: 200 - 300# Ram Pressure 1,350 lbs Cycle Time 38 seconds Cylinders 4.5" Bore, 3" Rod, 33" Stroke Motor 2 HP, 1725 RPM, TEFC Pump Two Stage Bale Tying Wire or Polyethylene Twine Bale Ejection Hydraulic
Small High Density Vertical Baler Dimensions
Loading Door Opening 17"x 29" Unloading Door Height from Floor 34" Overall Height 96" Overall Width 43" Overall Depth 38" Depth with Door Open 69" Width with Door Open 48" Shipping Height under 80" Shipping Weight 1,475 lbs. Required Operating Area 23 Square Feet
Meets ANSI Standards Z295.5 UL Approved Control Panel
|
* Note: Specifications, Dimensions & other product details may vary slightly upon delivery due to continuous product progressions and improvement. If exactness is required on any item(s), confirm in writing before ordering. In our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications, dimensions and other product details without notice. • Performance may vary
depending upon application. |

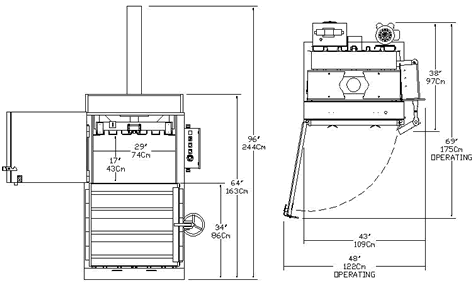

30" High Density Vertical
Baler Diagram - Model 30-HDVB

Note: Dimensions may be rounded (and unless indicated) do not include any recommended 'perimeter buffer'.
If exactness is required, confirm in writing prior to ordering.
|
