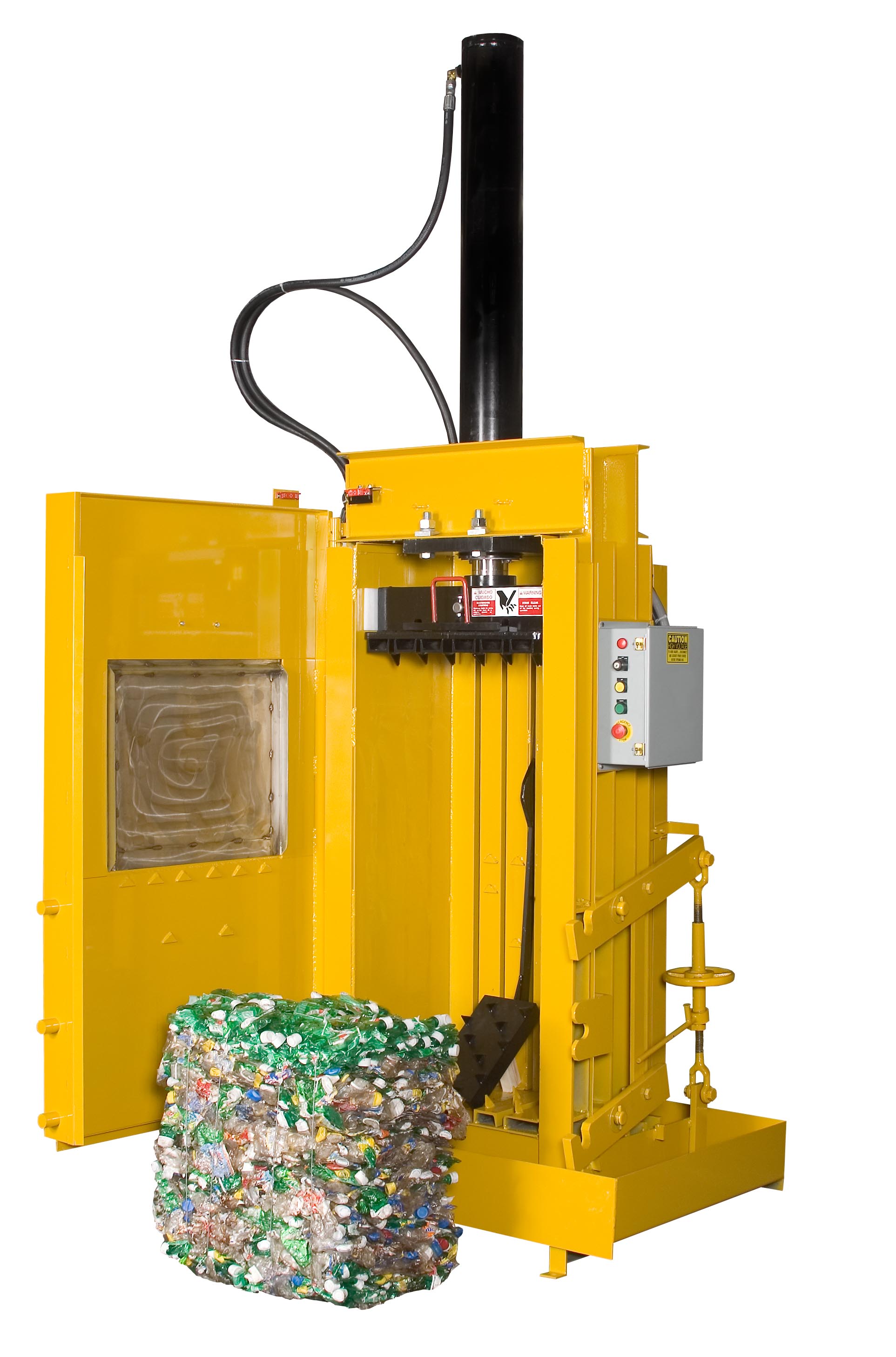

The Bottle & Can Baler
is an innovative Baler that combines baling and draining of both aluminium
cans and plastic containers in one step. This allows the Bottle & Can Baler
to perform more than 7 times faster than draining your containers manually.
This Baler is specifically designed for PET Plastic Bottles &
Aluminium Cans
FEATURES
- A unique and innovative "Shark’s Teeth"
system
- The Shark's Teeth performs proper liquid
extraction
- Standard removable Splash Guards to help contain
liquid
- The TEFC Motor allows the baler to be hosed down
for easy clean-up
- A Large 51-Gallon reservoir to contain the liquid
- No Preconditioning of material required Before
Baling
- Optional Sump Pump System to help whisk the liquid
away to
your drain or tote
- All new, magnetically coded doors switches
- Standard bolt-downs for added safety
- Four slots for tying bales
- Key Operated Safety Switch
- Meets or Exceeds All ANSI and OSHA Safety Standards
|
 |
|

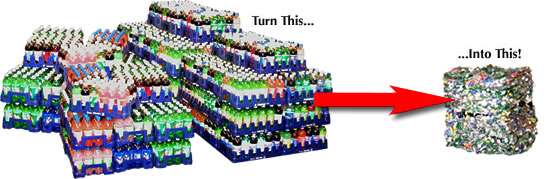

What if you could take 4,000 (liquid filled)
Aluminium Cans or 2,000 Plastic Bottles of expired
product...
and in just a few minutes you could drain & bale it into a
24" X 16" X 24" bale that was recyclable & saleable??
|
|
 |
| |
|
This illustrated bale above consists of 84
cases of 24 each of the 20 oz. plastic bottles (2,016 bottles). The bale was
formed in about 15 minutes which included draining over 99% of the liquid. The finished bale weighs
roughly 190 lbs. and is 24” x 16” x 24”. The
liquid drained out of the bottom reservoir which was connected to , a PVC pipe
that emptied into a
floor drain. The liquids can also be pumped out of an optional auxiliary reservoir
into a 250-gallon container.

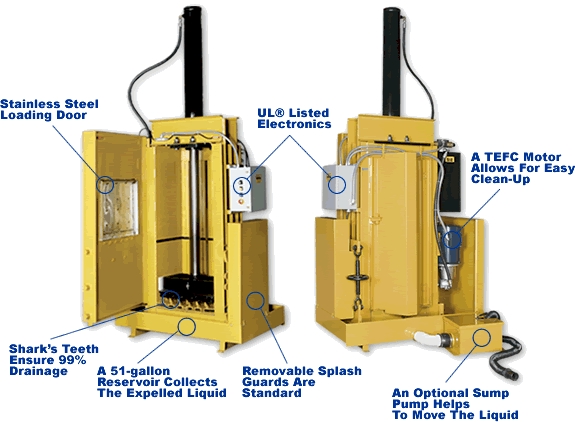

Removable Splash Guards control the huge mess that would otherwise be caused by the total
destruction of approximately 2,000 full plastic bottles or 4,000 aluminum cans.
Below the machine is a large 51-gallon reservoir that collects the liquid
being extracted from the baler which can then funnel to a drain of your choosing.
If preferred, the optional sump pump can be used in conjunction with a collection
container. A TEFC (Totally Enclosed Fan Cooled) motor allows the
entire machine to be hosed down. Since safety is always a concern, the Beverage Bottle &
Can Baler comes standard with state-of-the-art magnetically coded safety
switches. These switches require complete closure
of all doors during the compaction cycle or the baler will not operate.
There are many innovative features such as the “Shark’s Teeth” system
which mean that the ram face and chamber floor are lined
with “Shark’s Teeth” to rip and puncture the material in the chamber to
ensure proper baling and liquid removal.
|
|
 |
 |
|
This illustrated bale above consists of 84
cases of 24 each of the 20 oz. plastic bottles (2,016 bottles). The bale was
formed in about 15 minutes which included draining over 99% of the liquid. The finished bale weighs
roughly 190 lbs. and is 24” x 16” x 24”. The
liquid drained out of the bottom reservoir which was connected to , a PVC pipe
that emptied into a
floor drain. The liquids can also be pumped out of an optional auxiliary reservoir
into a 250-gallon container. |
|
Optional Sump Pump System
To Help Whisk Away The Liquid.
|
|
Bottle & Can Baler - Model VBCB-1000 Specifications
|
Bale Size |
24" x 16" x up to 24" |
|
Bale Weights
-Aluminum Cans
-Plastic Bottles |
up to 120 pounds
up to 230 pounds |
|
Ram Pressure |
56,550 Pounds |
|
Ram Pressure PSI |
165 Pounds |
|
Cylinder |
6" Bore, 4" Rod,
48" Stroke |
|
Motor |
10 HP |
|
Pump |
12 Gallon |
|
Liquid Reservoir |
51 Gallon Accepts A 3" Male Pipe Coupler |
|
Electrical Power |
208 / 230 / 460 Volt, 3 PH, 60 Hz |
|
Bale Ejection |
Hydraulic Chain |
|
Bale Tying |
Wire or Polyethylene Twine |
Bottle & Can Baler Dimensions
|
Chute Door Opening |
24" x 21" |
|
Overall Height |
132" |
|
Overall Depth |
39" |
|
Overall Width |
55" |
|
Depth with doors open |
86" |
|
Shipping Height |
84" |
|
Actual Weight |
3,060 Pounds |
|
Installation and Operating Area |
33 Square Feet |
|
Options |
Sump
Pump System Single Phase Power |
|
Note: Dimensions may be rounded (and unless
indicated) do not include any recommended 'perimeter buffer'.
If exactness is required, confirm in writing prior to ordering.
*
Note: Specifications, Dimensions & other product details may
vary slightly upon delivery due to continuous product
progressions and improvement. If exactness is required on any item(s),
confirm in writing before ordering. In our efforts to provide products
with the most up to date engineering and design, we reserve the right to
change specifications, dimensions and other product details without notice.
• Performance may vary
depending upon application.
• Products must be installed and operated according to required standards,
codes, regulations and safety procedures.
|
|
