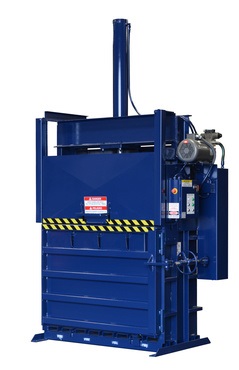

Extra High Density 72" Vertical Baler |
|
|
Model 72-2040 |
 |
This 72" Extra Density Baler is Ideal for:
|
|
72" Extra High Density Baler Performance Information |
|||
|
72-2040 - Bale Size |
40” x 48” x 72” |
||
|
72-2040 - Bale Volume |
80 Cubic Feet |
||
|
72-2040 - Cycle Time |
48 Seconds (No Load) |
||
|
Estimated Bale Weights |
|||
|
Material |
Bale Weight |
Density Lbs/Cu Ft – Loose/Baled |
Bales / Hr |
|
OCC – Cardboard |
Up to 1,300 Lbs |
2.5 / 17 |
Up to 2 |
|
Shredded ONP |
Up to 1,400 Lbs |
4 / 19 |
Up to 2 |
|
Note: Performance Rates, Bale Weights, and Bale Densities are subject to many factors such as Material Pre-Bale Densities, Feed rates, Moisture Content and other variables. |
|||
|
72" Extra High Density Baler Hydraulics |
|
|
72-2040 - Main Pumps |
12.9 GPM @ 1,800 RPM Fixed Volume Vane |
|
72-2040 - System Pressure |
2600 PSI Maximum |
|
72-2040 - Main Cylinder |
7” Bore, 4.5” Rod, 48” Stroke |
|
72-2040 - Ram Face Pressure |
37.61 PSI |
|
72-2040 - Overall Platen Force |
100,048 Lbs |
|
72-2040 - Oil Reservoir |
41 Gallon Capacity |
|
72-2040 - Hydraulic Manifold |
D08 Pattern, Internal Relief Valve Subplate Circuit |
|
72" Extra High Density Baler Electrical |
|
|
72-2040 - Main Motor |
20 HP - 208/230/460v – 3 Phase |
|
72-2040 - Enclosure |
NEMA 12 - Rated |
|
72-2040 - Controls |
UL / CUL Listed |
|
72-2040 - Motor Type |
TEFC High Efficiency |
|
72" Extra High Density Baler - Dimensions & Structural |
|
|
72-2040 - Overall Height |
143 |
|
72-2040 - Overall Width |
90 |
|
72-2040 - Overall Depth |
55 |
|
72-2040 - Depth with Door Open |
125 |
|
72-2040 - Frame Design
|
10” Channel Side Rails - 12” Channel Headers |
|
3” x 3” Tube Steel Discharge Door Supports |
|
|
Solid Door Charge |
|
|
8 Pieces of 4” Channel in Sub Floor |
|
|
72-2040 - Feed Opening |
27” x 72” Charge Dimensions 23” x 72” |
|
72-2040 - Weight |
7,000 lbs |
|
Other Features of the 72" Extra High Density Baler |
|
|
72-2040 |
UL Listed |
| 72-2040 | Meets or exceeds all ANSI Z245.5 and OSHA standards. |
| 72-2040 | Product has NEMA 12 |
| 72-2040 | Bale Height Adjustable |
| 72-2040 | Safety Interlock Circuit on Bale Door & Safety Gate |
| 72-2040 | Counterbalanced Feed Door for Easy Open |
| 72-2040 | 3 – 6” Retainer Bale Dogs Front and Back |
| 72-2040 |
Soft Shift, Low Shock Hydraulic Circuit |
| 72-2040 | Dual Chain Semi-Automatic Bale Ejection System |
| 72-2040 | Platen Roller Guides |
| 72-2040 | Spring Doors |
| 72-2040 | Factory Wired for Easy Installation |
| 72-2040 | Structural frame reinforced in high stress areas, plus other heavy duty 'extras'. |
|
Other Options of the 72" Extra High Density Baler |
|
|
Option # |
Description |
| 72-2040-01 |
Slotted Discharge Door |
| 72-2040-02 |
Single Phase Motor (Only available on 10 HP Balers) |
| 72-2040-03 |
Front Load – Rear Eject |
| 72-2040-04 |
Oil Heater |
| 72-2040-05 |
Special Voltage – 575V |
| 72-2040-06 |
Sharks Teeth |
| 72-2040-07 |
Weatherproof |
| 72-2040-08 |
Drum Crusher |
| 72-2040-09 |
Heavy Duty Package (Beefed up Frame etc) |
| 72-2040-10 | Special Paint Color |
| 72-2040-11 | Automated Rear Chute without Conveyor |
| 72-2040-12 | Automated Rear Chute with Conveyor |
|
* Note: Specifications, Dimensions & other product details may vary slightly upon delivery due to continuous product progressions and improvement. If exactness is required on any item(s), confirm in writing before ordering. In our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications, dimensions and other product details without notice. • Performance may vary
depending upon application. |

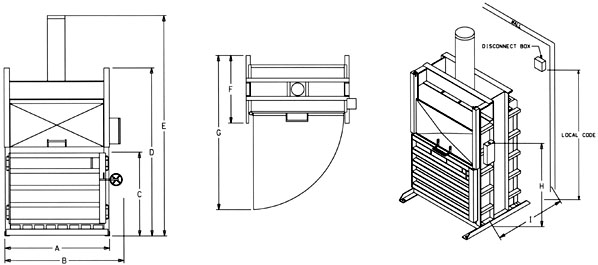

72" Extra High Density Vertical Baler Diagram - Model 72-2040
A = 80" B = 92" C = 54" D = 108" E = 143" F = 55" G = 125" H = 76" I = 54"
Note: Dimensions may be rounded (and unless
indicated) do not include any recommended 'perimeter buffer'.
If exactness is required, confirm in writing prior to ordering.
|
