72"
Vertical Balers - Specifications Comparison |
|
Large Balers |
|
When the Large 60" Vertical Balers
aren't quite big enough, then something in our line of 72"
Vertical Balers should fit your needs. The 72" Balers
produce extra large and extra heavy bales of recyclables. In
addition to the Standard 72" Balers, there is also the High
Density model on up to the Super High Density and High Speed 72"
Vertical Balers, depending on specific requirements. Cardboard
Bale weights can range up to 1,400 pounds while Newspaper Bale
weights can be as high as 1,500 pounds. When the baler footprint
is less of a concern and large bale sizes and weights are more
of a priority, this category of balers is the right choice. |
72" High Density Baler -
(Model 72-1530)
| |
 |
|
|
|
| Bale Size |
30" x 48"x 72" |
Bale Materials
& Weight Examples ('Up to' wt.) |
| Bale Volume |
60 Cubic Feet |
Corrugated Cardboard
- 1,100 lbs |
| Cycle Time |
48 seconds |
Shredded Newspaper -
1,200 lbs
|
| Cylinder |
6" - Bore, 3.5" - Rod,
48" Stroke |
PET Plastic |
| Pressure |
Platen Force:
73,502 lbs - Ram Face: 37.50 psi - System: 2600 psi |
Steel Cans
|
|
|
Aluminium Cans |
| Electrical / Motor |
15 HP, TEFC
- 3 Phase - NEMA 12 UL / CUL Listed |
Foam |
| Main Pump(s) / Oil |
9.8 GPM @ 1800 RPM
Fixed Volume Vane - 30 Gallon Oil Capacity |
Shrink Wrap |
| |
|
|
| Overall Dimensions
|
Height: 143" - Width:
90" - Depth (Door Open):
125" (78 Sq. Ft) |
|

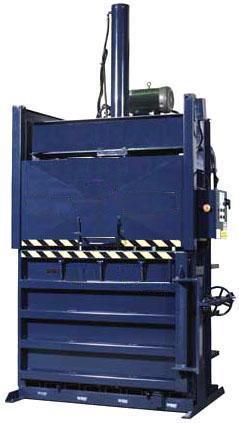

72" Extra High Density
Baler - (Model 72-2040)
| |
 |
|
|
|
| Bale Size |
40" x 48"x 72" |
Bale Materials
& Weight Examples ('Up to' wt.) |
| Bale Volume |
80 Cubic Feet |
Corrugated Cardboard
- 1,300 lbs |
| Cycle Time |
48 seconds |
Shredded Newspaper -
1,400 lbs
|
| Cylinder |
7" - Bore, 4.5" -
Rod, 48" Stroke |
PET Plastic |
| Pressure |
Platen Force:
100,048 lbs - Ram Face: 37.61 psi System: 2600 psi |
Steel Cans
|
|
|
Aluminium Cans |
| Electrical / Motor |
20 HP, TEFC
- 3 Phase - NEMA 12 UL / CUL Listed |
Foam |
| Main Pump(s) / Oil |
12.98 GPM
Fixed Volume Vane - 41 Gallon Oil Capacity |
Shrink Wrap |
| |
|
|
| Overall Dimensions |
Height: 143" - W: 90" -
D (Door Open): 135" ( 84 Sq Ft) |
|
72" Super High Density
Baler - (Model 72-2745)
| |
 |
|
|
|
| Bale Size |
45" x 48"x 72" |
Bale Materials
& Weight Examples ('Up to' wt.) |
| Bale Volume |
90 Cubic Feet |
Corrugated Cardboard
- 1,400 lbs |
| Cycle Time |
48 seconds |
Shredded Newspaper -
1,500 lbs
|
| Cylinder |
7" - Bore, 4.5" -
Rod, 48" Stroke |
PET Plastic |
| Pressure |
Platen Force:
100,048 lbs - Ram Face: 33.24 psi - System: 2600 psi |
Steel Cans
|
|
|
Aluminium Cans |
| Electrical / Motor |
20 HP, TEFC
- 3 Phase - NEMA 12 UL / CUL Listed |
Foam |
| Main Pump(s) / Oil |
12.9 GPM
Fixed Volume Vane - 41 Gallon Oil Capacity |
Shrink Wrap |
| |
|
|
| Overall Dimensions |
Height: 143" - W: (Door
Open) 90" -
D (Door Open): 140" ( 88 Sq Ft) |
|
72" High Speed
Baler - (Model 72-HSVB)
| |
|
|
|
|
| Bale Size |
40" x 72"x up to 39" |
Bale Materials
& Wt Examples ('Up to' wt.) |
| Bale Volume |
50 Cubic Feet |
Corrugated Cardboard
- 1,100 lbs |
| Cycle Time |
48 seconds |
Shredded Newspaper
|
| Cylinder |
Two - 5" - Bore, 3" -
Rod, 28" Stroke |
PET Plastic |
| Pressure |
Platen Force:
98,125 lbs |
Steel Cans
|
|
|
Aluminium Cans |
| Electrical / Motor |
20 HP, TEFC
- 3 Phase - UL Listed Control Panel |
Foam |
| Main Pump(s) / Oil |
Vane Type - 12
Gallon |
Shrink Wrap |
| |
|
|
| Overall Dimensions |
Height: 150" - W: (Door
Open) 80" -
D (Door Open): 104" (58 Sq Ft) |
|

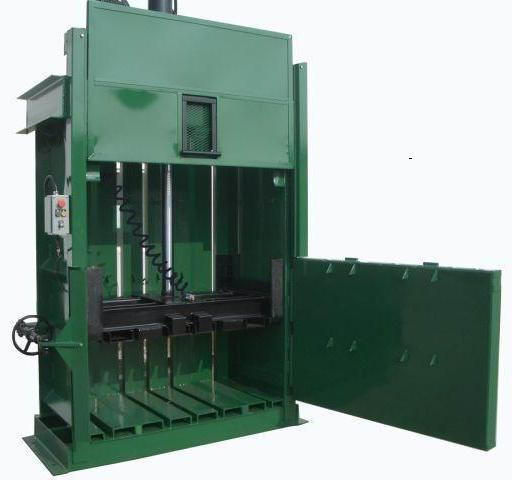

72" Standard
Baler - (Model 72-SVB)
| |
 |
|
|
|
| Bale Size |
40" x 72"x up to 40" |
Bale Materials
& Wt Examples ('Up to' wt.) |
| Bale Volume |
67 Cubic Feet |
Corrugated Cardboard
- 1,300 lbs |
| Cycle Time |
28 seconds |
Shredded Newspaper
|
| Cylinder |
7" - Bore, 4.5" -
Rod, 48" Stroke |
PET Plastic |
| Pressure |
Platen Force:
92,360 lbs |
Steel Cans
|
|
|
Aluminium Cans |
| Electrical / Motor |
20 HP, TEFC
- 3 Phase - UL Listed Control Panel |
Foam |
| Main Pump(s) / Oil |
Vane Type - 18 Gallon |
Shrink Wrap |
| |
|
|
| Overall Dimensions |
Height: 137" - W: (Door
Open) 114" -
D (Door Open): 98" (78 Sq Ft) |
|
Note: Specifications, Dimensions & any other data may vary
and is subject to change without notice
Unless otherwise specifically noted, dimensions exclude
options and standard 'perimeter buffer' that is required around equipment
for normal operating area.
|
