BOTTLE & CAN BALER - VERTICAL
With Liquid Extractor
Liquids in bottles and cans can be a burden on baling if you don't have a way to drain the liquids out of the bale. This Bottle & Can Baler is just what you need for baling bottles and cans with liquids in them. Up to 4000 aluminum cans filled with liquid can be easily compacted, drained and baled into a 24" x 16" x 24" bale, ready for sale or recycling.
VERTICAL BOTTLE CAN BALER - VBCB-1000
Request Automated Response with general pricing - (Secure)
Request Info on Multiple Products - (Secure Area)
The Bottle & Can Baler is an innovative Baler
that combines baling and draining of both aluminium cans
and plastic containers in one step.
This allows the Bottle & Can Baler to perform more than
7 times faster than draining your containers manually.
Quick overview on Plastics Balers
This Baler is specifically designed for PET Plastic Bottles & Aluminium Cans that contain liquids which need to be drained during the baling process
FEATURES
- A unique and innovative "Shark’s Teeth" system
- The Shark's Teeth performs proper liquid extraction
- Standard removable Splash Guards to help contain liquid
- The TEFC Motor allows the baler to be hosed down for easy clean-up
- A Large 51-Gallon reservoir to contain the liquid
- No Preconditioning of material required Before Baling
- Optional Sump Pump System to help whisk the liquid away to your drain or tote
- All new, magnetically coded doors switches
- Standard bolt-downs for added safety
- Four slots for tying bales
- Key Operated Safety Switch
- Meets or Exceeds All ANSI and OSHA Safety Standards

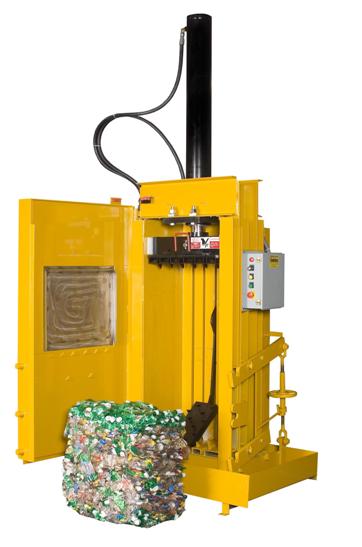

What if you could take 4,000 (liquid filled) Aluminium Cans or 2,000 Plastic Bottles of expired product...
and in just a few minutes you could drain & bale it into a 24" X 16" X 24" bale that was recyclable & saleable??
This illustrated bale above consists of 84 cases of 24 each of the 20 oz. plastic bottles (2,016 bottles). The bale was formed in about 15 minutes which included draining over 99% of the liquid. The finished bale weighs roughly 190 lbs. and is 24” x 16” x 24”. The liquid drained out of the bottom reservoir which was connected to , a PVC pipe that emptied into a floor drain. The liquids can also be pumped out of an optional auxiliary reservoir into a 250-gallon container.

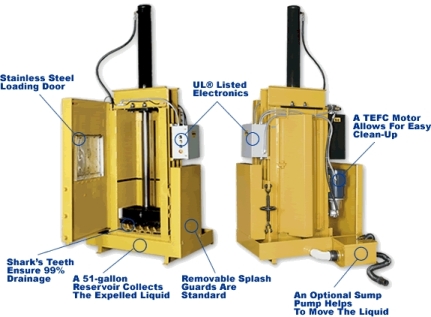

Removable Splash Guards control the huge mess that would otherwise be caused by the total destruction of approximately 2,000 full plastic bottles or 4,000 aluminum cans. Below the machine is a large 51-gallon reservoir that collects the liquid being extracted from the baler which can then funnel to a drain of your choosing. If preferred, the optional sump pump can be used in conjunction with a collection container. A TEFC (Totally Enclosed Fan Cooled) motor allows the entire machine to be hosed down. Since safety is always a concern, the Beverage Bottle & Can Baler comes standard with state-of-the-art magnetically coded safety switches. These switches require complete closure of all doors during the compaction cycle or the baler will not operate. There are many innovative features such as the “Shark’s Teeth” system which mean that the ram face and chamber floor are lined with “Shark’s Teeth” to rip and puncture the material in the chamber to ensure proper baling and liquid removal.
This illustrated bale above consists of 84 cases of 24 each of the 20 oz. plastic bottles (2,016 bottles). The bale was formed in about 15 minutes which included draining over 99% of the liquid. The finished bale weighs roughly 190 lbs. and is 24” x 16” x 24”. The liquid drained out of the bottom reservoir which is connected to a PVC pipe that emptied into a floor drain. The liquids can also be pumped out of an optional auxiliary reservoir into a 250-gallon container.
Bottle & Can Baler - Model VBCB-1000 Specifications
| Bale Size | 24" x 16" x up to 24" |
| Bale Weights
-Aluminum Cans -Plastic Bottles |
up to 120 pounds up to 230 pounds |
| Ram Pressure | 56,550 Pounds |
| Ram Pressure PSI | 165 Pounds |
| Cylinder | 6" Bore, 4" Rod, 48" Stroke |
| Motor | 10 HP |
| Pump | 12 Gallon |
| Liquid Reservoir | 51 Gallon Accepts A 3" Male Pipe Coupler |
| Electrical Power | 208 / 230 / 460 Volt, 3 PH, 60 Hz |
| Bale Ejection | Hydraulic Chain |
| Bale Tying | Wire or Polyethylene Twine |
Bottle & Can Baler Dimensions
| Chute Door Opening | 24" x 21" |
| Overall Height | 132" |
| Overall Depth | 39" |
| Overall Width | 55" |
| Depth with doors open | 86" |
| Shipping Height | 84" |
| Actual Weight | 3,060 Pounds |
| Installation and Operating Area | 33 Square Feet |
| Options | Sump Pump System Single Phase Power |
Optional Sump Pump System
To Help Whisk Away The Liquid

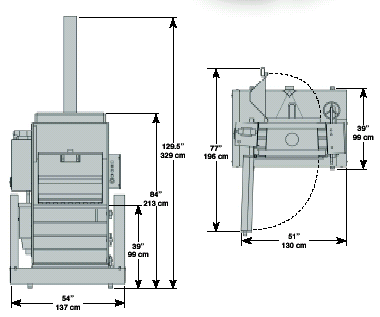

BALER DIAGRAM
Note: Specifications, Dimensions & other product details may vary slightly upon delivery due to continuous product progressions and improvement. If exactness is required on any item(s), confirm in writing before ordering. In our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications, dimensions and other product details without notice.
Performance may vary depending upon application.
Products must be installed and operated according to required standards, codes, regulations and safety procedures.
