Vertical Outdoor Compactors
Five Models Plus a Variety of Options
Vertical Outdoor Compactors are ideal for:
Note: Our
Trash Compactors - Preliminary Considerations Checklist
may be helpful

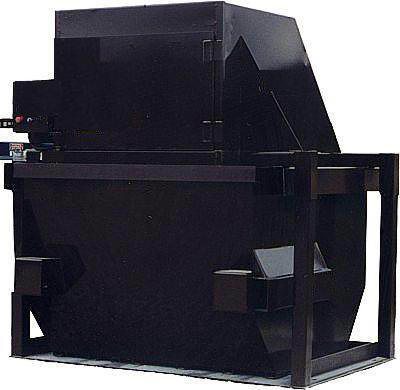

Vertical Outdoor Compactors are
available in several standard sizes and have been designed for a variety of
applications.
|
These compactors, along with the
portable containers (where the trash is collected and compacted) can be
positioned so that they serve as a nearby disposal area, even fed by a thru-wall
chute opening (so that employees do not have to walk outside to make the trash
deposits). Since there are a few models of these compactors that can be equipped with
casters (on the detachable containers) it allows customers to roll the full containers to a location that is
convenient for the hauler to make a pick-up. By having an extra container or
two it means that it is easy to keep the compactors operational at all times.
This basic design is available with container sizes of 2, 3, 4, 6 or 8 cubic
yards (however due to OSHA standards the 2 yard and 3 yard are the only Models
that can be purchased with casters). In addition to substantially reducing waste
processing costs, these outdoor compactors can help reduce or eliminate vermin
as well as leakage associated with wet waste.
In addition to the many
benefits that these Outdoor Compactors offer they are also simple
and safe to operate.
The Control Panels are typically
built into the Compactor but can also be set up for remote operation.
Below are some of the more
important specifications to give attention to as well as some Standard
Specifications and Features as well as Options to consider on the Vertical Outdoor Compactors: |
Vertical Outdoor Compactors - Specification Considerations
of the various models:
Loading Door Opening
Loading Door Height
Cycle Time
Total Force
Total Face Pressure
Ram Penetration
Motor Size
Pump and Oil Capacity
Cylinder Bore Size, Cylinder Rod
Size and Stroke
Steel Construction
Vertical Outdoor Compactors - Types of
Standard Features to consider:
-
Safety Standards
such as ANSI and OSHA
-
Door Safety Interlocks
-
Automatic Single
Cycle Operation
-
Key Lockable Start
Pushbutton
-
Safe to Haul
Indicator Light
-
Front or Rear Feed
-
Heavy Duty
Oil-Tight Pushbutton Controls
-
Container Guide Tracks
Vertical Outdoor Compactors -
Typical Options to consider:
3 Phase or
Single Phase Power
Remote Control
Operation
Odor
Control / Air Sanitizer
Through the
Wall Feed Kits
Right or Left
Side Control Panel
Front or Rear
Loading Container
Security Door
Safe to Haul Indicator Light
Container Guide Track
Vertical Outdoor Compactors - Dimensions by Model
(Note: Dimensions are rounded +/- a few inches)
|
Model |
Height |
Width |
Depth |
Feed Ht |
Container Ht |
Weight |
Container Wt |
|
2VOC |
102 |
95 |
58 |
47 |
47
(with casters) |
3,250 |
725 |
|
3VOC |
85 |
94 |
80 |
47 |
42
(with casters) |
3,500 |
575 |
|
4VOC |
85 |
94 |
80 |
47 |
42 |
3,650 |
775 |
|
6VOC |
97 |
94 |
80 |
59 |
54 |
3,850 |
950 |
|
8VOC |
111 |
94 |
80 |
73 |
69 |
4,150 |
1,250 |
| |
|
|
|
|
|
|
|
|
