3 YARD VERTICAL OUTDOOR COMPACTORS
Three Yard Steel Containers hold roughly 12 - 15 yards of Compacted Trash

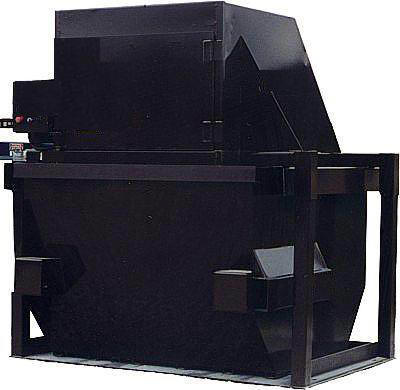

3-VOC - 3 YARD VERTICAL COMPACTOR
Request a Detailed Quote for these Compactors or other information - (Secure Area)
Request an Automated Response with general price information
Jump to Vertical Outdoor Compactors Overview Page showing all Models
3 YARD VERTICAL OUTDOOR COMPACTORS - STANDARD FEATURES
3-VOC Control Panel built into side of Compactor
3-VOC Internal Power Unit
3-VOC Door Safety Interlock
3-VOC Automatic Single-cycle Operation
3-VOC Heavy Duty Oil-tight Pushbutton Controls
3-VOC Key-lockable Start Pushbutton
3-VOC Safe to Haul Indicator Light
3-VOC Container Guide Track
3-VOC Front or Rear Feed
OPTIONAL
3-VOC Through the Wall Feed Kit
3-VOC Right Side Mounted Controls
3-VOC Custom Colors
Note: Our Compactors Preliminary Considerations Checklist may be helpful
COMPACTOR SPECIFICATIONS
3-VOC - Specifications |
||
| Container Capacity | 3VOC-CAP | 3 Cubic Yard |
| Ram Force | 3VOC-RFR | Normal: 25,100 ; Max: 30,200 |
| Ram Face Pressure | 3VOC-RPR | Normal: 10.6 psi ; Max: 12.8 psi |
| Operating Pressure | 3VOC-OPP | Normal: 2000 psi; Max: 2400 psi |
| Cycle Time | 3VOC-CTI | 34 seconds |
| Cylinder | 3VOC-CYL | 4" Bore, 18" Stroke, 2" Rod |
| Ram Penetration | 3VOC-RPN | 29.5" |
| Motor | 3VOC-MTR | 3 hp |
| Pump | 3VOC-PMP | 3 GPM |
| Oil Capacity | 3VOC-OIL | 8 Gallons |
| 3-VOC - Dimensions | ||
| Clear Top Opening | 3VOC-CTO | 33" x 48" |
| Feed Opening | 3VOC-FOP | 28" x 48" |
| Feed Height | 3VOC-FHT | 47" |
| Overall Height | 3VOC-OHT | 85" |
| Overall Depth | 3VOC-ODP | 80" |
| Overall Width | 3VOC-OWD | 94" |
| Shipping Weight - Compactor | 3VOC-WTC | 3,500 lbs. |
| Shipping Weight - Container | 3VOC-WTB | 575 lbs. |
(Note: Dimensions are rounded +/- a few inches)
Model |
Height |
Width |
Depth |
Feed Ht |
Container Ht |
Weight |
Container Wt |
3VOC |
85 |
94 |
80 |
47 |
42 (with casters) |
3,500 |
575 |

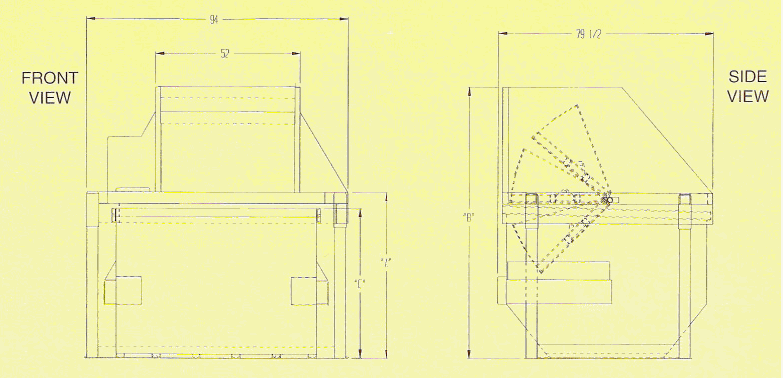

COMPACTOR DIMENSIONS DIAGRAM
Note: Specifications, Dimensions & other product details may vary slightly upon delivery due to continuous product progressions and improvement. If exactness is required on any item(s), confirm in writing before ordering. In our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications, dimensions and other product details without notice. Dimensions indicated are approximate +/- a few inches.
Performance may vary depending upon application.
Products must be installed and operated according to required standards, codes, regulations and safety procedures.
Note: Dimensions may be rounded (and unless indicated) do not include any recommended 'perimeter buffer'.
