EXTRA LOW PROFILE Baler - 60" VERTICAL
Extra Low Profile Baler Features
Safety interlocks and shielding of all shear and pinch points.
700-900 Pound Corrugated Bales
A 30,000 lb truckload is quick
Compaction cycle is fully automatic and all operation is from the from of the machine where the bales are also automatically ejected.
Inexpensive, Easy Installation
Not only can this baler operate under a standard ceiling but it is shipped upright for easy unloading and placement at the delivery location.
Two stage pump requires minimum horsepower.
Lifespan is increased with a control valve that eliminates jarring hydraulic shock
Solid construction with "I" beams and heavy channel
Photo electric eye helps provide fail safe operation of the Ram/Loading door.
60" Extra Low Profile Vertical Baler Specifications
|Bale Size||30" x 60" x up to 30" High|
|Bale Pressure||57,805 lbs.|
|Bale Weight (Corrugated Cardboard)||700-900 lbs.|
|Motor 3PH. 3450 RPM 208/230/460V Energy Efficient||5 HP|
|Cycle Time||33 seconds|
|Loading Door Opening||24" x 60"|
|Unloading Door Height||39"|
|Depth with Door Open||73"|
|Shipping Weight||4,000 Lbs.|
|Required Operating Area||39.5 sq. ft.|

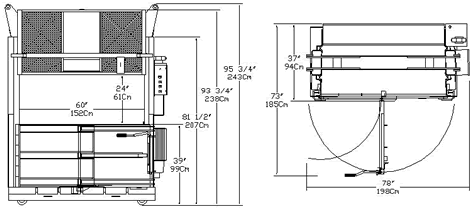

60" Extra Low Profile Vertical Baler Diagram - Model 60-LPVB
Note: Specifications, Dimensions & other product details may vary slightly upon delivery due to continuous product progressions and improvement. If exactness is required on any item(s), confirm in writing before ordering. In our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications, dimensions and other product details without notice.
Performance may vary depending upon application.
Products must be installed and operated according to required standards, codes, regulations and safety procedures.
