EXTRA DENSITY BALER
Optional Rear Chute & Conveyor
Additional Baler Features:
- Powerful 7" cylinder provides extra dense bales.
- 64" Stroke to within 10" from the floor
- Extended Life with 20 Horsepower motor
- Standard retractable bale dogs for maximum material containment
- Dual chain ejectors for extra dense bales
- Torque tube to protect cylinder from uneven compaction forces
- Safety cable prevent platen from falling if disconnected
- No fluffing or material preconditioning necessary before baling
- 7 slots for tying bales
60-EDX - 60" EXTRA DENSITY VERTICAL BALER
Can add Rear Chute and Conveyor
For Rear Chute & Conveyor, refer to Smart Products
60-EDRC Rear Chute or Model 60-EDCV with Conveyor
Request Automated Response with general pricing - (Secure)
Request Info on Multiple Products - (Secure Area)
This baler packs a powerful 7" cylinder for extra dense bales.
This Extra Density Baler is ideal for:
- Recycling Centers
- Supermarkets
- Department Stores
- Retail Stores
- College & Universities
- Transfer Stations
- Hotels / Resorts
- Manufacturing Facilities
- Military Bases
- Shopping Centers
- Other Industrial & Commercial Sites
Comparison Chart on 60" Vertical Balers
Click
here to check out the different balers and the bale weights they produce on
various materials
Bale Weights ( Approx.): |
|
Cardboard |
Up to 1,200 lbs |
Newsprint |
Up to 1,400 lbs |
Aluminum Cans |
Up to 550 lbs |
Plastic |
Up to 900 lbs |
Meets or exceeds all ANSI and OSHA Safety Standards
Extra Density Baler Specifications |
|
| Bale Size | 30" x 60" x 51" |
| Bale Weight | Up to 1,200 Lbs. |
| Ram Pressure | 92,360 lbs. |
| Cycle Time | 39 seconds |
| Cylinder | 7" Bore, 64" Stroke, 4.5" Rod |
| Motor | 20 hp, 1,750 rpm, TEFC |
| Pump | 16 GPM - Fixed Volume Vane |
| Electric Power | 208/230/460 Volt 3 Phase |
| Bale Tying | Wire or Polyethylene Twine |
| Bale Ejection | Hydraulic |
Extra Density Baler Dimensions |
|
| Loading Door Opening | 25"x 60" |
| Loading Door Height from Floor | 57" |
| Overall Height | 166" |
| Depth | 50" |
| Depth with Door Open | 110" |
| Width | 74" |
| Width with Door Open | 78" |
| Shipping Height - Upright (Cylinder Retracted) | 117" |
| Shipping Height On Side | 74" |
| Actual Weight | 6,600 lbs. |
| Required Installation and Operating Area | 68 Sq. Ft. |

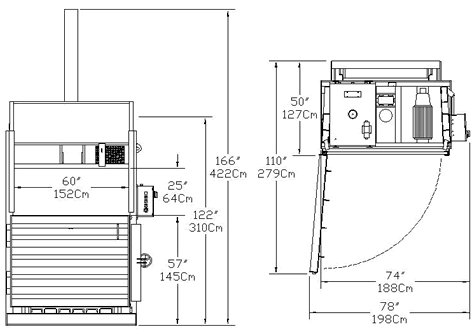

60" Extra Density Vertical Baler Diagram - 60-EDX
Note: Specifications, Dimensions & other product details may vary slightly upon delivery due to continuous product progressions and improvement. If exactness is required on any item(s), confirm in writing before ordering. In our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications, dimensions and other product details without notice.
Performance may vary depending upon application.
Products must be installed and operated according to required standards, codes, regulations and safety procedures.
