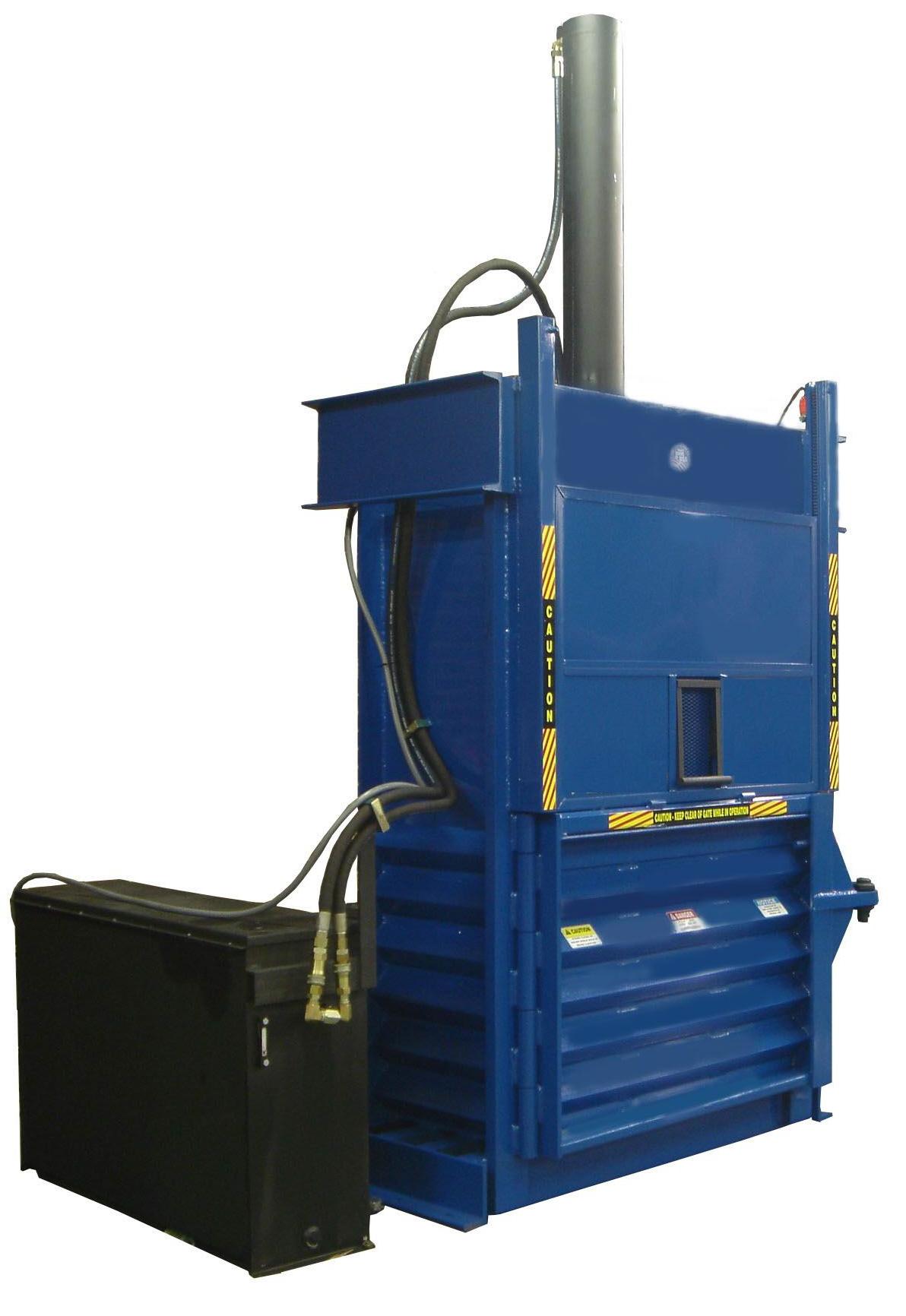

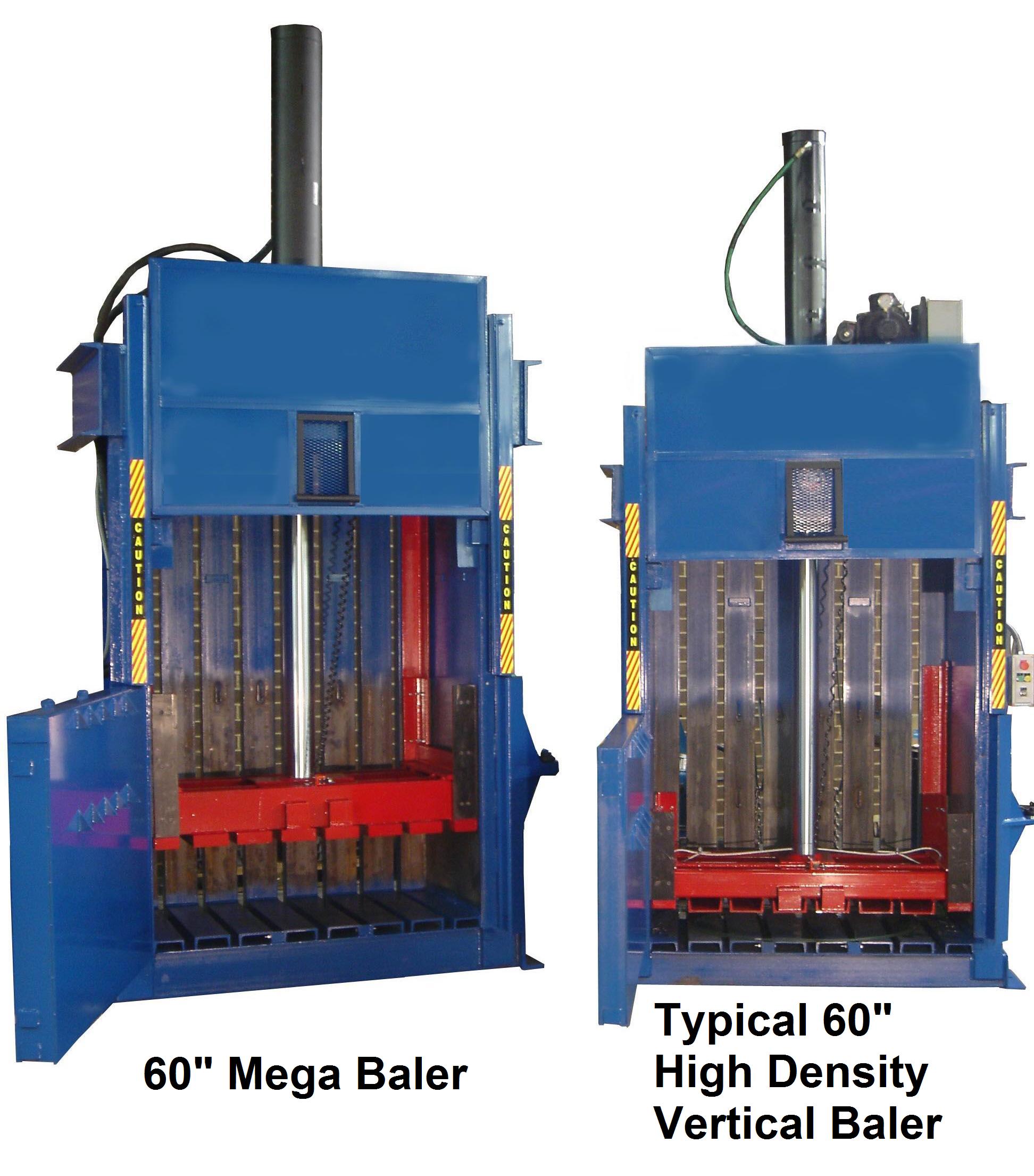

60" Vertical Mega Baler

Incredible Power, Speed & Output

Model 60-4065

Request Detailed Quote or other information - (Secure Area)

Request Automated Response with general price information

For our Lookup Comparison Chart on 60" Vertical Balers Click Here



The Power & Speed of this 60" baler is ideal for:

  • Core Tubes (up to 1,300 lb bales)

  • Radiators (up to 1,600 lb bales)

  • Aluminum Siding (up to 2,300 lb bales)

  • Stainless Steel (up to 3,000 lb bales)

  • Cardboard (up to 1,500 lb bales)

  • PET (up to 1,000 lb bales)

  • Aluminum cans (up to 900 lb bales)

  • Scrap Metals and more.....



With the capabilities of this Baler, it is ideal for a wide range of industrial and commercial applications where very high output and performance is needed from a Vertical Baler.



*MEGA BALER SPECIFICATIONS
Nominal Bale Size 60" x 30" x 48"
Bale Weights (see above) up to 1500 lbs OCC
Average Cycle Time 35 Seconds
Bales Per Day 8
Ejector System Semi-Automatic
Compaction Force lbs. 150,000 lbs
Motor HP 40
Voltage 208, 230, 480
Pump GPM 47
Normal System Pressure PSI 3,000
Cylinder Bore 8"
Cylinder Stroke 65"
Hydraulic Tank-Capacity Gallons 100
Height 161 inches -(13.4')
Depth (with Door Open) 132 inches - (11')
Width 80 inches (6.7')
Weight (with Power Unit) 12,000 lbs



*Other Features Of the Mega Baler
60-4065 >> ETL Listed & Meets ANSI Z245.5
60-4065 >> Counter Balanced Feed Door - 'Easy Open'
60-4065 >> Safety Interlock Circuit on Bale Door and Safety Gate
60-4065 >> Soft Shift, Low Shock Hydraulic Circuit
60-4065 >> Custom Bale Ejection System for Styrofoam
60-4065 >> Customized Chamber
60-4065 >> Designed for easy installation



*Other Options of the Mega Baler
Option Number Description

60-4065-01

 Slotted Discharge Door

60-4065-02

 Single Phase Motor

60-4065-03

 Full Bale Light

60-4065-04

 Oil Heater

60-4065-05

 Front Feed Chute

60-4065-06

 Rear Feed; Front Eject

60-4065-07

 Rear Feed Wire Guide

60-4065-08

 Weather Cover

60-4065-09

 Floppy Dogs

60-4065-10

 Custom Color



* Note: Specifications, Dimensions & other product details may vary slightly upon delivery due to continuous product progressions and improvement. If exactness is required on any item(s), confirm in writing before ordering. In our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications, dimensions and other product details without notice.

• Performance may vary depending upon application.
• Products must be installed and operated according to required standards, codes, regulations and safety procedures.

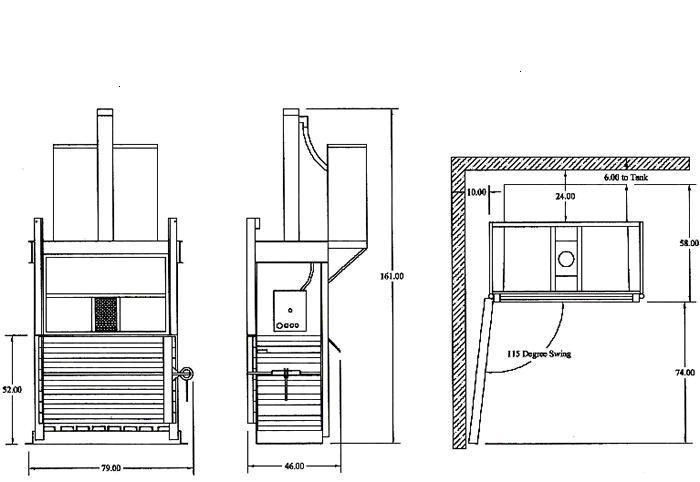

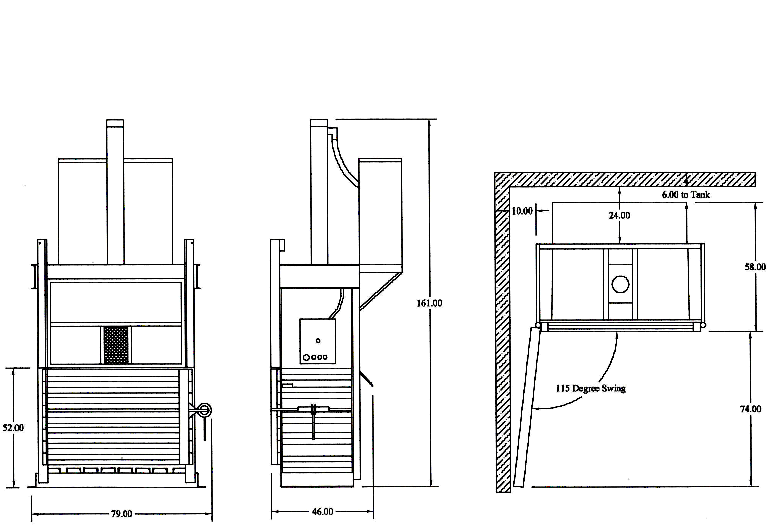

60" Mega Baler Diagram - Model 60-4065

Note: Dimensions may be rounded (and unless indicated) do not include the recommended 'perimeter buffer'.
If exactness is required, confirm in writing prior to ordering.
