For those who are
spending too much time trying to decide between a 30" Baler and a 42" Baler, we have the ideal solution

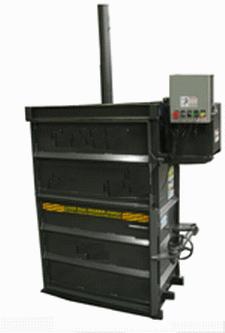

with our 36" Vertical Stock Room Baler.
This Baler is great for cardboard, waste paper,
plastics and metals.
STANDARD FEATURES
- Four slots for tying bales
- Safety Switches
- Meets or Exceeds ANSI & OSHA Safety Standards
- Three year warranty
|
Specifications are
subject to change without notice.
|
Baler Specifications -
Note:
Specs & dimensions may vary slightly
|
Bale Size |
36" x 24" x 30" |
|
Cubic Feet (Bale Size) |
15 |
Bale Weights:
-Cardboard
-Plastic Bottles
|
up to 250 pounds
up to 230 pounds
|
|
Average Cycle Time |
43 Seconds |
|
Compaction Force (lbs) |
10,250 Pounds |
|
Normal System Pressure PSI |
1450 PSI |
|
Cylinder |
3" Bore, 30" Stroke |
|
Motor |
2 HP |
|
Pump GPM |
5 |
|
Electrical Power |
110 /220 Volt, 1 PH |
|
Bale Ejection |
Semi-Automatic (Chain) |
|
Bale Tying |
Wire or Twine - 4 Slots |
Baler Dimensions
|
Chute Door Opening |
36" W x 24 H" |
|
Overall Height |
95" |
|
Depth |
32" |
|
Overall Width |
54" |
|
Depth with door open |
68" |
|
Actual Weight |
1,500 Pounds |
|
Installation and Operating Area |
26 Square Feet |
|
|
|
|
Options: |
Slotted Door, Rear Feed / Front Eject, Full Bale Light, Front Feed
Chute, Oil Heater, Floppy Dogs, Weather Cover, ....more |
|

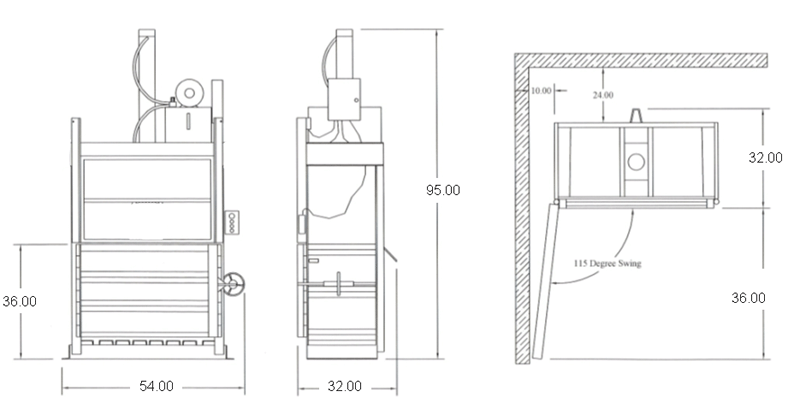

36" Standard Vertical Baler Diagram
|
