Model 60V-15SW - 60" Vertical Baler |
 |
This Shrink Wrap Baler is Ideal for:
|
For our Quick Lookup Comparison Chart on 60" Vertical Balers Click Here
Model 60V-15SW is the perfect choice for an economical Shrink Wrap Baler.
If you have Shrink Wrap that needs to be baled, this Shrink Wrap Baler is Loaded with Power and Features and can provide plenty of benefits and features.
Shrink Wrap Baler - Model 60V-15SW
|
Shrink Wrap Baler Performance |
|||
|
Bale Size |
30” x 48” x 60” |
||
|
Bale Volume |
50 Cubic Feet |
||
|
Cycle Time |
48 Seconds (No Load) |
||
|
Estimated Bale Weights |
|||
|
Material |
Bale Weight |
Density Lbs/Cu Ft – Loose/Baled |
Bales / Hr |
|
Shrink Wrap |
Up to 800 lbs |
1.5 / 16 |
Up to 2 |
|
OCC – Cardboard |
Up to 1,000 Lbs |
2.5 / 24 |
Up to 2 |
|
Shredded ONP - Newspaper |
Up to 1,100 Lbs |
2.5 / 26 |
Up to 2 |
|
Note: Performance Rates, Bale Weights, and Bale Densities are subject to many factors such as Material Pre-Bale Densities, Feed rates, Moisture Content and other variables. |
|||
|
Shrink Wrap Baler Hydraulics |
|
|
Main Pumps |
9.6 GPM @ 1,800 RPM Fixed Volume Vane |
|
System Pressure |
2600 PSI Maximum |
|
Main Cylinder |
6” Bore, 3.5” Rod, 48” Stroke |
|
Ram Face Pressure |
45.26 PSI |
|
Overall Platen Force |
73,502 Lbs |
|
Oil Reservoir |
30 Gallon Capacity |
|
Hydraulic Manifold |
D05 Pattern, Internal Relief Valve Subplate Circuit |
|
Shrink Wrap Baler Electrical |
|
|
Main Motor |
15 HP - 208/230/460v – 3 Phase |
|
Enclosure |
NEMA 12 - Rated |
|
Controls |
UL / CUL Listed |
|
Motor Type |
TEFC High Efficiency |
|
Shrink Wrap Baler Dimensions & Structural |
|
|
Overall Height |
143 |
|
Overall Width |
80 |
|
Overall Depth |
45 |
|
Depth with Door Open |
102 |
|
Frame Design
|
10” Channel Side Rails - 12” Channel Headers |
|
3” x 3” Tube Steel Discharge Door Supports |
|
|
Solid Charge Door - Cross Broken |
|
|
8 Pieces of 4” Channel in Sub Floor |
|
|
Feeding Opening |
27” x 60” Charge Dimensions 23” x 60” |
|
Weight |
5,000 lbs |
|
Other Features of the Shrink Wrap Baler |
|
UL Listed Controls |
| Baler meets or exceeds all ANSI Z245.5 and OSHA standards. |
| Baler has NEMA 12 |
| Bale Height Adjustable |
| Safety Interlock Circuit on Bale Door & Safety Gate |
| Counterbalanced Feed Door for Easy Open |
| 3 – 6” Retainer Bale Dogs Front and Back |
|
Soft Shift, Low Shock Hydraulic Circuit |
| Dual Chain Semi-Automatic Bale Ejection System |
| Platen Roller Guides |
| Spring Doors |
| Factory Wired for Easy Installation |
| A-36 structural frames. A-514 reinforced in high stress areas. Strong rigid container walls provide performance & longer life span. A-1018 used for gib bar, guide and control surfaces. |
|
Other Options of the Shrink Wrap Baler |
|
|
Option Number |
Description |
|
60V-15SW-01 |
Slotted Discharge Door |
|
60V-15SW-02 |
Single Phase Motor (Only available on 10 HP Balers) |
|
60V-15SW-03 |
Front Load – Rear Eject |
|
60V-15SW-04 |
Oil Heater |
|
60V-15SW-05 |
Special Voltage – 575V |
|
60V-15SW-06 |
Sharks Teeth |
|
60V-15SW-07 |
Weatherproof |
|
60V-15SW-08 |
Drum Crusher |
|
60V-15SW-09 |
Heavy Duty Package (Beefed up Frame etc) |
|
* Note: Specifications, Dimensions & other product details may vary slightly upon delivery due to continuous product progressions and improvement. If exactness is required on any item(s), confirm in writing before ordering. In our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications, dimensions and other product details without notice. • Performance may vary
depending upon application. |

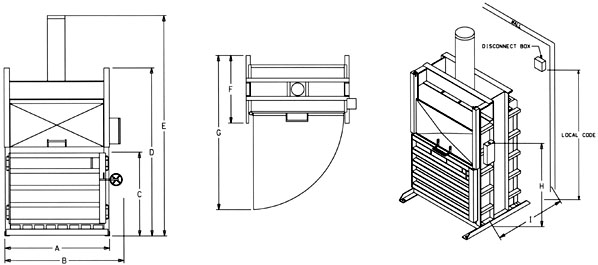

Shrink Wrap Baler Diagram - Model 60V-15SW
A = 68" B = 80" C = 54" D = 108" E = 143" F = 45" G = 102" H = 76" I = 54"
Note: Dimensions may be rounded
(and unless indicated) do not include any recommended 'perimeter
buffer'.
If exactness is required, confirm in writing prior to ordering.
|
