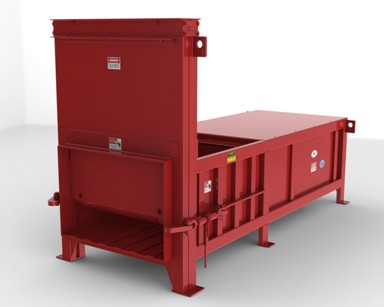

PRE Crusher Compactors for Bulk Materials
Reference Guide
Five Models of Pre-Crusher Compactors Plus a Variety of Options
 |
Bulk Crushers | Pre-Crushers | Compactors are ideal for:
- General Manufacturing Industry
- Auto Industry
- Appliance Industry
- Aerospace Industry
- Construction Industry
- Manufactured Housing
- Boat Manufacturers
- Department Stores
- Many other Industrial and Commercial applications.
To view more specific information on each of the models choose from below:
3 Yard Single Ram Pre Crusher Compactor
4 Yard Single Ram Pre Crusher Compactor
5 Yard Single Ram Pre Crusher Compactor
5 Yard Double Ram Pre Crusher Compactor
7 Yard Double Ram Pre Crusher Compactor
Note: Our Preliminary Considerations Checklist forCompactors and Crushers / Pre-Crushers may be helpful
Bulk Pre Crusher Compactors) are available in five standard sizes. In addition there are a large variety of options to choose from which includes hoppers, chutes, walk-on or drive on ramps, guard rails, advanced automation, multi-cycle timers and many other items that are designed to meet a broad range of diverse needs.
Bulk Pre Crusher Compactors are typically used for very tough refuse or trash profiles such as pallets, crates, appliances, Waste_Recycling_Articles.htms, auto parts, manufactured housing parts, boat parts, and other large, hard to handle materials. As far as functionality they are similar to Stationary Compactors in that they work in conjunction with a detachable 'receiver container' that is heavily reinforced in order to be able to withstand the tremendous force that is exerted from a Bulk Crusher (versus that of a Stationary Compactor). The Bulk Crushers / Compactors are designed to produce tremendous force for crushing almost anything that is typically diverted from the normal waste streams such as construction refuse, appliances, and other similar bulky items. The quality and compaction force that is provided in both the single ram and two ram series is tops in the industry. In addition, one of the most important features is the corrugated floor and sides which not only helps add strength, but also helps to prevent refuse from lodging under the ram.
Bulk Pre Crusher Compactors - Basic Specs to Consider:
- Corrugated Floor and Sides
- Total Force (Normal & Maximum)
- Operating Pressure (Normal & Maximum)
- Charge Box Capacity
- Clear Top Opening
- Cycle Time
- Ram Penetration
- Motor Size
- Cylinder(s) Bore Size, Cylinder Rod Size and Stroke
- Construction of the Floor, Sides, Breaker Bar, Ram Face, Ram Top, Sides and Bottom
Bulk Pre Crusher Compactors - Main Standard Features:
- UL Listed Control Panel
- Remote Power Unit
- TEFC Electric Motor
- Compactor / Pre Crusher Mode
- Manual Mode Operator
- Power On Light
- 75% Full Light
- 100% Full Light
- Oil Temperature Shutdown
- Remote Power Unit including weather cover
- Spin On Oil Filter
- Oil Sight Guage
- Turnbuckles
- Container Hooks
- Tongue and Groove Chamber Floor
- More .....
Bulk Pre Crusher Compactors - Options to consider:
- Hoppers
- Chutes
- Walk On Ramps
- Drive on Ramps
- Guard Rails
- Multi-Cycle Operation
- Auto-Cycle Operation
- Full Remote Controls
- Oil Heater / Oil Cooler
- Pressure Guage
- Lockable Relief Valve
- Guide Islands
- More ....
Bulk Pre Crusher Compactors - Main Specifications & Dimensions
Model # >> |
PC-3000 |
PC-4000 |
PC-5100 |
PC-5200 |
PC-7000 |
Single Ram |
Single Ram |
Single Ram |
Two Ram |
Two Ram |
|
| Charge Box Capacity | 3 |
4 |
5 |
5 |
7 |
| NSWMA Rating (Cubic Yards) | 2.70 |
3.2 |
4.52 |
4.52 |
5.36 |
| Clear Top Opening (L X W) | 60.5" x 58.5" | 60.5" x 58.5 | 93" x 58" | 93" x 58" | 93" x 70" |
| Cycle Time - Pre-Crusher Mode | 92 |
71 |
60 |
72 | 72 |
| Cycle Time - Compactor Mode | 56 | 41 | 32 | 44 | 44 |
| Total Force - Normal | 77,000 | 77,000 | 77,000 | 104,600 | 104,600 |
| Total Force - Maximum | 92,400 | 92,400 | 92,400 | 127,200 | 127,200 |
| Operating Pressure - Normal | 2000 | 2000 | 2000 | 1850 | 1850 |
| Operating Pressure – Maximum | 2400 | 2400 | 2400 | 2250 | 2250 |
| Ram Face Pressure - Normal | 43.5 | 37.2 | 37.2 | 50.5 | 42.1 |
| Ram Face Pressure - Maximum | 52.2 | 44.6 | 44.6 | 61.5 | 51.3 |
| Ram Penetration | 15 HP |
20 HP |
30 HP |
30 HP |
30 HP |
| Motor | 14" |
14" |
17" |
17" |
17" |
| Cylinder Bore | 7 | 7 | 7 | Two 6" | Two 6" |
| Cylinder Rod | 4" | 4" | 4" | 4" | 4" |
| Cylinder Stroke | 86" | 86" | 120" | (Two) 120" | (Two) 120" |
| Gate Cylinder | 3.5" x 2" x 41.5" | 3.5" x 2" x 41.5" | 3.5" x 2" x 41.5" | 3.5" x 2" x 41.5" | 3.5" x 2" x 41.5" |
| Pump Capacity | 25.5 gpm Hi Lo | 34.5 gpm Hi Lo | 63 gpm Hi Lo | 63 gpm Hi Lo | 63 gpm Hi Lo |
| Oil Reservoir | 80 gpm | 100 gpm | 180 gpm | 180 gpm | 180 gpm |
| Ram Fac Dimensions W x H | |||||
| Unit Weight | 15,000 |
15,550 | 20,000 | 21,000 | 23,500 |
Main Dimensions |
|||||
| Overall Width | 73" | 73" | 73" | 73" | 85" |
| Clear Top Opening L X D | 60.5 x 58" | 60.5 x 58.5" | 93 x 58" | 93 x 58" | 93 x 70" |
| Discharge Opening H x W | 43 1/4" X 61 " | 43.5 x 6" | 43 /4 x 6" | 43 /4 x 61" | 43 /4 x 73" |
Chamber Depth |
35.5" | 39" | 39" | 39" | 39" |
| Compactor Frame Height | 49.25" | 55" | 55" | 55" | 55" |
