Extra Low Profile Multi-Purpose Vertical Baler
Only 90 inches (7.5 ft) tall with bale weights up to 1,000 pounds
XLP-4831 - Extra Low Profile Multi-Purpose Baler
Request Automated Response with general pricing - (Secure)
Request Info on Multiple Products - (Secure Area)
For baler applications where ceiling heights are 8' and low noise is needed this baler is ideal and can generate bale weights of up to 1,000 pounds of plastic wrap, 775 pounds of cardboard, 360 lbs of PET and Aluminum Cans and up to 1200 lbs of clothes.
Very versatile baler that produces dense bales of
many different materials
Also has Automatic Ejection System so there is no need to go behind the machine (which can be placed up against the wall).
Built-In Modem System for remote Diagnotics
EXTRA LOW PROFILE MULTI-PURPOSE VERTICAL BALER
Baler can be placed flush against the wall since bale removal and bale strapping can be performed from the front.
ULŪ & CULŪ Listed Control Panel. Meets and exceeds
ANSI
Standards Z245.5 and OSHA Safety Standards
|
Footprint of only 50 Square Feet (with the door open)
Low Noise Level - Only 59 - 60 db Simple, Straight-Forward Design Easy to Operate Very small ceiling height requirements Very low ceiling height requirements |
LOW PROFILE MULTI-PURPOSE BALER SPECIFICATIONS
Extra Low Profile Mini-Baler Baler General Information |
|
| Bale Size | 48" W x 31" D x 39" H |
| Bale Weights: Cardboard | Up to 600 to 775 lbs |
| Bale Weights: Plastic Wrap | Up to 775 - 1000 lbs |
| Bale Weights: PET | 270 - 360 lbs |
| Bale Weights: Aluminum Cans | 270 - 360 lbs |
| Bale Weights: Clothes | 550 - 1200 lbs |
| Pressing Force | Up to 66200 Pounds |
| Cycle Time | 25 Seconds |
| Stroke | 37" |
| Motor | 5.5 HP - Three Phase |
| Electrical Power | 208v; 230v; 460v |
Extra
Low Profile Mini-Baler Baler Dimensions & Weight |
|
| Loading / Feed Door | 43" W X 26" H |
| Feed Height | 45" |
| Overall Operating Height | 91" |
| Depth | 50" |
| Depth (with door open) | 98" |
| Width (with door open) | 74" (69" Door Closed) |
| Footprint (Depth with Door Open) | 50 Square Ft (Does not include any buffer) |
| Actual Weight (Approx) | 4000 Pounds |
| Options | Special Electrical |

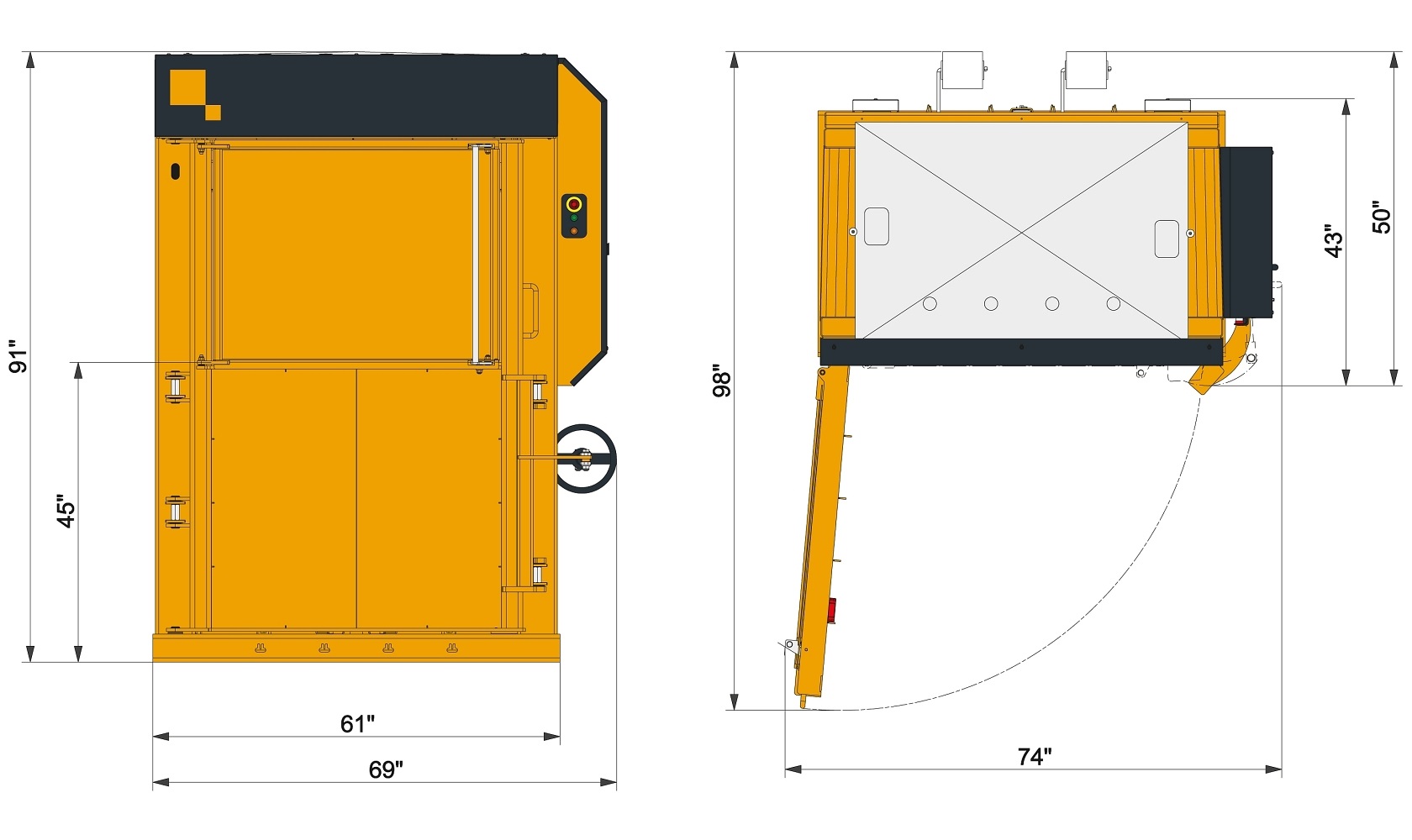

LOW PROFILE MULTI-PURPOSE BALER DIAGRAM
Note: Specifications, Dimensions & other product details may vary slightly upon delivery due to continuous product progressions and improvement. If exactness is required on any item(s), confirm in writing before ordering. In our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications, dimensions and other product details without notice.
Performance may vary depending upon application.
Products must be installed and operated according to required standards, codes, regulations and safety procedures.
