LOW PROFILE BALER

60" Vertical Baler for Low Ceiling Heights

This low profile baler fits your needs when ceiling height is minimal.  This baler can be used in rooms where the ceiling height is 9 feet or more.

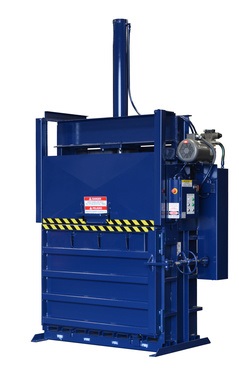

Low Profile 60" Baler

Read about Balers



                          60-104LP LOW PROFILE BALER

                          Low Profile Economy Baler Model 60-ELP6



Request Automated Response with general pricing - (Secure)

Request Info on Multiple Products - (Secure Area)

This 60" Low Profile Baler is ideal for applications involving low ceiling heights.

Comparison Chart on 60" Vertical Balers


Click here to check out the different balers and the bale weights they produce on various materials

*60" Low Profile Baler - Performance Information

Bale Size                    60-104LP

30” x  36” x  60”

Bale Volume              60-104LP

37.5 Cubic Feet

Cycle Time                 60-104LP

25 Seconds (No Load)

Estimated Bale Weights

Material

Bale Weight

Density Lbs/Cu Ft – Loose/Baled

Bales / Hr

OCC – Cardboard

Up to 750 Lbs

2.5 / 20

Up to 2

Shredded ONP - Newspaper

Up to 800 Lbs

4 / 23

Up to 2

Note: Performance Rates, Bale Weights, and Bale Densities are subject to many factors such as Material Pre-Bale Densities, Feed rates, Moisture Content and other variables.



*60" Low Profile Baler Hydraulics

Main Pumps                   60-104LP

9.8 GPM @ 1,800 RPM Fixed Volume Vane

System Pressure           60-104LP

2200 PSI Maximum

Main Cylinder                  60-104LP

6” Bore, 3.5” Rod,  30” Stroke

Ram Face Pressure      60-104LP

38.30 PSI

Overall Platen Force      60-104LP

62,194 Lbs

Oil Reservoir                   60-104LP

20 Gallon Capacity

Hydraulic Manifold         60-104LP

D05 Pattern, Internal Relief Valve Subplate Circuit

*60" Low Profile Baler Electrical

Main Motor                      60-104LP

15 HP  -  208/230/460v – 3 Phase     (10HP if Single Phase)

Enclosure                       60-104LP

NEMA 12 - Rated

Controls                          60-104LP

UL / CUL Listed

Motor Type                      60-104LP

TEFC High Efficiency



*60" Low Profile Baler - Dimensions & Structural

Overall Height                        60-104LP

104

Overall Width                         60-104LP

78

Overall Depth                         60-104LP

45

Depth with Door Open         60-104LP

101

Frame Design                      60-104LP

10” Channel Side Rails  - 12” Channel Headers

3” x 3” Tube Steel Discharge Door Supports

Solid Door Charge

8 Pieces of 4” Channel in Sub Floor

Feeding Opening                  60-104LP

24” x 60”   Charge Dimensions 20” x 60”

Weight                                     60-104LP

4,200 lbs



*Other Features of the 60" Low Profile Baler

60-104LP

UL Listed (see Electrical chart above)
60-104LP Product meets or exceeds all ANSI Z245.5 and OSHA standards.
60-104LP NEMA 12
60-104LP Bale Height Adjustable
60-104LP Safety Interlock Circuit on Bale Door & Safety Gate
60-104LP Counterbalanced Feed Door for Easy Open
60-104LP 3 – 6” Retainer Bale Dogs Front and Back

60-104LP

Soft Shift, Low Shock Hydraulic Circuit
60-104LP Dual Chain Semi-Automatic Bale Ejection System
60-104LP Platen Roller Guides
60-104LP Spring Doors
60-104LP Factory Wired for Easy Installation
60-104LP A-36 structural frames. A-514 reinforced in high stress areas. Strong rigid container walls provide performance & longer life span. A-1018 used for gib bar, guide and control surfaces.



*Other Options of the 60" Low Profile Downstroke Baler

Option Number

Description

60-104LP-01

Slotted Discharge Door

60-104LP-02

Single Phase Motor   (Only available on 10 HP Balers)

60-104LP-03

Front Load – Rear Eject

60-104LP-04

Oil Heater

60-104LP-05

Special Voltage – 575V

60-104LP-06

Sharks Teeth

60-104LP-07

Weatherproof

60-104LP-08

Drum Crusher

60-104LP-09

Extra Heavy Duty Package (Heavily beefed up Frame etc)

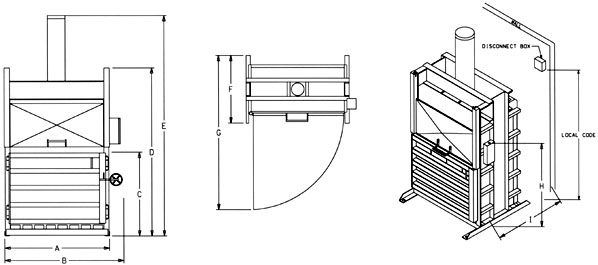

60" Low Profile Baler Diagram -  60-104LP

A = 67"         B = 78"        C = 41"        D = 81"        E = 104"        F = 45"        G = 101"        H = 61"        I = 54"

Low Profile Baler Diagram
