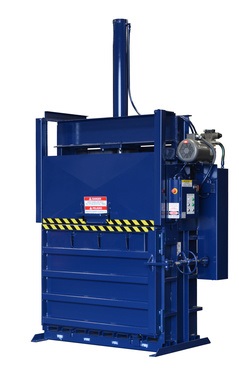

High Density Baler - 48" Vertical |
|
|
Model 48-1548 |
|
When space is limited, but you need something more than a small baler, this medium size 48" High Density Baler is a great choice. |
|
|
For our Lookup Comparison Chart on 48" Vertical Balers Click Here
|
48" High Density Vertical Baler Performance Information |
|||
|
Bale Size |
30” x 48” x 48” |
||
|
Bale Volume |
40 Cubic Feet |
||
|
Cycle Time |
48 Seconds (No Load) |
||
|
Estimated Bale Weights |
|||
|
Material |
Bale Weight |
Density Lbs/Cu Ft – Loose/Baled |
Bales / Hr |
|
OCC – Cardboard |
Up to 900 Lbs |
2.5 / 24 |
Up to 2 |
|
Shredded ONP - Newspaper |
Up to 1,000 Lbs |
4 / 26 |
Up to 2 |
|
|
|
|
|
|
Note: Performance Rates, Bale Weights, and Bale Densities are subject to many factors such as Material Pre-Bale Densities, Feed rates, Moisture Content and other variables. |
|||
|
48" High Density Vertical Baler Hydraulics |
|
|
Main Pumps |
9.8 GPM @ 1,800 RPM Fixed Volume Vane |
|
System Pressure |
2600 PSI Maximum |
|
Main Cylinder |
6” Bore, 3.5” Rod, 48” Stroke |
|
Ram Face Pressure |
57.07 PSI |
|
Overall Platen Force |
73,502 Lbs |
|
Oil Reservoir |
30 Gallon Capacity |
|
Hydraulic Manifold |
D05 Pattern, Internal Relief Valve Subplate Circuit |
|
48" High Density Vertical Baler Electrical |
|
|
Main Motor |
15 HP - 208/230/460v – 3 Phase |
|
Enclosure |
NEMA 12 - Rated |
|
Controls |
UL / CUL Listed |
|
Motor Type |
TEFC High Efficiency |
|
48" High Density Vertical Baler - Dimensions & Structural |
|
|
Overall Height |
143 |
|
Overall Width |
68 |
|
Overall Depth |
45 |
|
Depth with Door Open |
90 |
|
|
10” Channel Side Rails - 12” Channel Headers |
|
3” x 3” Tube Steel Discharge Door Supports |
|
|
Solid Door Charge |
|
|
8 Pieces of 4” Channel in Sub Floor |
|
|
Feeding Opening |
27” x 48” Charge Dimensions 23” x 48” |
|
Weight |
4,800 lbs |
|
Other Features of the 48" High Density Vertical Baler |
|
UL Listed |
| Product meets or exceeds all ANSI Z245.5 and OSHA standards. |
| Product has NEMA 12 |
| Bale Height Adjustable |
| Safety Interlock Circuit on Bale Door & Safety Gate |
| Counterbalanced Feed Door for Easy Open |
| 3 – 6” Retainer Bale Dogs Front and Back |
|
Soft Shift, Low Shock Hydraulic Circuit |
| Dual Chain Semi-Automatic Bale Ejection System |
| Platen Roller Guides |
| Spring Doors |
| Factory Wired for Easy Installation |
| A-36 structural frames. A-514 reinforced in high stress areas. Strong rigid container walls provide performance & longer life span. A-1018 used for gib bar, guide and control surfaces. |
|
Other Options of the 48" High Density Vertical Baler |
|
|
Option Number |
Description |
|
48-1548-01 |
Slotted Discharge Door |
|
48-1548-02 |
Single Phase Motor (Only available on 10 HP Balers) |
|
48-1548-03 |
Front Load – Rear Eject |
|
48-1548-04 |
Oil Heater |
|
48-1548-05 |
Special Voltage – 575V |
|
48-1548-06 |
Sharks Teeth |
|
48-1548-07 |
Weatherproof |
|
48-1548-08 |
Drum Crusher |
|
48-1548-09 |
Extra Heavy Duty Package (Heavily beefed up Frame etc) |
|
* Note: Specifications, Dimensions & other product details may vary slightly upon delivery due to continuous product progressions and improvement. If exactness is required on any item(s), confirm in writing before ordering. In our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications, dimensions and other product details without notice. • Performance may vary
depending upon application. |
48" High Density Vertical Baler Diagram - Model 48-1548
A = 54" B = 68" C = 54" D = 108" E = 143" F = 45" G = 90" H = 76" I = 54"
Note: Dimensions may be rounded (and unless
indicated) do not include the recommended 'perimeter buffer'.
If exactness is required, confirm in writing prior to ordering.
|
