SMALL GRANULATORS
Great for small electronic pieces, nylon fibers, ABS,
acrylic, AS and PS ......
SMALL GRANULATOR
Request Automated Response with general pricing -
(Secure) - Select Model below:
GCW-100
Request Info on Multiple Products - (Secure Area)
Main Features
- Small Footprint
Separate crushing area facilitates cleaning
Built-In Emergency safety switch

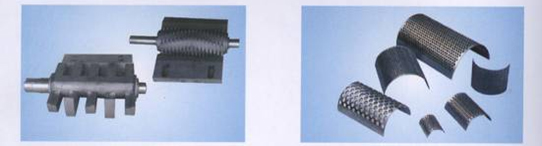

Special construction of tools for longer life -
Fast Cutter replacement
Easy Cleaning and maintenance -
Low noise & speed for low decibles environment
Quick screen changes
3 Phase Electrical
This small granulator is great for small electronic product pieces, nylon fibers, ABS, acrylic, AS and PS etc.
The resulting particle size is adjustable based on screen selections.
The primary destruction and finer granulation are accomplished at the same time which increaes work efficiency.
To read a short article about Small Grinders, Shredders & Granulator Click this link
GCW-100 Specifications
| Imperial | Metric | |
| Main Motor | 3 HP |
2.2 KW |
| Electricity | Three Phase
460v 60 Hz |
460 v
60 Hz |
| Feed Opening | 9.8"
x 11.4" |
250 mm x
290 mm |
| Throughput / Capacity | 40 - 65 lbs / Hr | 18 - 30 kg / hr |
| RPM | 36 RPM |
36 rpm |
| Holding Size / Contents | 65 lbs | 30 kg |
| Machine Size (Rounded) |
38" x 14" x 49" |
950 mm x 350 mm x 1230 mm |
| Machine Weight | 500
lbs |
230 kg |
