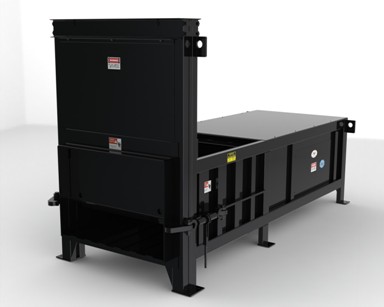

5 YARD TWO RAM INDISTRIAL PRE CRUSHER COMPACTOR
For Bulky Trash Profiles
PC-5200 - 5 YARD 2 RAM INDUSTRIAL PRE CRUHSER COMPACTOR
5 YARD TWO RAM INDUSTRIAL PRE CRUSHER COMPACTOR SPECIFICATIONS
5 Yard 2 Ram Industrial Pre Crusher Compactors – Specifications |
|
Charge Box Capacity |
5 YD |
| NSWMA Rating (Cubic Yards) | 4.52 |
Clear Top Opening (L X W) |
60.5 x 58.5 |
Cycle Time - Pre-Crusher Mode |
72 seconds |
| Cycle Time - Compactor Mode | 44 Seconds |
Total Force - Normal |
104,600 |
Total Force - Maximum |
127,200 |
Operating Pressure - Normal |
1850 psi |
Operating Pressure – Maximum |
2250 psi |
| Ram Face Pressure - Normal | 50.5 psi |
| Ram Face Pressure - Maximum | 61.5 psi |
Ram Penetration |
17” |
Motor |
30 HP |
Cylinder Bore - Two Rams |
6” |
| Cylinder Rod - Two Rams | 4” |
Cylinder Stroke - Two Rams |
120 |
Gate Cylinder |
3.5" x 2" x 41" |
| Pump Capacaity | 63 gpm Hi-Lo |
Oil Reservoir |
180 Gallons |
| Ram Face Dimensions W x H | 60" x 35" |
Unit Weight |
21,000 lbs |
5 YARD INDUSTRIAL PRE CRUSHER COMPACTOR DIMENSIONS
5 Yard 2 Ram Pre Crusher Compactors – Dimensions |
|
Overall Length |
264” |
| Overall Width | 81 |
| Clear Top Opening L X W | 93" x 56 |
| Discharge Opening H x W | 43 1/2" x 61 1/2" |
Chamber Depth |
40" |
| Compactor Frame Height | 55" |
5 Yard 2 Ram Industrial Pre Crusher Compactors - Options |
Electrical / Hydraulic Options |
5200-05 - Electrical Change to 575 Volt - (208 / 230 / 460 is Standard) |
520006 - 20 HP 200 / 400 Volt Motor (In lieu of standard - For 208 volt system) |
5200-07 - 40 GPM Oil Cooler (In return hydraulic line) |
5200-08 - Pre-Crusher Change Over to Compactor (With toggle switch in controller relay box) |
5200-09 - Multi-Cycle Timer - Zero Seconds to 12 Minutes - Note: Must Order with Change over to Compactor toggle |
| 5200-10 - Key Selector Switch Button - 1st Button 'PreCrusher - Compactor' - (Requires 9 button control pendant vs Standard 6 button ) |
5200-11 - Manual Operation Changed to Hold to Operate with Toggle - Requires Change over to Compactor Toggle |
5200-12 - Manual Operation Changed to Hold to Operate with Key Selector Switch - Requires Key Selector Switch & 9 button control vs 6 |
5200-13 - Pressure Gauge |
5200-14 - 3 / 4 Full lIight in Center of 1st Row of Buttons - Requires 9 Button Control Pendant in lieu of Standard 6 button |
5200-15 - 1500 Watt 115 V Thermostat Controlled Oil Heater Set at 55 - 60 Degress - Requires separate 115v electric line |
5200-16 - 500 Watt 115 V Thermostat Controlled Oil Heater Set at 55 - 60 Degress - Requires separate 120v electric line |
5200-17 - Low Oil Level, High Temperature Shut-Off - With Indicator light |
5200-18 - Electric Motor Hour Meter - Note: Inside Controller Box |
5200-19 - Additional Sealtite Electric Cable - Per foot charge for Override Station & Per Foot Charge for Main Controls |
5200-20 - Additional Hydraulic Hose for External Power Pack - Per foot - Requires two 1" Lines for the ram and two 3/4" lines for the gate |
Hopper / Container Options |
5200-30 - 32" High Side Loading Hopper |
5200-31 - 42" High End-Loading Hopper |
5200-32 - End Loading Hopper Gate with Electric Interlock - Right Side or left Side |
5200-33 - Electric Interlock Switch with 14' Sealtite - Note: Specify wired into relay box or limit switch |
5200-34 - Remote Emergency Stop Button in Single Hole Box (With 14' Sealtite) |
5200-35 - 42" High Guard Rail with Toe Board. - Note: To be used without Hopper and without 24" ramp extension |
5200-36 - 42" High Guard Rail with Toe Board. - Note: To be used without Hopper and with 24" ramp extension |
5200-37 - 42" High Guard Rail with Toe Board. - Note: To be used with Hopper and without 24" ramp extension |
5200-38 - 42" High Guard Rail with Toe Board. - Note: To be used with Hopper and with 24" ramp extension |
| 5200-39 - Guard Rail Pockets - Note Guard Rails shipped separately |
Installation Prep / Enclosure / Chute Options |
| 5200-40 - Guide Angles |
| 5200-41 - Center Feet & Legs |
| 5200-42 - Weather Cover for Power Unit |
Deck Options |
| 5200-50 - 24" Walk On Ramp Extension |
| 5200-51 - 24" Walk On Ramp Extension for 10,000# Drive-On Decks |
| 5200-52 - 24" Walk On Ramp Extension for 20,000# Drive-On Decks |
| 5200-53 - 48" High 10,000# Drive-On Deck to be used with or without Hopper |
| 520054 - 48" High 20,000# Drive-On Deck to be used with or without Hopper |
| 5200-55 - 54" High 10,000# Drive-On Deck to be used with Hopper |
| 5200-56 - 54" High 10,000# Drive-On Deck to be used without Hopper |
| 5200-57 - 54" High 20,000# Drive-On Deck to be used with Hopper |
| 5200-58 - 54" High 20,000# Drive-On Deck to be used without Hopper |
A = " B = " C = " D = " E = "
Note: Dimensions may be rounded (and unless indicated) do not include any recommended 'perimeter buffer'.
If exactness is required, confirm in writing prior to ordering.
