3 YARD
PRE CRUSHER COMPACTOR
For Bulky Trash Profiles

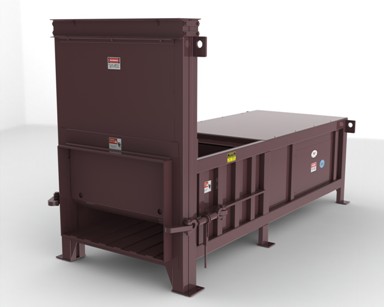

PC-3000 - PRE- CRUSHER COMPACTOR
3 YARD PRE CRUSHER COMPACTOR SPECIFICATIONS
3 Yard Pre Crusher Compactors – Specifications |
|
Charge Box Capacity |
3 YD |
| NSWMA Rating (Cubic Yards) | 2.70 |
Clear Top Opening (L X W) |
60.5 x 58.5 |
Cycle Time - Pre-Crusher Mode |
92 seconds |
| Cycle Time - Compactor Mode | 56 Seconds |
Total Force - Normal |
77,200 |
Total Force - Maximum |
92,400 |
Operating Pressure - Normal |
2000 psi |
Operating Pressure – Maximum |
2400 psi |
| Ram Face Pressure - Normal | 43.5 psi |
| Ram Face Pressure - Maximum | 52.2 psi |
Ram Penetration |
14” |
Motor |
15 HP |
Cylinder Bore - Two Rams |
7” |
| Cylinder Rod - Two Rams | 4” |
Cylinder Stroke - Two Rams |
86 |
Gate Cylinder |
3.5" x 2" x 41.5" |
| Pump Capacaity | 25.5 gpm Hi-Lo |
Oil Reservoir |
105 Gallons |
| Ram Face Dimensions W x H | 60" X 29 1/2" |
Unit Weight |
15,000 lbs |
3 YARD PRE CRUSHER COMPACTOR DIMENSIONS
|
3 Yard Pre Crusher Compactors – Dimensions |
|
Overall Length |
185” |
| Overall Width | 81" |
| Clear Top Opening L x W | 61" X 57 |
| Discharge Opening H x W | 43 1/2" x 61 1/2 |
Chamber Depth |
34 " |
| Compactor Frame Height | 49 1/2" |
3 Yard Pre Crusher Compactors - Options |
Electrical / Hydraulic Options |
3000-05 - Electrical Change to 575 Volt - (208 / 230 / 460 is Standard) |
3000-06 - 20 HP 200 / 400 Volt Motor (In lieu of standard - For 208 volt system) |
3000-07 - 40 GPM Oil Cooler (In return hydraulic line) |
3000-08 - Pre-Crusher Change Over to Compactor (With toggle switch in controller relay box) |
3000-09 - Multi-Cycle Timer - Zero Seconds to 12 Minutes - Note: Must Order with Change over to Compactor toggle |
| 3000-10 - Key Selector Switch Button - 1st Button 'PreCrusher - Compactor' - (Requires 9 button control pendant vs Standard 6 button ) |
3000-11 - Manual Operation Changed to Hold to Operate with Toggle - Requires Change over to Compactor Toggle |
3000-12 - Manual Operation Changed to Hold to Operate with Key Selector Switch - Requires Key Selector Switch & 9 button control vs 6 |
3000-13 - Pressure Gauge |
3000-14 - 3 / 4 Full lIight in Center of 1st Row of Buttons - Requires 9 Button Control Pendant in lieu of Standard 6 button |
3000-15 - 1500 Watt 115 V Thermostat Controlled Oil Heater Set at 55 - 60 Degress - Requires separate 115v electric line |
3000-16 - 500 Watt 115 V Thermostat Controlled Oil Heater Set at 55 - 60 Degress - Requires separate 120v electric line |
3000-17 - Low Oil Level, High Temperature Shut-Off - With Indicator light |
3000-18 - Electric Motor Hour Meter - Note: Inside Controller Box |
3000-19 - Additional Sealtite Electric Cable - Per foot charge fo Override Station & Per Foot Charge for Main Controls |
3000-20 - Additional Hydraulic Hose for External Power Pack - Per foot - Requires two 1" Lines for the ram and two 3/4" lines for the gate |
Hopper / Container Options |
3000-30 - 32" High Side Loading Hopper |
3000-31 - 42" High End-Loading Hopper |
3000-32 - End Loading Hopper Gate with Electric Interlock - Right Side or left Side |
3000-33 - Electric Interlock Switch with 14' Sealtite - Note: Specify wired into relay box or limit switch |
3000-34 - Remote Emergency Stop Button in Single Hole Box (With 14' Sealtite) |
3000-35 - 42" High Guard Rail with Toe Board. - Note: To be used without Hopper and without 24" ramp extension |
3000-36 - 42" High Guard Rail with Toe Board. - Note: To be used without Hopper and with 24" ramp extension |
3000-37 - 42" High Guard Rail with Toe Board. - Note: To be used with Hopper and without 24" ramp extension |
3000-38 - 42" High Guard Rail with Toe Board. - Note: To be used with Hopper and with 24" ramp extension |
| 3000-39 - Guard Rail Pockets - Note Guard Rails shipped separately |
Installation Prep / Enclosure / Chute Options |
| 3000-40 - Guide Angles |
| 3000-41 - Center Feet & Legs |
| 3000-42 - Weather Cover for Power Unit |
Deck Options |
| 3000-50 - 24" Walk On Ramp Extension |
| 3000-51 - 24" Walk On Ramp Extension for 10,000# Drive-On Decks |
| 3000-52 - 24" Walk On Ramp Extension for 20,000# Drive-On Decks |
| 3000-53 - 48" High 10,000# Drive-On Deck to be used with or without Hopper |
| 3000-54 - 48" High 20,000# Drive-On Deck to be used with or without Hopper |
| 3000-55 - 54" High 10,000# Drive-On Deck to be used with Hopper |
| 3000-56 - 54" High 10,000# Drive-On Deck to be used without Hopper |
| 3000-57 - 54" High 20,000# Drive-On Deck to be used with Hopper |
| 3000-58 - 54" High 20,000# Drive-On Deck to be used without Hopper |
3 YARD PRE-CRUSHER COMPACTOR DIAGRAM
A = 60" B = 188" C = 113" D = 70" E = 73"
Note: Dimensions may be rounded (and unless indicated) do not include any recommended 'perimeter buffer'.
If exactness is required, confirm in writing prior to ordering.
Note: Specifications, Dimensions & other product details may vary slightly upon delivery due to continuous product progressions and improvement. If exactness is required on any item(s), confirm in writing before ordering. In our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications, dimensions and other product details without notice.
Performance may vary depending upon application.
Products must be installed and operated according to required standards, codes, regulations and safety procedures.
