12 Yard STATIONARY COMPACTORS

(12 Cubic Yard Charge Box)

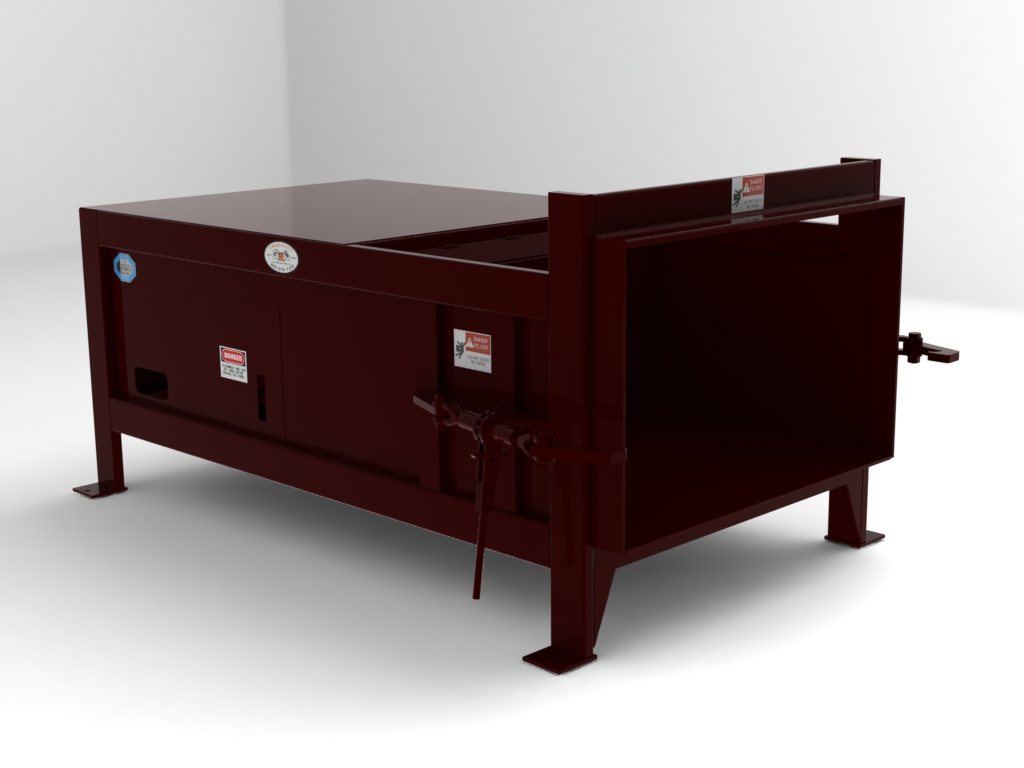

12 Yard Extra Heavy Duty Stationary Compactors



Note: Our two most standard Colors are Green and Blue and we will ship our choice of the two unless otherwise directed by Customer. Other colors available are Brown, Red, Gray and Black.





Helpful Articles for Deciding on 12 Yard Stationary Compactors:

About Compactors
Industrial Trash Compactors
Waste Compactors- Reduce the Trash Burden
Trash Compactors - Not Glamorous But Very Useful
Trash Compactors - Purchase Considerations and Tips
Trash Compactors - Preliminary Considerations Checklist
Waste Generated by Industry & Building Type (in lbs)
Waste Generated by Industry & Building Type (in CY)




ST-12X - 12 CU YD STATIONARY COMPACTOR

Request Automated Response with general pricing - (Secure)

Request Info on Multiple Products - (Secure Area)

12 YARD STATIONARY COMPACTORS


BASIC STANDARD FEATURES:

  • UL / UL Canada Listed Control Panel
  • Meets or exceeds ANSI Z245.5 safety standards.
  • 120 VAC Control Voltage
  • Equipped with heavy duty controls; Start - Stop - Reverse
  • NEMA 4 rated push button controls with key lockable start switch.
  • Weather-tight outside enclosure
  • Integrated Power Units (to compactor chassis) but accessible for maintenance or repairs
  • UHMW Presshead Guide System on sides and rear of presshead.
  • Oil Sight Gauge makes it easy to check the oil level at a quick glance
  • Replaceable Spin-On Oil Filter cartridge
  • Much more


MOST POPULAR OPTIONS:

  • Remote Controls - Increased productivity and user friendliness
  • Programmable Controlled Systems
  • Full Container Light and Advance Warning Light.
  • Ozone Odor Neutralizer - Ozone system destroys odor-causing bacteria
  • Oil Heater - Allows oil heater to be maintained at 70 degrees.
  • Multi-Cycle Controls
  • Fluid Filled Pressure Gauge
  • Hydraulic Cart Dumper Systems
  • Dock Mounts - Walk-On or Drive-On.
  • Safety Interlocks for door or gates

Note: Our Compactors Preliminary Considerations Checklist may be helpful

Jump to Stationary Compactors Overview Page showing all Models



Helpful Articles for Deciding on 12 Yard Stationary Compactors:

About Compactors
Industrial Trash Compactors
Waste Compactors- Reduce the Trash Burden
Trash Compactors - Not Glamorous But Very Useful
Trash Compactors - Purchase Considerations and Tips
Trash Compactors - Preliminary Considerations Checklist
Waste Generated by Industry and Building Type   (in pounds)
Waste Generated by Industry and Building Type (in Cubic Yards)


SPECIFICATIONS

12 YARD STATIONARY COMPACTOR - SIZE INFORMATION

Description Item Code ST-125
 Charge Box Capacity - MFG Rating CU/YD ST-12X-BOX 12
 Wastec Rating CU/YD ST-12X-WRT 10.25
 Container Capacity ST-12X-CCP Optional
 Clear Top Opening (L" x W") ST-12X-CTO 113" x 78"
 Ram Face Dimensions (W" x H") ST-12X-RFD 79.75" x 50"
 Overall Dimensions  (L x W x H - Rounded) ST-12X-DMN 26' x 9.3' x 8.2'
 Approximate Weight (lbs) ST-12X-WTG 35,000



12 YARD STATIONARY COMPACTOR - FORCE AND PRESSURE INFORMATION

Description Item Code ST-124
Total Force  in lbs (Normal) ST-12X-TFN 138,500
Total Force  in lbs (Maximum)  ST-12X-TFM 169,300
Ram Face Pressure in psi (Normal) ST-12X-RFN 33.4
Ram Face Pressure in psi (Maximum) ST-12X-RFM 42.5
Operating Pressure  in psi (Normal) ST-12X-OPN 1800
Operating Pressure  in psi (Maximum) ST-12X-OPM 2200



12 YARD STATIONARY COMPACTOR - HYDRAULIC / ELECTRICAL INFORMATOIN

Description Item Code ST-124
Motor HP  - 3 Phase - 208 / 230 / 460 vac ST-12X-MTR 50
Cycle Time  (in seconds - theoretical) ST-12X-CTI 35
Pump Capacity GPM ST-12X-PGP 125
Ram Penetration (in inches) ST-12X-RPN 32
Cylinder Bore / Rod Diameter  (in inches) ST-12X-CBR Twin 7 / 5
Stroke  (in inches) ST-12X-STK 147
Hydraulic Tank-Capacity Gallons ST-12X-HTC 250



12 YARD STATIONARY COMPACTOR - CONSTRUCTION INFORMATION

Description Item Code ST-124
Floor (in inches) ST-12X-FLC 1
Sides (in inches) ST-12X-SDC 1 / 2
Breaker Bar (in inches) ST-12X-BBC 2 x 16 H x 12 W
Ram Face (in inches) ST-12X-RFC 1
Ram Top (in inches) ST-12X-RTC 1 / 2
Ram Sides (in inches) ST-12X-RSC 1 / 2
Ram Bottom (in inches) ST-12X-RBC 1 / 2 AR Plate



12 Yard Stationary Compactors - Configuration Related Options

'No Dock' Configuration Related Options

 ST-12X-1A - Enclosed Hopper with Door on Left plus Magnetic Safety Interlock

 ST-12X-1B - Enclosed Hopper with Door on Right plus Magnetic Safety Interlock

 ST-12X-1C - Left Side Top Open Hopper (Includes Dead Man Control)

 ST-12X-1D - Right Side Top Open Hopper (Includes Dead Man Control)

 ST-12X-1E - Four Side Open Top Hopper

 ST-12X-1F - Left Side & Top Open ANSI Compliant

 ST-12X-1G - Right Side & Top Open ANSI Compliant

 ST-12X-1H - 40" Thru The Wall Door & Sleeve Assembly

 ST-12X-1I -  48" Thru The Wall Door & Sleeve Assembly

 ST-12X-1J - 40" Thru The Wall Receiving Hopper

 ST-12X-1K - 48" Thru The Wall Receiving Hopper

 ST-12X-1L - 40" Thru The Wall Chute 7' Long

 ST-12X-1M - 48" Thru The Wall Chute 7' Long

 ST-12X-1N - 40" Fire Door Class B, 1 1/2 Hour Rating

 ST-12X-1O - Magnetic Interlock for Existing Remote


'Dock' Configuration Related Options


 ST-12X-2A - Dock Mount Walk-On w/ 42" Hopper & Hand Rail

 ST-12X-2B - Dock Mount Walk-On w/ Safety Gate, Hopper, Hand Rail & Magnetic Safety Interlock

 ST-12X-2C - Dock Mount Walk-On w/ 42" Hopper & Hand Rail  - 8 Feet Wide

 ST-12X-2D - Dock Mount 8,000 lb Drive-On Walk-On w/ 42" Hopper & Hand Rail

 ST-12X-2E - Dock Mount 8,000 lb Drive-On w/ Safety Gate, Hopper, Hand Rail & Magnetic Safety Interlock

 ST-12X-2F - Dock Mount 8,000 lb Drive-On w/ 42" Hopper & Hand Rail  - 8 Feet Wide

 ST-12X-2G - Dock Mount 12,000 lb Drive-On Walk-On w/ 42" Hopper & Hand Rail

 ST-12X-2H - Dock Mount 12,000 lb Drive-On w/ Safety Gate, Hopper, Hand Rail & Magnetic Safety Interlock

 ST-12X-2I -  Dock Mount 12,000 lb Drive-On w/ 42" Hopper & Hand Rail  - 8 Feet Wide

 ST-12X-2J - Full Enclosure Walk-On  - 5 Feet Wide

 ST-12X-2K - Full Enclosure Walk-On  - 8 Feet Wide

 ST-12X-2L - Full Enclosure 8,000 lb  - 5 Feet Wide

 ST-12X-2M -Full Enclosure 8,000 lb  - 8 Feet Wide

 ST-12X-2N - Safety Gate with Interlock Hopper Mounted & Magnetic Interlock Switch

 ST-12X-2O - Magnetic Interlock Switch for Existing Remote



12 Yard Stationary Compactors - General Options

 ST-12X-SU - Set-Up

 ST-12X-01 - Guide Islands @ 5 Feet

 ST-12X-02 - Guide Islands @ 10 Feet

 ST-12X-03 - 75% Full Light

 ST-12X-04 - 100% Full Light

 ST-12X-05 - 75% & 100% Full Lights Combined

 ST-12X-06 - Auto Cycle Operation via Photo Cell

 ST-12X-11 - Full Remote Controls 15 Feet (Power Unit Controls Deleted)

 ST-12X-12 - Full Remote Controls 15 Feet (Four Operators - Power Unit Controls Deleted)

 ST-12X-13 - Second Remote Controls

 ST-12X-14 - Remote Control - Additional Length (cost per foot)

 ST-12X-15 - Remote Power Unit with 10 foot hoses & weather cover - (Series ST-2X, 3X & 4X only)

 ST-12X-16 - Additional Hydraulic Hose for Remote Power Unit

 ST-12X-17 - Controls in Panel with Remote Controls

 ST-12X-18 - Magnetic Interlock Switch with Existing Remote

 ST-12X-21 - Deadman Operation

 ST-12X-22 - Multi-Cycle Operation - no selector switch

 ST-12X-23 - Multi-Cycle Operation - with selector switch

 ST-12X-24 - Conveyor Auto shutdown

 ST-12X-31 - Pressure Gauge (Factory Mounted)

 ST-12X-32 - Pressure Gauge (Field Mount - 15 Feet)

 ST-12X-33 - Additional Pressure Gauge hose (cost per foot)

 ST-12X-35 - Control Panel - Right Hand Mount

 ST-12X-36 - Oil Heater

 ST-12X-37 - Oil Cooler (80 Gallon and up)

 ST-12X-38 - Oil Level Shutdown

 ST-12X-39 - Oil Temperature Shutdown

 ST-12X-41 - Odor Control (Sonozaire - 630a)

 ST-12X-51 - Breaker Bar Teeth - Hinged

 ST-12X-52 - Breaker Bar Teeth - Fixed

 ST-12X-53 - Pin Off System and Jog Control

 ST-12X-54 - Jog Control

 ST-12X-55 - Lockable Relief Valve

 ST-12X-56 - Biodegradable Oil (Per Gallon)

 ST-12X-61 - Voltage Upgrade

 ST-12X-62 - Tri-Voltage Wiring

 ST-12X-63 - 5 HP Efficiency Upgrade

 ST-12X-71 - Non-Standard Color - Industrial Enamel Paint (All others POR)



12 Yard Stationary Compactors  - Diagram Dimensions (Rounded - in inches)

A B C D E F G H
307 120 112 77 100 76 16 68



Main Dimensions (In Inches)

Length 307
Width 112
Height 100
Charge Opening 120 x 76 x 68
From Bottom of Machine to Pavement 16



12 Yard Stationary Compactor Diagram

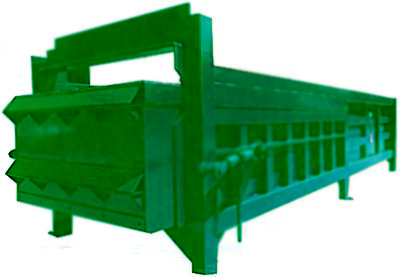

 Large 12 Yard Stationary Compactor Diagram
