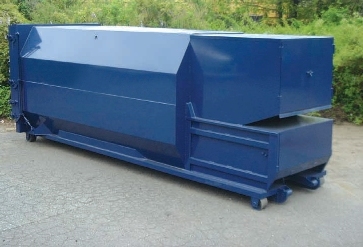

39 Yard Self Contained Compactor

                          SC2-3900 - 39 Yd SELF CONTAINED COMPACTOR


Helpful Articles for Deciding on 39 Yard Self Contained Compactors:
About Compactors
Industrial Trash Compactors
Waste Compactors- Reduce the Trash Burden
Trash Compactors - Not Glamorous But Very Useful
Trash Compactors - Purchase Considerations and Tips
Trash Compactors - Preliminary Considerations Checklist
Waste Generated by Industry and Building Type   (in pounds)
Waste Generated by Industry and Building Type (in Cubic Yards)





SC-3900 Self Contained Compactor - Specifications Information

Charge Box Capactity - MFG Rating CU/YD SC-3900-BOX
 Wastec Rating CU/YD SC-3900-WRT
 Container Capacity SC-3900-CCP
 Clear Top Opening (L" x W") SC-3900-CTO
42.5" x 57.5"
 Ram Face Dimensions (W" x H") SC-3900-RFD
30" x 60"
 Capacity Per Hour SC-3900-CPH
Dimensions SC-3900-DMN
299" L x 96" W X 105" H
Weight SC-3900-WGT 11,000 lbs


SC-3900 Self Contained Compactors - Performance Information

Cycle Time (Seconds) SC-3900-CTI 33
Normal Force lbs SC-3900-NFP 40,824
Normal Ram Face Pressure PSI SC-3900-RFP 22.7
Ram Penetration SC-3900-RPN 6.5"


SC-3900 Self Contained Compactor
Hydraulic / Electrical Information

Motor HP  (3 Phase - 208 / 230 / 460) SC-3900-MTR 10
Control Voltage SC-3900-CVL 120 VAC
Pump GPM SC-3900-PGP 11.5
Normal System Pressure PSI SC-3900-NSP 1,800
Maximum System Pressure PSI SC-3900-MSP 2,100
Cylinder Bore/Rod Diameter (Twin Cylinder) SC-3900-CBR 4"/2" x 2
Stroke SC-3900-STK 32"
Hydraulic Tank-Capacity Gallons SC-3900-HTC 25


 SC-3900 Self Contained Compactor - Construction Information

Charge Box Sides SC-3900-CBS 1/4"
Exterior Vertical / Horizontal Formed V SC-3900-VHF 7 Ga
Charge Box Floor SC-3900-CBF 1/2"
Ram Face SC-3990-RFC 1/2"
Ram Bottom SC-3900-RBT 3/8"
Ram Top SC-3900-RTP 1/4"
Breaker Bar Structural Angle SC-3900-BBS 6" x 8" x 3/4"
Longsills SC-3900-LGS 6" x 2" x 1/4"
Understructure Floor SC-3900-UFL 7 Ga
Container Sides SC-3900-CSD 7 Ga
Top SC-3900-TOP 10 Ga
Door SC-3900-DOR 10 Ga


SC-3900 Self Contained Compactor - Options

 SC-3900-01 - Rear Feed Hopper, Walk on Deck w/Hand & Toe Rails, Access Gate & Interlock Safety Switch
 SC-3900-02 - Rear Feed Hopper, Drive on Deck w/Hand & Toe Rails & Interlock Safety Switch
 SC-3900-03 - Rear Load Hopper (3-Sided) & Gate
 SC-3900-04 - Rear Load Hopper (4-Sided)
 SC-3900-05 - Side Load Hopper (3-Sided)
 SC-3900-06 - Doghouse with 1 Door
 SC-3900-07 - Additional Door
 SC-3900-08 - Enclosed Hopper w/Cellar Style Rear Doors
 SC-3900-09 - Dock Level Hopper Side Load
 SC-3900-10 - Dock Level Hopper Rear Load
 SC-3900-11 - Security Door and Frame 40” x 40”
 SC-3900-12 - Doghouse Enclosed for Chute
 SC-3900-13 - Hinged Breaker Bar Teeth
 SC-3900-14 - Container Guides 5’
 SC-3900-15 - Remote Controls on 15’
 SC-3900-16 - Advance Warning Light
 SC-3900-17 - Container Full Light
 SC-3900-18 - Hold to Run "Deadman"
 SC-3900-19 - Auto Timer Start with Shutdown
 SC-3900-20 - Multi Cycle Timer
 SC-3900-21 - Additional Controls Station
 SC-3900-22 - Photo Eye Start
 SC-3900-23 - Oil Heater 208/230
 SC-3900-24 - Low Oil / Hi Temp Shutdown
 SC-3900-25 - Ozone Odor Control
 SC-3900-26 - Hydraulic Oil Cooler (10 HP – 15 HP Units)
 SC-3900-27 - Jog Control


SC-3900 Self Contained Compactors Dimension Diagram

Self Contained Compactor Diagram

Note: Specifications, Dimensions & other product details may vary slightly upon delivery due to continuous product progressions and improvement. If exactness is required on any item(s), confirm in writing before ordering. In our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications, dimensions and other product details without notice.

Performance may vary depending upon application.

Products must be installed and operated according to required standards, codes, regulations and safety procedures.
