'CONTAINER FRIENDLY' THRU-the-WALL COMPACTORS
Interchangeable 4,6, & 8 Yd Front
or Rear Load Containers
and 17 Yd Roll-Offs

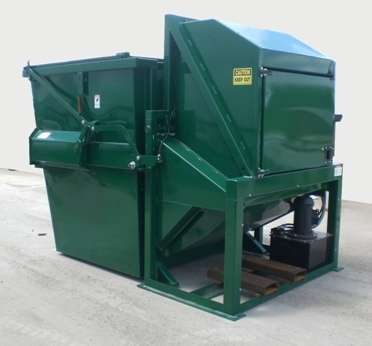

TWC-1000 Series FLEXIBLE Thru-the-Wall COMPACTOR
Request Automated Response with general pricing - (Secure)
Request Info on Multiple Products - (Secure Area)
The Container Friendly or Container Flexible 1000 Series Thru-the-Wall Compactors are outdoor compactors that can be fed from inside using a chute that is connected to the compactor sitting on the outside. A trash deposit door is opened on the inside of the building and the waste is channeled (via the chute) to the compactor which is located next to the outside wall. With thIs style of Thru-the-Wall Compactor, the containers are easily interchangeable (without changing the compactor)in the event the trash volume changes. These Compactors are also easily adaptable to be fed from the ground, a dock, or combined with an open chute.
The Container Flexible Series Thru-the-Wall Compactor works in conjunction with Front Load or Rear Load Containers that are tipped onsite by Haulers and can also be adapted for a 17 yard Roll-Off Container. These Thru-the-Wall Compactors are great for many applications including Hospitals, Colleges and Universities, Office Buildings, Hospitals, Medical Centers, and more.
With the Drivers Light Feature and Automatic Latch System it means that Front Load Drivers never have to leave the drivers seat .
CONTAINER FLEXIBLE THRU-the-WALL COMPACTOR STANDARD FEATURES
- UL Listed Control Panel
- Meets ANSI standards
- Change Container System (Front Load, Rear Load or Roll-Off) without changing compactor
- Key Start, Stop and Full Light
- Safety Interlocks allow operation only when Container is attached and Feed Doors are closed
- Chute Kit with Door Sleeve & Remote Control Panel (for Thru-the-Wall Configuration)
- Drivers Connection Light for Front Load Haulers
- Latch Controls - Automatic Latch for disconnecting Front Load Containers
- Leak Proof Containers / Self Contained Style
- Retainer Teeth prevents spillage of container during the separation from compactor for emptying.
- Hydraulic Unlatch and Lift System opens rear door so roll-off drivers can dump a load without getting out of their truck
- Quick Adjust Door Seals make it simple to keep the Roll-Off Container liquid tight
- Quick Latch System - All 3 types of containers can be locked in place firmly and securely under the compactor to prevent 'Walk-Outs'
- Front Load, Rear Load or 17 Yard Roll-Off Containers
STANDARD THRU-the-WALL COMPACTOR OPTIONS
(Other options may be available upon request)
Single Phase 110v / 220v - 1 HP)
Oil Heater
80% Full Light and 100% Full Light
Alarm for indicating when the container is full
Front Load
Guide Rails
Odor Control System (If added, Driver must exit truck
when tipping)
CONTAINER FLEXIBLE SERIES 1000 THRU-the-WALL COMPACTOR SPECIFICATIONS
Thru-the-Wall Compactor Specifications -
TWC-1000
Series |
|
| Charge Size | 1 Cubic Yard |
| Motor | 3 HP |
| Electric Power | 3 PH - 208v / 230v / 460v (Optional Single Phase 110v / 220v) |
| Pump | High / Low Gear |
| Pump Capacity | 5 gpm |
| Reservoir | 13 Gallons |
| Cylinder Size | Two 3" Bore - Stroke: 16" - 1.5" Rod |
| Packing Force | 25,800 lbs Max - 22,400 lbs Normal |
| Ram Face Pressure | 16.5 PSI Max - 14.5 PSI Normal |
| Operating Pressure | 2300 PSI Max - 2300 PSI Normal |
| Ram Penetration | 21 1/2" Breaker Bar to Maximum - 11" Past Retaining Teeth |
| Cycle Time | 26 Seconds (Songle Phase - 34 Seconds) |
| Loading Height | 42" from ground |
| Chamber Opening | 46" x 33" |
| Ram Face | 46" x 33 1/2" |
| Compactor / Container Dimensions (inches) | See Chart Below |
| Actual Weight (Compactor + Container) | 2,700 - 3,100 Lbs. (depending on Container) |
| *Does not include the recommended buffer for normal operation and service. | |
Compactor and Container Dimensions Chart |
||||||
Description |
Compactor
Charge Size |
Feed Height |
Overall Height |
Container Size |
Compactor &
Container Length |
Item |
4 Yd Front Load |
1 Yard |
42" |
95" |
4 Yard |
109" |
TWC-14-F |
6 Yd Front Load |
1 Yard |
42" |
95" |
6 Yard |
109" |
TWC-16-F |
6 Yd Rear Load |
1 Yard |
42" |
95" |
6 Yard |
148"" |
TWC-16-R |
8 Yd Front Load |
1 Yard |
42" |
95" |
8 Yard |
114" |
TWC-18-F |

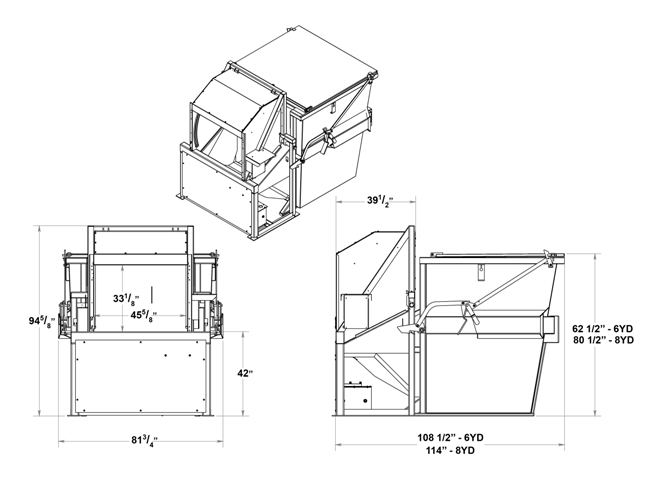

CONTAINER FRIENDLY THRU-the-WALL COMPACTOR - DIAGRAM
Dimensions may be rounded (and unless indicated) do not include any recommended 'perimeter buffer
Note: Specifications, Dimensions & other product details may vary slightly upon delivery due to continuous product progressions and improvement. If exactness is required on any item(s), confirm in writing before ordering. In our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications, dimensions and other product details without notice.
Performance may vary depending upon application.
Products must be installed and operated according to required standards, codes, regulations and safety procedures.
