PeeWee Textile / Clothes Baler
For Very Small, Easy to Handle Compact Bales of Textiles and Clothes
TC-2820 - PEEWEE TEXTILE CLOTHING BALER
Request Automated Response with general pricing - (Secure)
Request Info on Multiple Products - (Secure Area)
If you are looking to make small. easy to handle bales of textiles, clothing, cardboard or shrink wrap this PeeWee Baler is a great choice. The light weight of the machine makes it easy to move around to different locations. Operation is very simple and the baler takes up very little space.
Produces compact Textile / Clothing Bale Weights of
90 -
230 lbs
Also handles Cardboard and Plastic Wrap
Ideal for baling clothes that are intended for second hand use. Since the footprint is so small it can be used just about anywhere.
See Textile Bale Weights
Read About Textile and Clothes Recycling
PEEWEE TEXTILE CLOTHING BALER FEATURES
Baler can be placed flush against the wall since bale removal and bale strapping can be performed from the front.
ULŪ & CULŪ Approved Control Panel. Meets and exceeds
ANSI
Standards Z245.5 and OSHA Safety Standards
|
Footprint of only 20 Square Feet (with the door open
and 12 sq ft when closed)
Low Noise Level - Only 65 - 68 db Straight-Forward, Simple design Very Easy to Operate Very small space requirements Very low ceiling height requirements Easy to replace Strap rolls Up to 5 to 1 Reduction ratio |
PEEWEE MINI BALER SPECIFICATIONS
PeeWee Mini-Baler General Information |
|
| Bale Size | 28" W x 20" D x 14" - 26" H |
| Bale Weights: Clothing / Textiles | Up to 90 - 230 lbs |
| Bale Weights: Cardboard | Up to 65 to 110 lbs |
| Bale Weights: Plastic Wrap | Up to 85 to 130 lbs |
| Pressing Force | Up to 6,600 Pounds |
| Cycle Time | 49 / 35 Seconds |
| Stroke | 22" |
| Motor | 1.8 HP - Single Phase (20 amp) |
| Electrical Power | 110 v |

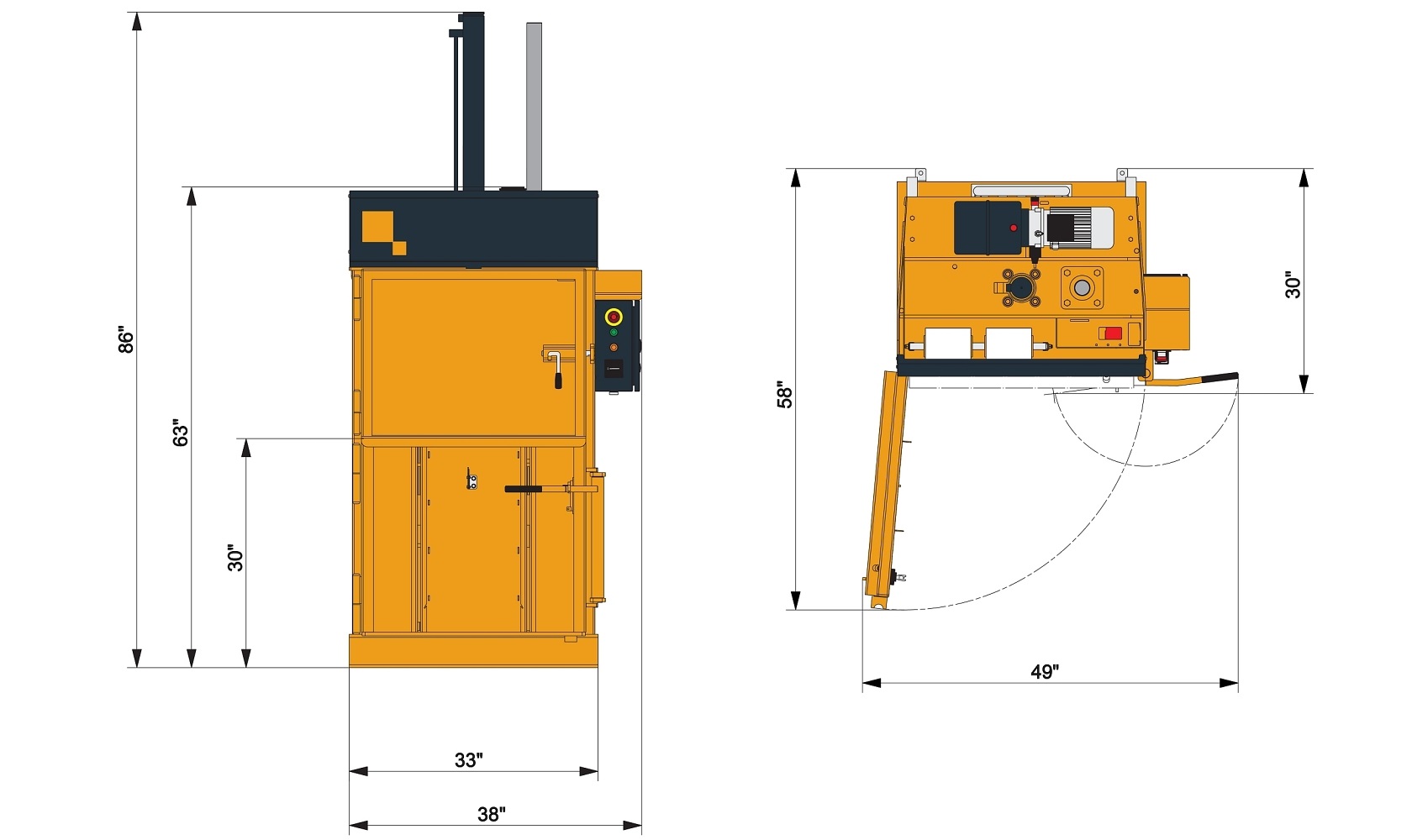

PeeWee Mini-Baler Dimensions & Weight |
|
| Loading / Feed Door | 28" W X 18" H |
| Feed Height | 30" |
| Overall Operating Height | 86" |
| Depth | 30" |
| Depth with door open | 58" |
| Width | 38" |
| Footprint (Depth with Door Open) | 20 Square Ft (Does not include any buffer) |
| Actual Weight (Approx) | 685 Pounds |
| Options | Special Electrical |
Note: Specifications, Dimensions & other product details may vary slightly upon delivery due to continuous product progressions and improvement. If exactness is required on any item(s), confirm in writing before ordering. In our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications, dimensions and other product details without notice.
Performance may vary depending upon application.
Products must be installed and operated according to required standards, codes, regulations and safety procedures.
