MINI BALER COMPACTOR FOR PLASTIC WRAP, CANS, CARDBOARD & MORE



Mini Baler Compactor



                        PWM-2825 - MINI BALER COMPACTOR



Request Automated Response with general pricing - (Secure)

Request Info on Multiple Products - (Secure Area)

The Mini-Baler Compactor is great for Plastic Wrap, Shrink Wrap, Cans, Cardboard and more and was designed to fit the needs of those who want a simpler baler that produces smaller, more manageable bales and easier equipment operation. It is basically a refrigerator size baler that operates nearly as simple as a utility room trash compactor (or commercial kitchen compactor).

This Baler is especially useful for generating small, easy to handle bales of Plastic Wrap, Shrink Wrap, Cardboard, Cans and similar types of recyclable materials that are easier to compress.

Read more about Balers used for Plastics

MINI BALER COMPACTOR FEATURES

  • Easier to make a bale than traditional balers
  • Easy to Operate
  • No preliminary steps or preconditioning of the material
  • Ability to leave the platen down to increase compaction / density if heavier bales are desired
  • Smaller bale size produces tighter bales that are easier to handle
  • Hand Cart included for Bale removal
  • Able to tie the bales with plastic straps, twine or wire
  • Safety Standards - ETL or EC Listed

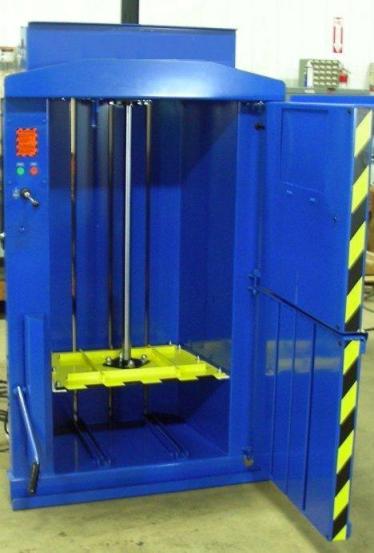

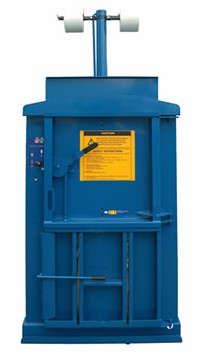

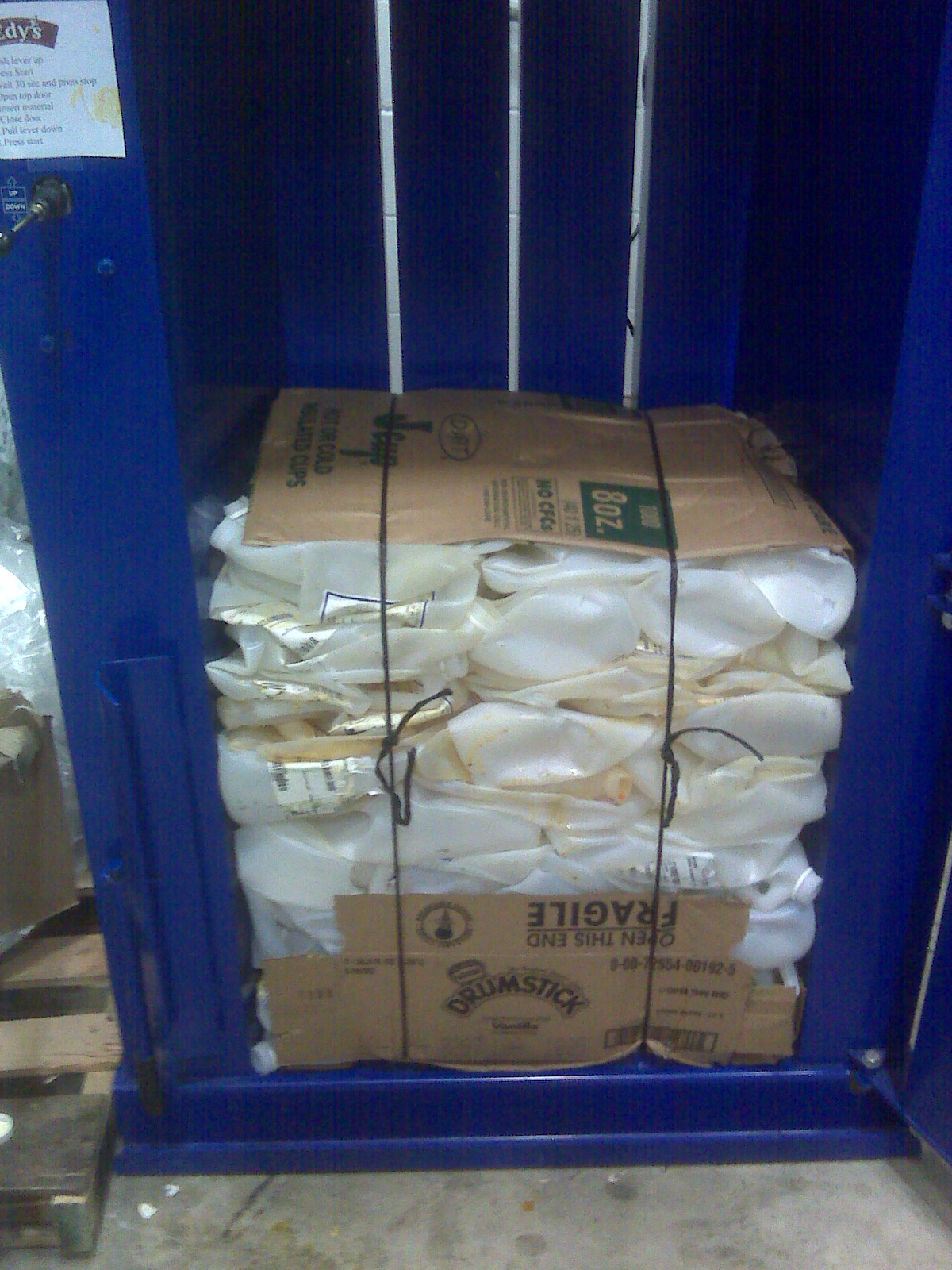

Mini-Baler Compactor - Main Bale of Plastic   Mini-Baler Compactor - Open





Bale weights for Shrink Wrap can be up to 80 - 90 lbs with a bale size that is (up to) 39" H x 27.5” W x 19.5” D

MINI BALER COMPACTOR SPECIFICATIONS

Mini-Baler Compactor General Information

  Bale Size   Up to 39" H x 27.5" W x 20" D
  Bale Weights:  Plastic Wrap   Up to 80 - 90 lbs
  Bale Weights:  Cardboard   Up to 165 lbs
  Bale Weights:  Paper   Up to 175 lbs
  Bale Weights:  Cans   Up to 60 lbs
  Compaction Force   7,000 Pounds
  Cycle Time   24 Seconds
  Noise Level   72 Decibels
  Cylinder   2.5"  Bore - Stroke 27"
  Motor   2 HP
  Electrical Power   Single Phase 110v or Optional 220 v  15 amp



Mini-Baler Compactor Dimensions & Weight
  Loading / Feed Door   27.5 W X 27.5" H
  Overall Operating Height   91"
  Depth   29"
  Depth with doors open   67"
  Width   41"
  Width with doors open   67"
  Footprint (Depth with Door Open)   20 Square Ft (Does not include buffer)
  Actual Weight (Approx)   600 Pounds





Note: Specifications, Dimensions & other product details may vary slightly upon delivery due to continuous product progressions and improvement. If exactness is required on any item(s), confirm in writing before ordering. In our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications, dimensions and other product details without notice.

Performance may vary depending upon application.

Products must be installed and operated according to required standards, codes, regulations and safety procedures.
