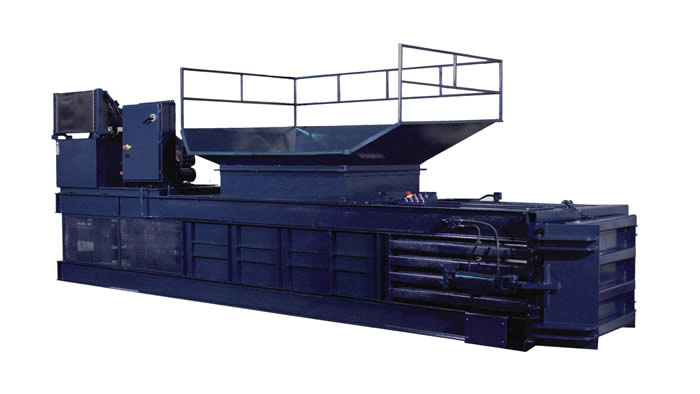

HC38-2716 HORIZONTAL CLOSED END BALER



HC38-2716 HORIZONTAL CLOSED END BALER

This Horizontal Baler is ideal for:

Bales a variety of materials including:



            HC38-2716


To jump to the Comparison Chart on all Closed End Horizontal Balers Click Here

Request Detailed Quote or other information - (Secure Area)

Request Automated Response with general price information

The Closed End Horizontal Balers are typically used in applications involving a continuous feed either by hand, loader, conveyor belt or air system. Generally, in terms of volume, the Closed End Horizontal Balers are best suited for applications of up to 20 tons (OCC)  per typical work shift. In addition to many other options that are listed with the Closed End Horizontal Balers, customers can request an optional slotted discharge door (which is slotted horizontally). This means that the bales are able to retain their highest density while being tied off via the slotted door.

In addition to maximizing bale weight, size & speed, this baler is designed and produced with many other customer satisfaction factors in mind such as:

  • Reducing waste disposal costs while minimizing acquisition and start-up costs of waste handling equipment
  • Reducing labor costs
  • Streamlining overall waste processing operations for better productivity
  • Durability and reliability
  • Improving cleanliness and business image
  • Improving workplace safety
  • Achieving quick paybacks

Whether it is baling cardboard, plastics, metals, foam, film, fiber, magazines, paper or other materials, the design, components and construction is meant to produce many years of trouble-free economical service for our customers.



Baler Performance

Bale Size

30” x  36” x  60”

Bale Volume

37.5 Cubic Feet

Cycle Time

15.66 Seconds (No Load)

Estimated Bale Weights

Material

Bale Weight

Density Lbs/Cu Ft – Loose/Baled

30 HP  Bales / Hr

Cloth

Up to 1,000 Lbs

4 / 26

Up to 2

Shredded OCC

Up to 1,000 Lbs

3 / 26

Up to 2

Shredded Newspaper

Up to 1,100 Lbs

3 / 28

Up to 2

Note: Performance Rates, Bale Weights, and Bale Densities are subject to many factors such as Material Pre-Bale Densities, Feed rates, Moisture Content and other variables.



Hydraulics

Main Pumps

43.5 GPM - Double Vane - 1 @ 31.5 GPM (800PSI) & 1 @ 12 GPM (2600 PSI)

System Pressure

2600 PSI Maximum

Main Cylinder

7” Bore, 5” Rod,  46” Stroke  16" Penetration

Ram Face Pressure

98.58 PSI

Overall Platen Force

100,060 Lbs

Oil Reservoir

100 Gallon Capacity

Hydraulic Manifold

Cartridge Relief Valve Subplate Circuit

Filtration 6 Micron
Air to Oil Cooler Optional

Electrical

Main Motor

20 HP  -  230/460v – 3 Phase (Standard)

Enclosure

NEMA 12 - Rated

Controls

UL Approved  -  CUL & UL Listed

Motor Type

TEFC, Heavy Duty  - Greased fittings & bearings & totally enclosed fan coolers

PLC Allen Bradley SLC500
Photocell Infrared Type



Structural

Frame Design

Channel and Tube Steel Construction

Sub Floor

Tube Steel Lattice Network

Platen Guides

  Tongue & Groove Floor Guides & Adjustable Platen Hold Down
  Linen Phenolic Wear Side Guides
  T-1 Top Wear Guides
Gib Bars A-1018

Shear Blade

T-1 Alloy Steel
Shipping Weight 14,000 lbs (Approximately)



Baler Dimensions  - Note: Specifications are sometimes rounded within a few inches +/-

Overall Height

90

Overall Width

60

Length - Door Open

230

Feed Opening 28 W x 30 L

Note: Dimensions do not include options (such as Conveyors or Hopper extensions) or 'perimeter buffer'



Other Baler Features    (Note: Some items may be options if specified)

Product meets or exceeds all ANSI Z245.5 and OSHA standards.
Product has NEMA 12
All Cylinders are trunion mounted for a stronger mount and more protection for the cylinder
All machines are shipped with hydraulic fluid in them
Regen Hydraulic Circuit for adding more speed to the system by bringing more fluid to cylinder
Air/Oil Cooler helps prevent the hydraulic oil from overheating (on all models except the 20HP)
Tongue and Groove Flooring helps keep material from getting under the platen
Wide Mouth In-Feed Openings for variety of materials and sizes
Automatic cycling, activated by electric eye in hopper feed chute
Safety interlocks which means the baler automatically stops when door or panel is opened
Rugged, reinforced baling chamber and door
Oversized locks, hinges and hydraulic components helps keep maintenance costs low
Lock-out Tag-Out provisions are incorporated



Main Baler Options

Option

Description

01

Remote Power Unit

02

Hopper Extension

03

Foam Hopper

04

Ultra Sonic Actuator

05

High Intensity Actuator

06

High Temperature / Low Oil Level Alarm

07

Soft Start - Reduced Amperage Starting

08

Upper Photo Eyes

09
Finger Safe Fuse Guards
10
Weatherproof
11
Oil Heater
12
Special Paint
13
Special Voltage
14
Conveyors
15
Conveyor & Cart Dumper Controls (for existing Conveyor or Cart Dump)
16
Cart Dumper
17
Slotted Discharge Door
18
Bale Run Out Table

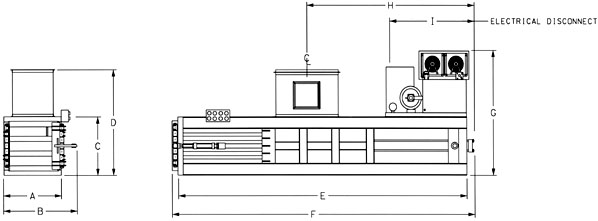

Horizontal Dimension Diagram:

A
B
C
D
E
F
Length
Door Open
G
H
I
HC38-2716
43.625
55
44.50
80.50
175.50
184.50
225.50
85.50
98
72
