STANDARD VERTICAL BALER - 72"



Standard 72 Inch Vertical Baler





                      72-SVB - 72" STANDARD VERTICAL BALER

Request Automated Response with general pricing - (Secure)

Request Info on Multiple Products - (Secure Area)

This 72" Standard Vertical Baler is ideal for:

  • Recycling Centers
  • Supermarkets
  • Department Stores
  • Retail Stores
  • College & Universities
  • Transfer Stations
  • Hotels / Resorts
  • Manufacturing Facilities
  • Military Bases
  • Shopping Centers
  • Other Industrial & Commercial Sites

Factory Installed Optional Equipment: Two-Piece Door

Comparison Chart on 72" Vertical Balers


Click here to check out the different balers and the bale weights they produce on various materials





Standard Vertical Baler Features:

  • UL Listed Control Panel
  • PLC controlled electrical system.
  • Specially Designed Hydraulic Circuit for High Speed Operation
  • Tamper Proof Magnetic Reed Safety Switches
  • Heavy Duty 7" Cylinder
  • Heavy Duty 4" Hydraulic Eject Cylinder
  • Reinforced Floor & Sidewalls
  • Heavy Duty I-Beam Upper Stringers
  • 4 Sided Nylatron Guided Platen for Smooth, Quiet Operation
  • 2 Handed Safety Controls for manual operation
  • Bale Full Indicator Light
  • 6 Slots for Tying Bale
  • Hydraulic Ejector Designed to eject full or partial bales
  • Retractable Bale Dogs for reducing spring-back
  • 2 piece split lower door to reduce operating space.
  • Built in Fork Slots and Skids for easy installation
  • Shipping Height of 88 inches allows upright Transport



Standard Vertical Baler Specifications

Bale Size                                                   72-SVB-BS 40" x 72" x up to 40" height
Ram Pressure                                         72-SVB-RP 92,360 lbs.
Twin Cylinders                                         72-SVB-TC 7 " Bore, 4.5" Rod; 48" Stroke
Motor / Electrical                                       72-SVB-ME 20 HP; 3 PH; 208 / 230 / 460
Bale Weights                                            72-SVB-BW Cardboard: Up to 1,300 lbs
Cycle Time                                                72-SVB-CT 28 Seconds
Pump                                                          72-SVB-MP 18 Gallon
Ejection                                                      72-SVB-EJ Hydraulic / Chain
Bale Tying                                                  72-SVB-BT Wire or twine
Overall Height                                            72-SVB-OH 137"
Width (with Door Open)                           72-SVB-OW 114"
Static Width                                                72-SVB-SW 97"
Depth (with Door Open)                          72-SVB-OW 98"
Static Depth                                               72-SVB-SW 55"
Loading Door Opening                            72-SVB-LD 28" x 72"
UnLoading Door Height                          72-SVB-DH 44"
Req. Installation & Operating Area        72-SVB-OA 77.5 s.f.
Shipping Height                                         72-SVB-SH 89"
Shipping Weight                                        72-SVB-WT Approximately 7,300 lbs.

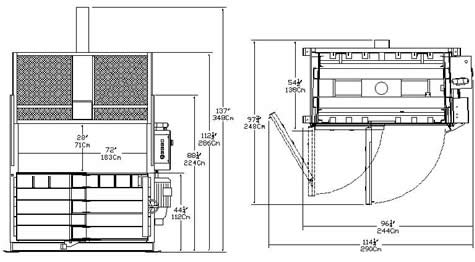

72" Standard Vertical Baler Diagram -  72-SVB

Standard 72 Inch Vertical Baler Diagram
