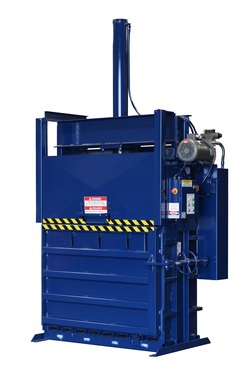

LARGE HIGH DENSITY BALER - 72" VERTICAL
One of the larger balers we offer, producing bales over 1000 pounds to maximize output and recycling efforts. Take your operation to the next level with this workhorse of a baler. Bales cardboard and other products extremely efficiently.
72-1530 - 72" HIGH DENSITY BALER
Request Automated Response with general pricing - (Secure)
Request Info on Multiple Products - (Secure Area)
This 72" High Density Baler is ideal for:
- Supermarkets
- Department Stores
- Manufacturing Facilities
- Warehouses
- Shopping Centers
- Colleges & Universities
- Hotels / Motels
- Military Bases
- Recycling Centers
- Transfer Stations
- Many other types of Industrial / Commercial Applications.
Comparison Chart on 72" Vertical Balers
Large 72" High Density Baler Performance Information |
|||
Bale Size |
30” x 48” x 72” |
||
Bale Volume |
60 Cubic Feet |
||
Cycle Time |
48 Seconds (No Load) |
||
Estimated Bale Weights |
|||
Material |
Bale Weight |
Density Lbs/Cu Ft – Loose/Baled |
Bales / Hr |
OCC – Cardboard |
Up to 1,100 Lbs |
2.5 / 22 |
Up to 2 |
Shredded ONP |
Up to 1,200 Lbs |
4 / 24 |
Up to 2 |
| Shrink Wrap / Plastic Wrap | Up to 900 Lbs | 1.5 / 16 | Up to 2 |
Note: Performance Rates, Bale Weights, and Bale Densities are subject to many factors such as Material Pre-Bale Densities, Feed rates, Moisture Content and other variables. |
|||
Large 72" High Density Baler Hydraulics |
|
Main Pumps |
9.8 GPM @ 1,800 RPM Fixed Volume Vane |
System Pressure |
2600 PSI Maximum |
Main Cylinder |
6” Bore, 3.5” Rod, 48” Stroke |
Ram Face Pressure |
37.50 PSI |
Overall Platen Force |
73,502 Lbs |
Oil Reservoir |
30 Gallon Capacity |
Hydraulic Manifold |
D05 Pattern, Internal Relief Valve Subplate Circuit |
Large 72" High Density Baler Electrical |
|
Main Motor |
15 HP - 208/230/460v – 3 Phase |
Enclosure |
NEMA 12 - Rated |
Controls |
UL / CUL Listed |
Motor Type |
TEFC High Efficiency |
Large 72" High Density Baler - Dimensions & Structural |
|
Overall Height |
143 |
Overall Width |
92 |
Overall Depth |
45 |
Depth with Door Open |
115 |
Frame Design |
10” Channel Side Rails - 12” Channel Headers |
3” x 3” Tube Steel Discharge Door Supports |
|
Solid Door Charge |
|
8 Pieces of 4” Channel in Sub Floor |
|
Feeding Opening |
27” x 72” Charge Dimensions 23” x 72” |
Weight |
5,500 lbs |
Other Features of the Large 72" High Density Baler |
UL Listed (see Electrical chart above) |
| Product meets or exceeds all ANSI Z245.5 and OSHA standards. |
| Product has NEMA 12 |
| Bale Height Adjustable |
| Safety Interlock Circuit on Bale Door & Safety Gate |
| Counterbalanced Feed Door for Easy Open |
| 3 – 6” Retainer Bale Dogs Front and Back |
Soft Shift, Low Shock Hydraulic Circuit |
| Dual Chain Semi-Automatic Bale Ejection System |
| Platen Roller Guides |
| Spring Doors |
| Factory Wired for Easy Installation |
| A-36 structural frames. A-514 reinforced in high stress areas. Strong rigid container walls provide performance & longer life span. A-1018 used for gib bar, guide and control surfaces. |
Other Options of the Large 72" High Density Baler |
|
Option Number |
Description |
72-1530-01 |
Slotted Discharge Door |
72-1530-02 |
Single Phase Motor (Only available on 10 HP Balers) |
72-1530-03 |
Front Load – Rear Eject |
72-1530-04 |
Oil Heater |
72-1530-05 |
Special Voltage – 575V |
72-1530-06 |
Sharks Teeth |
72-1530-07 |
Weatherproof |
72-1530-08 |
Drum Crusher |
72-1530-09 |
Heavy Duty Package (Beefed up Frame etc) |
72-1530-10 |
Special Paint Color |
| 72-1530-15 | Wire Turnaround |
| 72-1530-16 | Non-Flamable Oil |
72-1530-21 |
Automated Rear Chute without Conveyor |
72-1530-22 |
Automated Rear Chute with Conveyor |

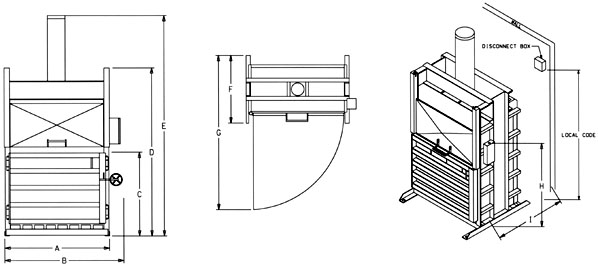

A = 80" B = 92" C = 54" D = 108" E = 143" F = 45" G = 115" H = 76" I = 54"
Note: Specifications, Dimensions & other product details may vary slightly upon delivery due to continuous product progressions and improvement. If exactness is required on any item(s), confirm in writing before ordering. In our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications, dimensions and other product details without notice.
Performance may vary depending upon application.
Products must be installed and operated according to required standards, codes, regulations and safety procedures.
