HIGH DENSITY BALER - 60" Vertical

The 60" High Density Baler produces cardboard bales that weigh approximately 1000 pounds.  An excellent baler to bale not only cardboard, but also PET, newspaper, shrink wrap, clothes and many other recyclable or waste items.  With the 7" cylinder upgrade package, cardboard bale weights can reach over 1,200 pounds, maximizing space and possibly even recycling profits.

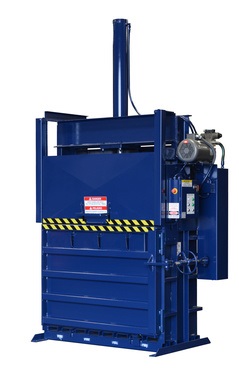

High Density Baler



Click here to check out the different balers and the bale weights they produce on various materials


Read about Balers

                         60-1548 - 60" HIGH DENSITY VERTICAL BALER

                          (60-1548XU - 7" Cylinder Upgrade Package)

Standard Baler Model 60-1048


Request Automated Response with general pricing - (Secure)

Request Info on Multiple Products - (Secure Area)

This High Density Baler is a great selection for a variety of recycling materials.

This 60" High Density Baler is ideal for:

  • Government
  • Grocery Stores
  • Department Stores
  • Factories / Manufacturing
  • Shopping Malls
  • Retail Centers
  • Universities, Colleges, Schools
  • Resorts / Motels / Hotels
  • Military Facilities
  • Recycling Facilities
  • Transfer Stations
  • Many other applications for Industrial / Commercial

Comparison Chart on 60" Vertical Balers

60" High Density Vertical Baler Performance Information

Bale Size

60-1548-BS

30” x  48” x  60”

Bale Volume

60-1548-BV

50 Cubic Feet

Cycle Time

60-1548-CT

48 Seconds (No Load)   With 7" Cylinder Upgrade - 62 Seconds

Estimated (Up to) Bale Weights

Material

Bale Weight

Density Lbs/Cu Ft – Loose/Baled

Bales / Hr

OCC - Cardboard

1,150 Lbs

2.5 / 23

Up to 2

Shredded ONP - Newspaper

1,300 Lbs

2.5 / 26

Up to 2

Plastic / Shrink Wrap
900 Lbs

1.5 / 18

Up to 2

Plastic / Shrink Wrap (W/ Sharks Teeth)
1,000 Lbs
2.5 / 24
Up to 2
PET (Requires 'Beef-Up' Add-On)

300 - 400 Lbs

1 /7
Up to .75
Clothes (Requires 'Beef-Up' Add-On)
1,100 Lbs
4 / 22
Up to 2
With 7" Cylinder Upgrade Package - Bale Weight Examples
OCC - Cardboard
1,265 Lbs
2.5 / 25
Up to 2
Shredded ONP - Newspaper
1,430 Lbs.
2.5 / 28
Up to 2
PET
500 Lbs
1 / 10
Up to .75

Note: Performance Rates, Bale Weights, and Bale Densities are subject to many factors such as Material Pre-Bale Densities, Feed rates, Moisture Content and other variables.

*For baling strictly plastic wrap it may be helpful to add the Shark's Teeth option.



60" High Density Vertical Baler - Hydraulics  & Mechanical

Main Pumps

60-1548-MP

Fixed Volume Vane 12.5 GPM @1,750 RPM

System Pressure

60-1548-SP

 2350 PSI Operating; 2600 PSI Maximum

Main Cylinder

60-1548-MC

6” Bore, 3.5” Rod,  48” Stroke

Cylinder / Bore with Upgrade

60-1548-UP

7" Bore, 4.5" Rod,  48" Stroke

Ram Face Pressure

60-1548-FP

40.91 PSI   * With Upgrade Pkg - 56 psi Max; 50 psi Operating

Overall Platen Force

60-1548-PF

66,445 Lbs   -  *90,438 lbs with 7" Cylinder Upgrade Package

Oil Reservoir

60-1548-OR

30 Gallon Capacity

Hydraulic Manifold

60-1548-HM

D05 Pattern, Internal Relief Valve Subplate Circuit

Filtration

 60-1548-FT

100 Mesh Suction Strainer
Platen Guide

60-1548-PG

Replaceable UHMW Guide System

60" High Density Vertical Baler - Electrical

Main Motor

60-1548-MM

15 HP  -  208/230/460v – 3 Phase - Field Changeable

Enclosure

60-1548-EN

NEMA 12 - Rated

Controls

60-1548-CL

UL / CUL Listed

Motor Type

60-1548-MT

TEFC Premium Efficiency



60" High Density Vertical Baler - Dimensions & Structural

Height

60-1548-H

143

Width

60-1548-W

80

Depth

  60-1548-D

45

Depth (Door Open)

  60-1548-DO

102

Frame Design

60-1548-FD

10” Channel Side Rails  - 12” Channel Headers

3” x 3” Tube Steel Discharge Door Supports

Solid Door Charge

8 Pieces of 4” Channel in Sub Floor

Feed Opening

  60-1548-FO

27” x 60”   Charge Dimensions 23” x 60”

Weight

60-1548-WT

5,000 lbs  - *Add approx 400 lbs with Upgrade Package



Other Features of the 60" High Density Baler

60-1548

UL Listed (see Electrical chart above)

60-1548 Product meets or exceeds all ANSI Z245.5 and OSHA standards.
60-1548 Product has NEMA 12
60-1548 Bale Height Adjustable
60-1548 Safety Interlock Circuit on Bale Door & Safety Gate
60-1548 Counterbalanced Feed Door for Easy Open
60-1548 3 – 6” Retainer Bale Dogs Front and Back
60-1548

Soft Shift, Low Shock Hydraulic Circuit

60-1548 Dual Chain Semi-Automatic Bale Ejection System
60-1548 Platen Roller Guides
60-1548 Spring Doors
60-1548 Factory Wired for Easy Installation
60-1548 Structural frames reinforced in high stress areas, plus other heavy duty 'extras'.



Other Options of the 60" High Density Vertical Baler

60-1548-SU Set-Up

60-1548-01

Slotted Discharge Door

60-1548-02

Single Phase Motor   (Only available on 10 HP Balers)

60-1548-03

Front Load – Rear Eject

60-1548-04

Oil Heater

60-1548-05

Special Voltage – 575V

60-1548-06

Sharks Teeth  (Note: If Sharks Teeth are added Baler will not work well with Cardboard Baling)

60-1548-07

Weatherproof

60-1548-08

Drum Crusher

60-1548-09

Extra Heavy Duty Package (Heavily beefed up Frame for tougher materials like PET & clothes)

60-1548-10
Special Paint Color
60-1548-15
Wire Turnaround
60-1548-16
Non-Flammable Oil
60-1548-20
 7" Cylinder Upgrade Package

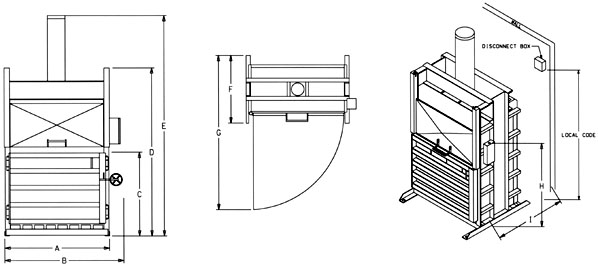

60" High Density Baler Diagram

A = 68"         B = 80"        C = 54"        D = 108"        E = 143"        F = 45"        G = 102"        H = 76"        I = 54"

High Density 60" Cardboard Baler Diagram
