SMALL SUPER HIGH DENSITY BALER - 30 Inch
This super high density baler offers a tight, dense bale while taking up little space in your facility. It is great for aluminum cans, plastic bottles, HDPE and more. By utilizing the optional draining package, you have the convenience of capturing and containing liquids which can be hooked up to your drainage system. Perfect for the small space or small facility.
Think about the benefits of being able to bale 4,000 aluminium beverage cans or 2,000 plastic beverage bottles into one small recyclable cube (30" x 16" x 24") ...
Each bale can be produced in about 15 minutes

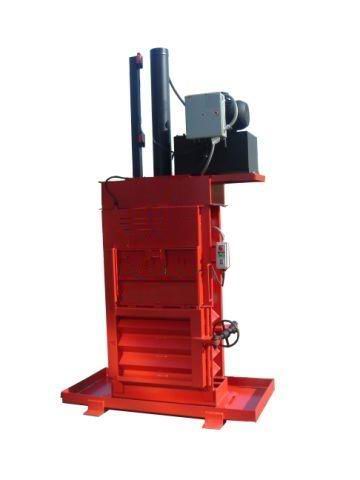

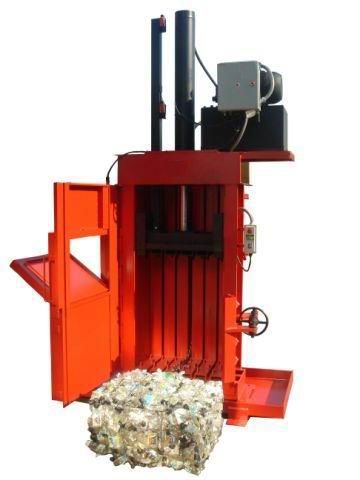

Note: The photo's show the Liquid Reservoir Drain Pan which is not included unless the Liquid Draining Package is purchased. (The liquids from the containers collect in the liquid reservoir pan which can then be diverted to a nearby drain by way of the coupler that is provided. As an an alternative for handling larger amounts of liquids a submersible sump pump can be placed in the drain pan area so that the liquids can be pumped out on a steady basis. Suppliers such as Grainger and many others carry these type of sump pumps so they are readily available worldwide for a just a few hundred dollars. .
30" Super High Density Baler Specifications
|Bale Size||30" x 16" x up to 24"|
|Cubic Feet (Bale Size)||6.7|
up to 180 pounds
|Average Cycle Time (With 4 second Dwell time)||50 Seconds|
|Compaction Force (lbs)||56,550 Pounds|
|Normal System Pressure PSI (4 sec dwell timer)||2000 PSI|
|Platen Pressure||118 PSI|
|Cylinder||6" Bore, 4" Rod, 48" Stroke|
|Motor||15 HP TEFC|
|Hydraulic Tank Capacity||22 Gallons|
|Electrical Power||208 /230 /480 Volt, 3 PH|
|Bale Ejection||Semi-Automatic (Chain)|
|Bale Tying||Wire or Twine|
|Optional Liquid Reservoir||50 Gallon (Accepts a 2" Pipe Coupler)|
30" Super High Density Baler Dimensions
|Chute Door Opening||30" W x 14 H"|
|Depth (including Reservoir)||37"|
|Overall Width (excluding Reservoir)||84" (Add additional 12" with Liquid Draining Pkg)|
|Depth with door open||85"|
|Actual Weight||3,350 Pounds|
|Installation and Operating Area||40 Square Feet|
|Other Options:||Sump Pump System; Single Phase Power|
Note: Specifications, Dimensions & other product details may vary slightly upon delivery due to continuous product progressions and improvement. If exactness is required on any item(s), confirm in writing before ordering. In our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications, dimensions and other product details without notice.
Performance may vary depending upon application.
Products must be installed and operated according to required standards, codes, regulations and safety procedures.
