HIGH SPEED BALER - 72" VERTICAL
This 72" baler compresses it's bales at a high speed rate. If your processes are fast and efficient and you need a baler to produce at the same speeds to keep up, then this baler is your answer. This balers speed and efficiency can handle most high rate production needs.
72-HSVB - 72" HIGH SPEED VERTICAL BALER
Request Automated Response with general pricing - (Secure)
Request Info on Multiple Products - (Secure Area)
Whenever high speed is important, this FAST Baler can make it happen. This 72" high speed workhorse baler combines speed with efficiency for any high production applications. It offers awesome force with two 5" heavy duty cylinders and a 20 HP motor for achieving fast speeds.
Other Standard Features of this 72" High Speed Vertical Baler (Model 72-HSVB):
- The powerful twin 5" cylinders with heavy duty rods produce very dense bales
- Unique hydraulic circuit for high speed applications
- Standard retractable bale dogs for maximum containment of material
- Standard voltage electrical disconnect included
- Enclosed counterbalance for lifting ease of the upper door
- Dual hydraulic ejection for bales that are extra dense
- No fluffing or pre-processing of material is required
- Operates under a 10 foot ceiling
- Six slots for tying bales
Comparison Chart on 72" Vertical Balers
72" High Speed Vertical Baler Specifications |
|
| Bale Size: | 40" x 72" x 39" Height |
| Bale Weight: | Corrugated: Up to 1,100 lbs. |
| Ram Pressure: | 98,125 lbs. |
| Twin Cylinders: | 5 " Bore, 3" Rod; 28" Stroke |
| Motor / Electrical: | 20 HP; 3 PH; 60hz 3,450 rpm TEFC; 208/230/460 |
| Cycle Time: | 24 Seconds |
| Pump: | Vane Type |
| Overall Height: | 111" |
| Width | 101" |
| Depth (with Door Open) | 93" |
| Loading Door Height: | 47" |
| Door Opening: | 28" x 72" |
| Ejection | Hydraulic |
| Bale Tying: | Wire or Banding |
| Shipping Height: | 88" |
| Shipping Weight: | 6,400 lbs. |
| Req. Installation & Operating Area: | 69 S.F. |

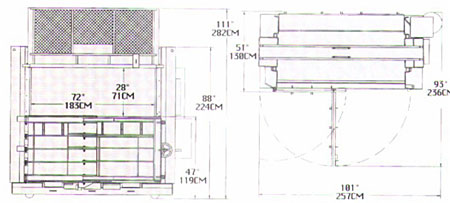

72" High Speed Vertical Baler Diagram - (72-HSVB)
Note: Specifications, Dimensions & other product details may vary slightly upon delivery due to continuous product progressions and improvement. If exactness is required on any item(s), confirm in writing before ordering. In our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications, dimensions and other product details without notice.
Performance may vary depending upon application.
Products must be installed and operated according to required standards, codes, regulations and safety procedures.
