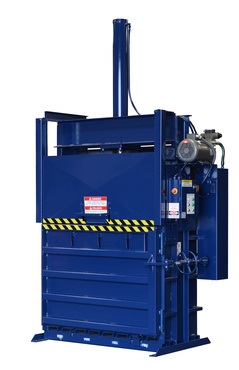

60" FOOD CAN & TEXTILE BALER
Baling textiles or food containers is a breeze with this Food Can & Textile baler. Many textiles are recyclable including bed linens, towels, and clothes. In order to transport large quantities of textiles, baling has become a necessity. This baler will compact your textiles into an extremely compact and easy-to-transport baled cube.
Containers and cans that food has been stored in usually must be compacted and baled in order to save space in back rooms of kitchens, cafeterias, schools and other facilities, saving space, money and in many cases making income from recycling the cans and containers.
60V-2748 - FOOD CAN & TEXTILE BALER
Request Automated Response with general pricing - (Secure)
Request Info on Multiple Products - (Secure Area)
This 60" Extra High Density Baler is Ideal for Facilities (such as Correctional Facilities) that are processing a large amount of # 10 Food Cans as well as those who are wanting to bale clothing / textiles where the volume does not warrant a conveyor and automated rear chute.
Comparison Chart on 60" Vertical Balers
Read
about Balers
Click
here to check out the different balers and the bale weights they produce on
various materials
60" Food Can & Textile Baler Performance Information |
|||
Bale Size 60V-2748-BS |
30” x 48” x 60” |
||
Bale Volume 60V-2748-BV |
50 Cubic Feet |
||
Cycle Time 60V-2748-CT |
55 Seconds (No Load) |
||
Estimated Bale Weights |
|||
Material |
Bale Weight |
Density Lbs/Cu Ft Loose / Baled |
Bales / Hr |
Food Cans (#10 cans) |
Up to 1,000 Lbs |
2.5 / 20 |
Up to 2 |
Clothes / Textiles |
Up to 1,200 - 1,400 Lbs |
6.5 / 32 |
Up to 3 |
OCC – Cardboard |
Up to 1,100 Lbs |
2.5 / 24 |
Up to 2 |
Shredded ONP - Newspaper |
Up to 1,200 Lbs |
4 / 26 |
Up to 2 |
UBC – Aluminum Cans |
Up to 500 Lbs |
1 / 11 |
Up to .50 |
Steel Cans |
Up to 1,000 Lbs |
6.5 / 32 |
Up to .50 |
Note: Performance Rates, Bale Weights, and Bale Densities are subject to many factors such as Material Pre-Bale Densities, Feed rates, Moisture Content and other variables. |
|||
*60" Food Can & Textile Baler Hydraulics |
|
Main Pumps 60V-2748-MP |
12.9 GPM - Fixed Volume Vane |
System Pressure 60V-2748-SP |
2600 PSI Maximum |
Main Cylinder 60V-2748-MC |
7” Bore, 4.5” Rod, 48” Stroke |
Ram Face Pressure 60V-2748-FP |
61.61 PSI |
Overall Platen Force 60V-2748-PF |
100,048 Lbs |
Oil Reservoir 60V-2748-OR |
41 Gallon Capacity |
Hydraulic Manifold 60V-2748-HM |
D08 Pattern, Internal Relief Valve Subplate Circuit |
60" Food Can & Textile Baler Electrical |
|
Main Motor 60V-2748-MM |
20 HP - 208/230/460v – 3 Phase |
Enclosure 60V-2748-EN |
NEMA 12 - Rated |
Controls 60V-2748-CL |
UL / CUL Listed |
Motor Type 60V-2748-MT |
TEFC High Efficiency |
*60" Food Can & Textile Baler - Dimensions & Structural |
|
Overall Height 60V-2748-H |
143 |
Overall Width 60V-2748-W |
80 |
Overall Depth 60V-2748-D |
55 |
Depth with Door Open 60V-2748-DO |
102 |
Frame Design 60V-2748-FD |
10” Channel Side Rails - 12” Channel Headers |
3” x 3” Tube Steel Discharge Door Supports |
|
Solid Door Charge |
|
8 Pieces of 4” Channel in Sub Floor |
|
Feed Opening 60V-2748-FO |
27” x 60” Charge Dimensions 23” x 60” |
Weight 60V-2748-WT |
5,800 lbs |
*Other Features of the 60" Food Can & Textile Baler |
|
| 60V-2748 | UL Listed Controls - Electrical Panel and Control Assembly |
| 60V-2748 | Product meets or exceeds all ANSI Z245.5 and OSHA standards. |
| 60V-2748 | Product has NEMA 12 |
| 60V-2748 | Bale Height Adjustable |
| 60V-2748 | Safety Interlock Circuit on Bale Door & Safety Gate |
| 60V-2748 | Counterbalanced Feed Door for Easy Open |
| 60V-2748 | 3 – 6” Retainer Bale Dogs Front and Back |
| 60V-2748 | Soft Shift, Low Shock Hydraulic Circuit |
| 60V-2748 | Dual Chain Bale Ejection System |
| 60V-2748 | Platen Roller Guides |
| 60V-2748 | Spring Doors |
| 60V-2748 | Factory Wired for Easy Installation |
| 60V-2748 | Extra reinforced framing |
*Other Options 60" Food Can & Textile Baler |
|
Option # |
Description |
60V-2748-01 |
Slotted Discharge Door |
60V-2748-02 |
Other HP Motor (Single Phase Motor only available on 10 HP Balers) |
60V-2748-03 |
Front Load – Rear Eject |
60V-2748-04 |
Oil Heater |
60V-2748-05 |
Special Voltage – 575V |
60V-2748-06 |
Sharks Teeth |
60V-2748-07 |
Weatherproof |
60V-2748-08 |
Drum Crusher |
60V-2748-09 |
Extra Heavy Duty Package (Heavily beefed up Frame etc) |
| 60V-2748-10 | Special Paint Color |
| 60V-2748-11 | Automated Rear Chute without Conveyor |
| 60V-2748-12 | Automated Rear Chute with Conveyor |
60" Food Can & Textile Baler Diagram - 60V-2748
A = 68" B = 80" C = 54" D = 108" E = 143" F = 55" G = 102" H = 76" I = 54"
Note: Specifications, Dimensions & other product details may vary slightly upon delivery due to continuous product progressions and improvement. If exactness is required on any item(s), confirm in writing before ordering. In our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications, dimensions and other product details without notice.
Performance may vary depending upon application.
Products must be installed and operated according to required standards, codes, regulations and safety procedures.
