Stationary Compactor - 5 Cubic Yd |
|
|
(Model 5000-ST)
|
![]() |
|
|
Model 5000-ST Stationary Compactor – Specifications |
||
|
Charge Box Capacity |
5 YD |
|
|
Clear Top Opening |
85 X 60 |
|
|
Cycle Time |
80 seconds |
|
|
Total Force - Normal |
64,600 |
|
|
Total Force - Maximum |
76,000 |
|
|
Total Face Pressure - Normal |
36 psi |
|
|
Total Face Pressure – Maximum |
43 psi |
|
|
Ram Penetration |
14” |
|
|
Motor |
20 HP |
|
|
Cylinder Bore |
7” |
|
|
Cylinder Stroke |
100” |
|
|
Cylinder Rod |
4.5 |
|
|
Operating Pressure – Normal |
1700 psi |
|
|
Operating Pressure – Maximum |
2000 psi |
|
|
Unit Weight |
12,000 lbs |
|
|
Construction |
|
|
|
|
Floor |
3 / 4 Plate |
|
|
Sides |
3 / 8 Plate |
|
|
Breaker Bar |
8 x 6 x 1.5 Angle |
|
|
Ram Face |
3 / 4 Plate |
|
|
Ram Top |
3 / 8 Plate |
|
|
Ram Sides |
3 / 8 Plate |
|
|
Ram Bottom |
1 / 2 AR Plate |
|
Model 5000-ST Stationary Compactors - Dimensions |
|
|
Overall Height |
55” |
|
Overall Width |
78” |
|
Overall Length |
220” |
|
Charge Box Width |
69” |
|
Charge Box Length |
96.5” |
OTHER STANDARD FEATURES:
•
Model 5000-ST >> Key Start -
Push Button - Control Station mounted on 15' Sealite
•
Model 5000-ST >>
Right or left side mounted power unit
•
Model 5000-ST >>
Power unit weather cover
•
Model 5000-ST >>
NEMA 4 weather proof gasket control panel
•
Model 5000-ST >>
UL listed control panel
•
Model 5000-ST >>
Product
meets or exceeds ANSI Z245.5 and OSHA Standards
•
Model 5000-ST >>
Override - Packout - Hydraulic Pressure Boost
|
Model 5000-ST Stationary Compactors - Options |
Model 5000-ST >> Dual Cylinder |
Model 5000-ST >> Additional Keyed Start / Stop Remote Push Button Station on 15’ Sealite |
|
Model 5000-ST >> 75% Full Advanced Warning Light |
|
Model 5000-ST >> 575 v Motor |
|
Model 5000-ST >> Multi-Cycle Timer |
|
Model 5000-ST >> Low Oil / High Temp Light |
|
Model 5000-ST >> Oil Heater |
|
Model 5000-ST >> 3-Sided Hopper (Left or Right Feed) |
|
Model 5000-ST >> 4-Sided Top Hopper |
|
Model 5000-ST >> 5’ Guide Island |
|
Model 5000-ST >> Remote Control Panel with 20’ Hydraulic Hose ($8 / ft) |
|
Model 5000-ST >> Remote Power Unit |
|
Model 5000-ST >> Weatherproof Control Panel |
|
Model 5000-ST >> Walk on Dock Mounts with 42” Hopper & Hand Rails |
|
Model 5000-ST >> Drive on Dock Mounts with 42” Hopper & Hand Rails |
|
Model 5000-ST >> Walk-On Dock Mounts with Safety Gate Hopper & Hand Rails |
Model 5000-ST >> Drive-On Dock Mounts with Safety Gate Hopper & Hand Rails |
|
Model 5000-ST >> 3’ Drive on Dock Extension |
|
Model 5000-ST >> Kick Plate |
|
Model 5000-ST >> 60” – 10,000 lb Drive on Dock Upgrade – Additional Price |
|
Model 5000-ST >> 90” – 10,000 lb Drive on Dock Upgrade – Additional Price |
|
Model 5000-ST >> Hand Rails Only (+/-) |
|
Model 5000-ST >> Interlock for Safety Gate |
|
Model 5000-ST >> Rigid Breaker Bar |
|
Model 5000-ST >> 15 HP Tri-Volt Motor |
|
Model 5000-ST >> 20 HP Upgrade (from 15 HP) |

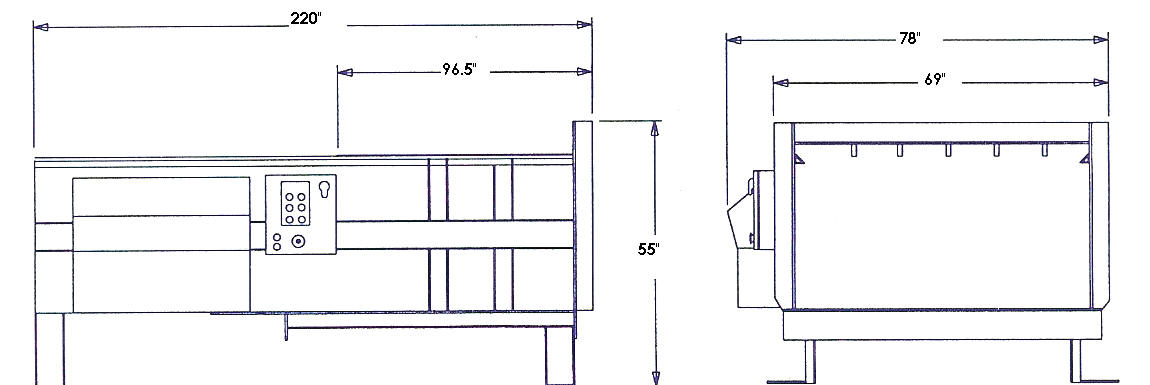

Model 5000-ST Stationary Compactors - Dimension Diagram

• Continuous Product improvement is our policy. Therefore, in our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications without notice.
• Performance may vary
depending upon application.
• Products must be installed and operated according to required standards,
codes, regulations and safety procedures.
|
