Stationary Compactors
- 2 Yard | |
| (Model 2-STXD)
|
| 2-STXD Specifications | |
| Charge Opening | 60" x 42" (1525mm x 1070mm) |
| Ram Face | 59 3/4" x 29" with 1/2" Plate (1518mm x 737mm x 13mm) |
| Floor | 1/2" Plate (13mm) |
| Sides 1/4" Plate | 3/16" Plate with 6"Channel |
| Breaker Bar | 6" x 6" x 5/8" Boxed Angle |
| Ram Penetration | 12" (305mm) |
| Cylinder | Twin 5" Bore, 54" Stroke, 3" Rod |
| Ram Force | 94,200lbs. Max (54.0 PSI) |
| Cycle Time | 72 Seconds |
| Motor | 15 HP 208/230/460Volt, TEFC |
| Pump | 12 GPM |
| Oil Capacity | 60 Gallons (227L) |
| Loading Height | 48" (1220mm) |
| Overall Height | 55" (1400mm) |
| Length | 124" (4040mm) |
| Width | 75" (1919mm) |
| Shipping Weight | 5,100 lbs. |
A
variety of options such as:
• Enclosed Doghouse With Door and Safety Interlock
• Enclosed Doghouse for Chutes
• Side Loading Hopper
• Rear Loading Hopper with 42" lip, railing and walk-on ramp, with 18" extension
• Above with gate & security interlock switch
• Security Door & Frame
• Remote Control with 13' Cord
• Reservoir Oil Heater
• Power Unit Weather Cover
• 10 HP Single Phase Motor & Pump Assembly

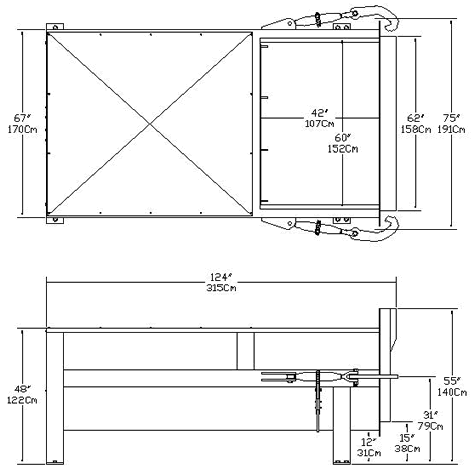

Dimensions:
• Continuous Product improvement is our policy. Therefore, in our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications without notice.
• Performance may vary
depending upon application.
• Products must be installed and operated according to required standards,
codes, regulations and safety procedures.
|
