Stationary Compactors - 2 Cubic Yd |
|
Model 2000-ST
|
 |
 |
Note: Our Compactors Preliminary Considerations Checklist may be helpful
Jump to Stationary Compactors Overview Page showing all Models
| Model 2000-ST Stationary Compactor – Specifications | ||
| Charge Box Capacity | 2 YD | |
| Clear Top Opening | 40.5 X 60 | |
| Cycle Time | 57 seconds | |
| Total Force - Normal | 47,600 | |
| Total Force - Maximum | 56,000 | |
| Total Face Pressure - Normal | 27 psi | |
| Total Face Pressure – Maximum | 31 psi | |
| Ram Penetration | 14” | |
| Motor | 10 HP | |
| Cylinder Bore | 6” | |
| Cylinder Stroke | 55” | |
| Cylinder Rod | 2.5 | |
| Operating Pressure – Normal | 1700 psi | |
| Operating Pressure – Maximum | 2000 psi | |
| Unit Weight | 4100 lbs | |
| Construction |
| |
|
| Floor | 1 / 2 Plate |
|
| Sides | 1 / 4 Plate |
|
| Breaker Bar | 8 x 6 x 1 Angle |
|
| Ram Face | 1 / 2 Plate |
|
| Ram Top | 1 / 4 Plate |
|
| Ram Sides | 1 / 4 Plate |
|
| Ram Bottom | 1 / 2 AR Plate |
| Model 2000-ST Stationary Compactors - Dimensions | |
| Overall Height | 55” |
| Overall Width | 78” |
| Overall Length | 117” |
OTHER STANDARD FEATURES:
•
Model 2000-ST>> Key Start - Push Button - Control Station mounted on 15' Sealite
•
Model 2000-ST>> Right or left side mounted power unit
•
Model 2000-ST>> Power unit weather cover
•
Model 2000-ST>> NEMA 4 weather proof gasket control panel
•
Model 2000-ST>> UL listed control panel
•
Model 2000-ST>> Product meets or exceeds ANSI Z245.5 and OSHA Standards
•
Model 2000-ST>> Override - Packout - Hydraulic Pressure Boost
| Options |
Model 2000-ST>> Dual Cylinder |
Model 2000-ST>> Additional Keyed Start / Stop Remote Push Button Station on 15’ Sealite |
| Model 2000-ST>> 75% Full Advanced Warning Light |
| Model 2000-ST>> 575 v Motor |
| Model 2000-ST>> Multi-Cycle Timer |
| Model 2000-ST>> Low Oil / High Temp Light |
| Model 2000-ST>> Oil Heater |
| Model 2000-ST>> 3-Sided Hopper (Left or Right Feed) |
| Model 2000-ST>> 4-Sided Top Hopper |
| Model 2000-ST>> 5’ Guide Island |
| Model 2000-ST>> Remote Control Panel with 20’ Hydraulic Hose ($8 / ft) |
| Model 2000-ST>> Remote Power Unit |
| Model 2000-ST>> Weatherproof Control Panel |
| Model 2000-ST>> Walk on Dock Mounts with 42” Hopper & Hand Rails |
| Model 2000-ST>> Model 2000-ST>> Drive on Dock Mounts with 42” Hopper & Hand Rails |
| Model 2000-ST>> Walk-On Dock Mounts with Safety Gate Hopper & Hand Rails |
Model 2000-ST>> Drive-On Dock Mounts with Safety Gate Hopper & Hand Rails |
| Model 2000-ST>> 3’ Drive on Dock Extension |
| Model 2000-ST>> Kick Plate |
| Model 2000-ST>> 60” – 10,000 lb Drive on Dock Upgrade – Additional Price |
| Model 2000-ST>> 90” – 10,000 lb Drive on Dock Upgrade – Additional Price |
| Model 2000-ST>> Hand Rails Only (+/-) |
| Model 2000-ST>> Interlock for Safety Gate |
| Model 2000-ST>> Rigid Breaker Bar |
| Model 2000-ST>> 15 HP Tri-Volt Motor |
| Model 2000-ST>> 20 HP Upgrade (from 15 HP) |

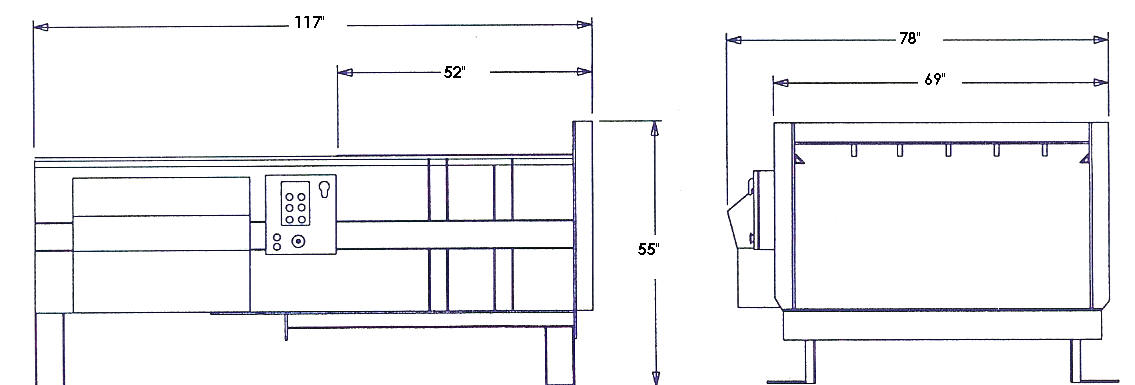

Model 2000-ST - Dimension Diagram
• Continuous Product improvement is our policy. Therefore, in our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications without notice.
• Performance may vary depending upon application.
• Products must be installed and operated according to required standards, codes, regulations and safety procedures.
|
