HIGH RISE COMPACTORS - (Variety of Hi-Rise Applications)

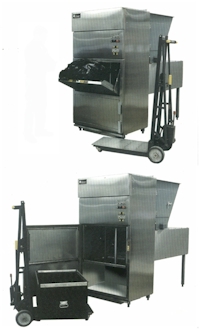

High Rise Apartment Trash Compactor



High Rise Apartment Trash Compactor

                          HIGH RISE COMPACTORS



Request Automated Response with general pricing:
IHR-50SF      IHR-40RF

Request Info on Multiple Products - (Secure Area)

This model of High Rise Compactors is best suited to help lower height and lower volume High Rise Building (with chute systems) reduce trash and waste disposal problems and costs.

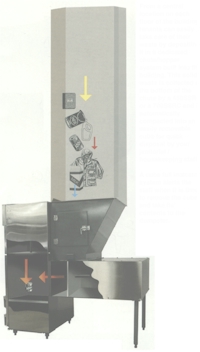

Waste flows from an existing chute system into a hopper that feeds the compactors.

When the compactors need to be emptied, A 'cube full' indicator system alerts the staff when it is time to remove the cube and take the contents to the dumpster.

In conjunction with the compactor, a liftcart can be utilized to easily transport, lift and dispose of the trash at the waste disposal area (so that staff does not 'feel' the weight).

Extra inside containers can be purchased so that empty container can be placed in the compactors while full containers are transported to the dumpster area.

Refer to Indoor Compactor Benefits for other advantages.



Helpful Articles for Deciding on High-Rise Compactors:

About Compactors
Industrial Trash Compactors
Waste Compactors- Reduce the Trash Burden
Trash Compactors - Not Glamorous But Very Useful
Trash Compactors - Purchase Considerations and Tips
Trash Compactors - Preliminary Considerations Checklist
Waste Generated by Industry & Building Type (in lbs)
Waste Generated by Industry & Building Type (in CY)

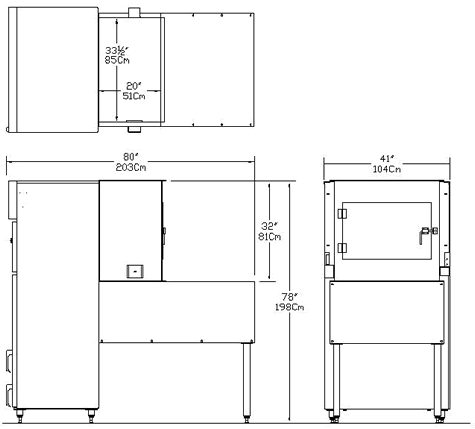

STANDARD FOOTPRINT COMPACTOR SPECIFICATIONS

High Volume High Rise Compacting System Specifications
Standard Footprint
IHR-50RF
Height 95 in
Width 52 in
Length 103 in
Length with Door Open 135 in (11.25 feet)
Square Footage Footprint (excludes any extra Buffer) 50 Sq
Charge Opening  25" x 30"
Loading Door Opening 24" W x 17" H
Cube Capacity 9 cu. ft.
Cube Eject Hydraulic
Reduction Ratio up to 10:1
Motor 5 HP TEFC
Ram Pressure Vertical 31,800 Lbs.
Rear Chute Ram Pressure 31,500 Lbs.
Hydraulic Eject Ram Pressure 14,137 Lbs.
Cycle Time 50 seconds
Main Cylinder Size - Vertical  (Twin Cylinders) (2) 4.5" Bore; 3" Rod; 33" Stroke
Rear Chute Cylinder Size - Horizontal (Twin) (2) 4" Bore; 2" Rod; 30.25" Stroke
Hydraulic Eject Cylinder Size 3" Bore; 2" Rod; 28.25" Stroke
Electric Power 230 V  1 Phase - 20 amp
Cube Tying Bag
Full Cube Weight up to 350 Lbs.
Shipping Weight Approx 4,000 Lbs.



REDUCED FOOTPRINT COMPACTOR SPECIFICATIONS

High Volume High Rise Compacting System Specifications
Reduced Footprint - IHR-40RF
Height 95 in
Width 52 in
Length 74 in
Length with Door Open 106 in (9 feet)
Square Footage Footprint (excludes any extra Buffer) 40 Sq
Charge Opening  22" x 29"
Loading Door Opening 24" W x 17" H
Cube Capacity 9 cu. ft.
Cube Eject Hydraulic
Reduction Ratio up to 10:1
Motor 5 HP TEFC
Ram Pressure Vertical 31,800 Lbs.
Rear Chute Ram Pressure 31,500 Lbs.
Hydraulic Eject Ram Pressure 14,137 Lbs.
Cycle Time 45 seconds
Main Cylinders Size - Vertical    (Twin Cylinders) (2)  4.5" Bore; 3" Rod; 33" Stroke
Rear Chute Cylinders Size - Horizontal    (Twin) (2)  3" Bore; 2" Rod; 18.25" Stroke
Hydraulic Eject Cylinder Size 3" Bore; 2" Rod; 28.25" Stroke
Electric Power 230 V  1 Phase - 20 amp
Cube Tying Bag
Full Cube Weight up to 350 Lbs.
Shipping Weight Approx 4,000 Lbs.


Note: Specifications, Dimensions & other product details may vary slightly upon delivery due to continuous product progressions and improvement. If exactness is required on any item(s), confirm in writing before ordering. In our efforts to provide products with the most up to date engineering and design, we reserve the right to change specifications, dimensions and other product details without notice.

Performance may vary depending upon application.

Products must be installed and operated according to required standards, codes, regulations and safety procedures.
